Description

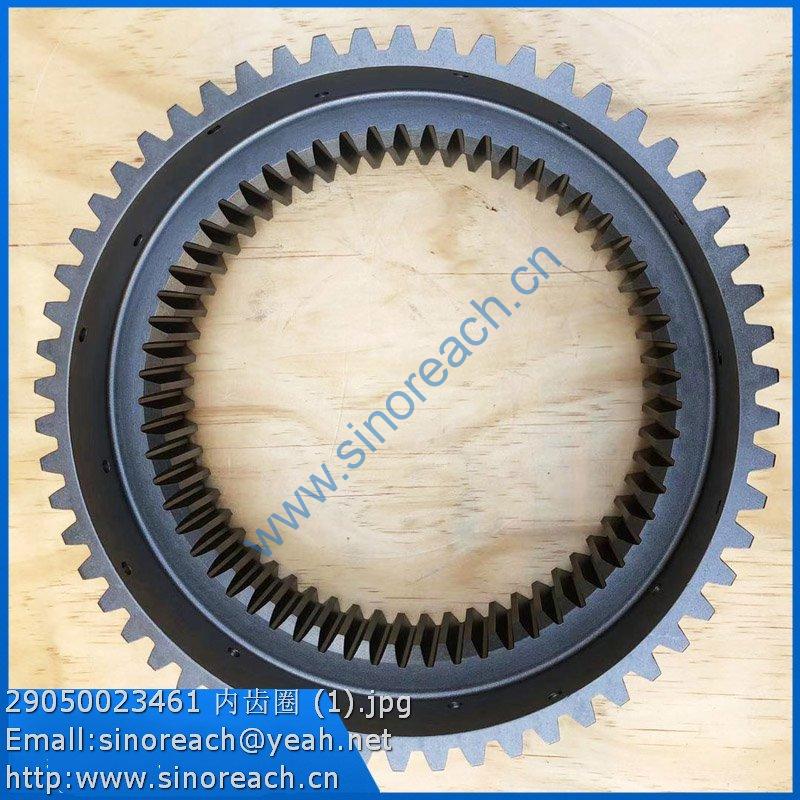

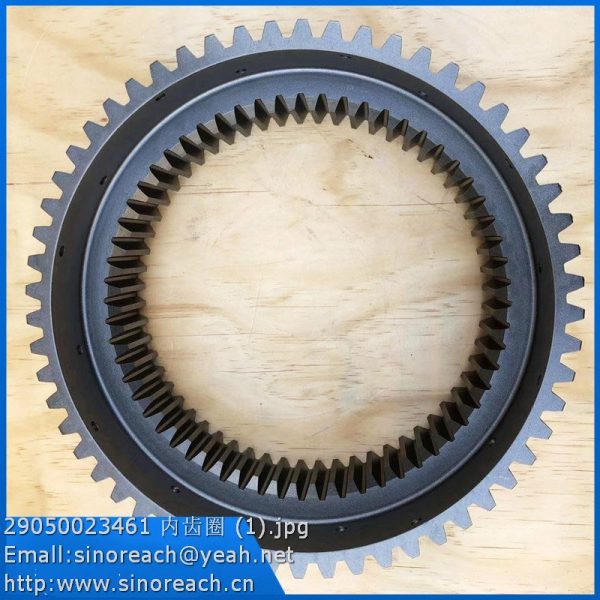

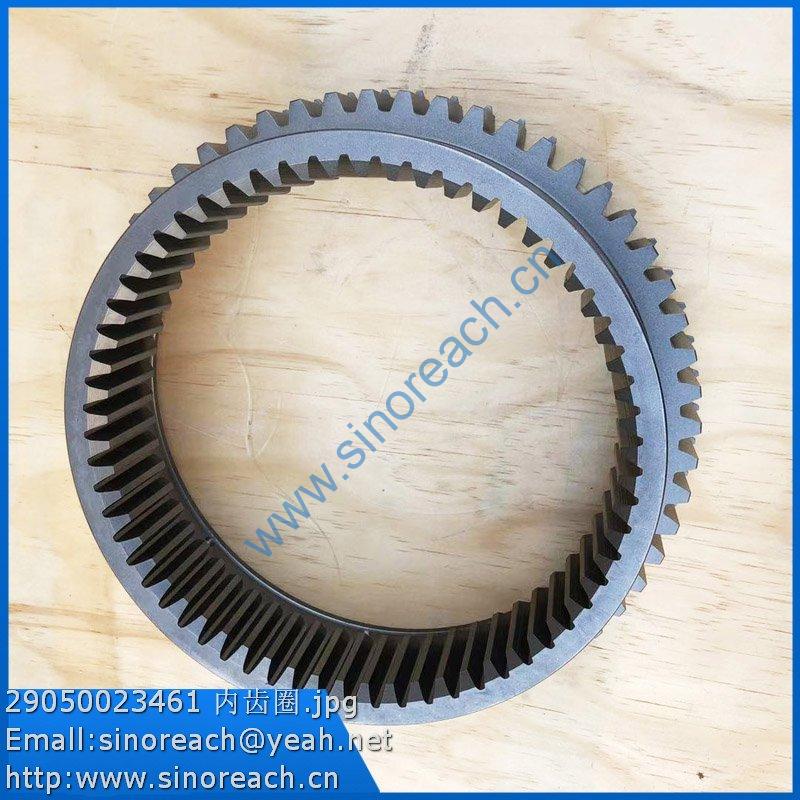

29050023461 inner gear ring

3050900203 REAR LARGE SPRIAL BEVELGEAR
2050900079 LEFT 、RIGHT CASE DIFFERENTIAL MECHANISM
29070013031 ADJUSTING SHIM
29070013041 ADJUSTING SHIM
E7-2907000108 FINAL DRIVE ASSEMBLY（REAR AXLE）
29070000541 SPACER
29070000551 RETAINER RING
29070000561 PLANET GEAR
4090000004 ROLLER GB309-5*45-GCR15
29070000081 RIM NUT
29070000621 RIM BOLT
29070001281 DIFFERENTIAL AXLE
4013000203 NUT GB6171-M20*1.5EpZn-10
4015000030 WASHER GB93-20-65Mn
29070001241 HUB WHEAL
29070007611 PLANET PINION CARRIER
4090000008 STEEL BALL GB308-9.525-GCR15
29070000611 PLANET PINION SHAFT
4120000080 PLUG Q/ZB286-ZG3/4″-Q235A
4090000006 STEEL BALL GB308-17.462-GCr15
29070009161 LOCK BLOCK
29070000511 GEAR-SUN
4015000022 RETAINER RING GB894.1-52-65Mn
29070007621 COVER
4015000025 WASHER GB93-10-65Mn
4011000084 BOLT GB5783-M10*30EpZn-8.8
4014000016 SCREW GB70-M10*1*20EpZn-8.8
29070000571 ROUND NUT
29070000481 AXLE RING GEAR
4041000020 O-RING LGB308-440*3.5
4021000037 BEARING GB297-32221
4021000033 BEARING GB297-32024
29070001261 ISOLATED BUSHING
4030000047 OIL SEAL HG4-692-PD150*180*16
29070001271 SPACER
29070001231 COVER OF OIL SAL
4015000036 WASHER GB93-8-65Mn
4011000298 BOLT GB5782-M8*45EpZn-8.8
E8-4120001739 DISK BRAKE(371328)
4120001739001 RUBBER COVER JS-ZL50-001
4120001740 VENT NOZZLE
4120001739003 O-RING 16*2.4 JS-ZL50-014
4120001739004 O-RING 20*2.4 JS-ZL50-015
4120001739005 EXTERNAL PLIERS JS-ZL50-003
4120001739006 DUST CAP JS-ZL50-004
4120001739007 RETAINER RING JS-ZL50-005
4120001739008 SQUQRE SEAL JS-ZL50-006
4120001739009 PISTON JS-ZL50-007
4120001739010 BOLT PIN JS-ZL50-008
4120001739011 INTERNAL PLIERS JS-ZL50-009
4016000101 SPLIT PIN
4120001739013 BOLT M22（10.9）JS-ZL50-010
4015000087 WASHER GB93-22-65Mn
4120001739015 CONNECTOR JS-ZL50-011
4120001739016 BRAKE SHOE JS-ZL50-012
4120001739017 DUST CORK JS-ZL50-013
F1-2912001717 HYDRAULIC CONTROL ASSEMBLY
4120002432 CONTROL VAVLE DFS-32-17
29120009141 MOUNTED PLATE OF MULTIPLE UNIT VALVE
4041000774 PLUG LGB13501421
4041000767 O-RING LGB168-11124
4011000477 BOLT GB16674-M12*35EpZn-8.8
4013000011 NUT GB6170-M12 EpZn-8
4015000168 WASHER GB97.1-12EpZn-300HV
29120017371 OIL INPUT BLOCK OF CONTROL VAVLE
4030000029 O-RING GB3452.1-37.5*3.55G
4011000136 BOLT GB16674-M10*85EpZn-8.8
29120017401 OIL INPUT PIPE OF CONTROL VAVLE
4041000056 FLANGE LGB117-312550
4011000475 BOLT GB16674-M10*30EpZn-8.8
29120009161 RENTURN TUBE OF MULTIPLE UNIT VALVE
4011000058 BOLT GB5782-M12*175EpZn-8.8
4011000056 BOLT GB5782-M12*145EpZn-8.8
4011000230 BOLT GB16674-M10*65EpZn-8.8
4030000031 O-RING GB3452.1-42.5*3.55G
29120015312 CABLE SHAFT
4041001386 PIPE LGB161-014147
4041000011 FLANGE LGB117-314650
4030000130 O-RING GB3452.1-47.5*3.55G
4011000479 BOLT GB16674-M12*30EpZn-8.8
4120001962 CONTROL SYSTEM LG12-952CZJG02
29120009111 COVER SHEET
4011000455 BOLT GB16674-M8*25EpZn-8.8
29120000071 PIN
4016000035 SPLIT PIN 4*20
F13-4120002432 CONTROL VAVLE
4016000035 SPLIT PIN 4*20
4015000320 WASHER GB97.2-12-300HV
4120002432403 PIN DF-32-01
4120002432404 VALVE BODY GDF-32-01
4030000265 O-RING GB3452.1-28.0*3.55G
4120002432405 WASHER GDF-32-02
4120002432406 VALVE STEM GDF-32-03C
4120002432407 DUST PROOF RING CK28
4120002432408 SCREW M6*11
4120002432409 PLATE GDF-32-05
4120002432410 SEAT GDF-32-05
4030000757 O-RING GB3452.1-31.5*3.55G
4120002432411 VALVE STEM GDF-32-06C
4120002432412 CHECK VALVE SPRING GDF-32-07
