Description

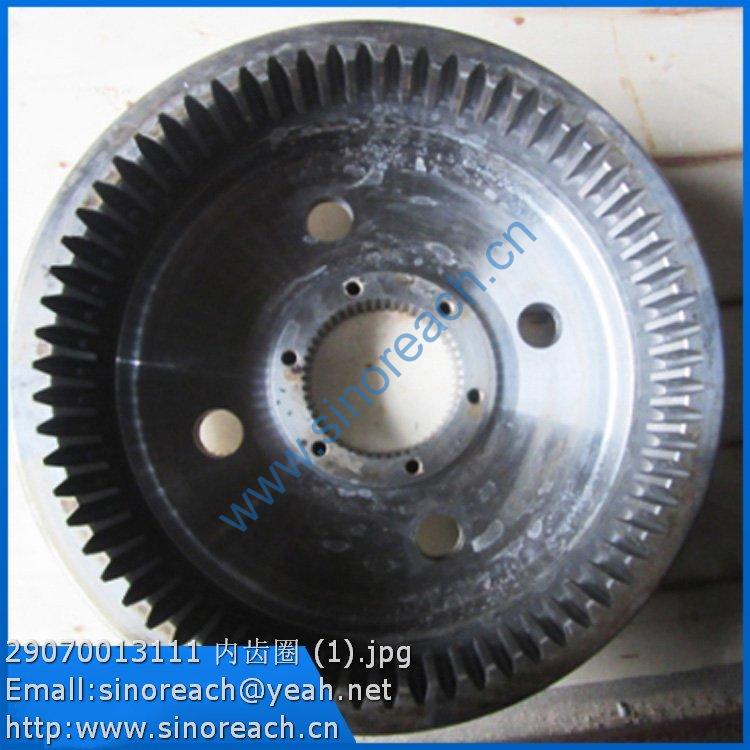

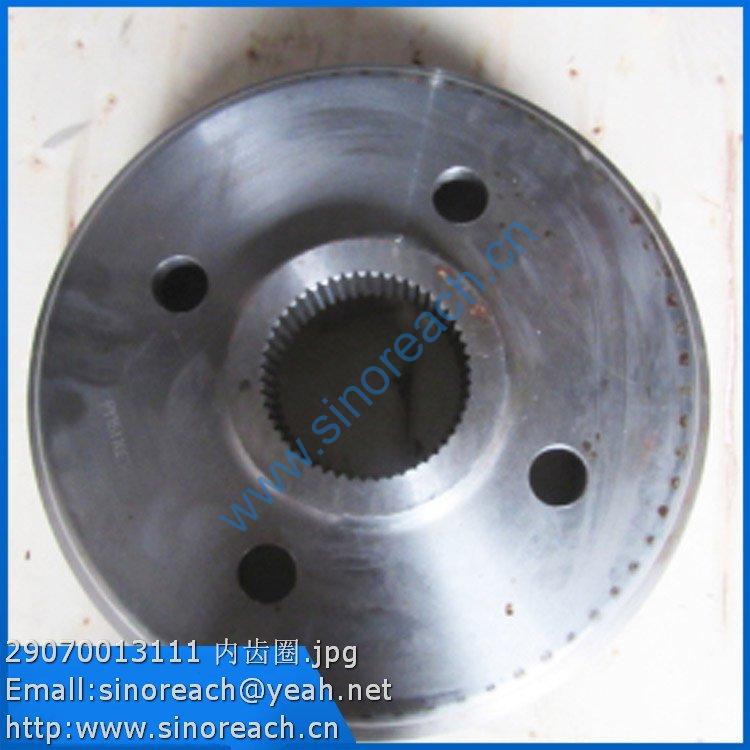

29070013111 inner gear ring
29070013111 inner gear ring
C3-2030900027 3RD SHAFT ASS’Y
4021000013 BALL BEARING GB276-6016
3030900110 SEAL
3030900178 2nd STAGE INPUT
3030900111 SEAL
4021000040 THRUST BALL BEARING GB301-51111
3030900177 1ST STAGE GEAR INPUT
4021000023 BEARING GB276-6311
C4-2030900026 4TH SHAFT ASS’Y（Ⅰ）
7200000462 AXIS ASSEMBLY
3030900168 ISOLATED BUSHING
4015000017 RING SNAP GB893.1-90-65Mn
4021000011 BALL BEARIN GB276-6010
3030900139 PISTION
3030900143 EXTERNAL SEAL RING
3030900163 INTERNAI SEAL RING
3030900170 BOLT M8*14
4015000036 WASHER GB93-8-65Mn
3030900160 REVERSE PLANET SPINDLE
3030900162 STOP WASHER
3030900147 SPACER
3030900148 PLANET
3030900154 RIONG SNAP
4090000001 ROLLER GB309-4*35-GCr15
3030900171 CARRIER OF REVERSE ASS’Y
3030900140 REVERSE FIRST SPEED DRIVEN DISK
2030900028 REVERSE FIRST SPEED DRIVE DISK
3030900141 SPRING
3030900176 PIN
3030900161 ROUND PIN
2030900029 ISOLATED BRACKET
3030900142 SPRING PIN
3030900158 REVERSE RANGE GEAR-RING
3030900156 RIONG SNAP
3030900149 FIRST SPEED PLANET SPINDLE
3030900151 CARRIER OF THE FIRST RANGE PLANET GEAR
3030900150 LOCK PLATE
3030900153 GEAR-SUN
4021000019 BEARING GB276-6210N
4015000024 RETAINNER RING GB894.1-90-65Mn
3030900152 CONNECTING DISH FOR THE DIRECT RANGE
4015000026 WASHER GB93-12-65Mn
4011000125 BOLT GB5786-M12*1.25*35EpZn-8.8
3030900172 INTERNAL GEAR-RING ASSEMBLY FOR FIRST RANGE
3030900144 FIRST RANGE PISTION
3030900113 SEALING RING
3030900159 MOUNTING PLATE
3030900145 CYLINDER-HOUSING FOR THE FIRST RANGE
3030900146 SQUARE SEAL
7200000115 REVERSING PLANET CARRIER ASSENBLY
7200000114 ONE STEP PLANET CARRIER ASSENBLY
C6-2030900019 4TH SHAFT ASS’Y（Ⅱ）
4021000015 BALL BEARING GB276-6022
3030900112 PIN
3030900103 BACK DISK FOR THE SECOND SPEED
4013000162 NUT GB6170-M8-8
4015000036 WASHER GB93-8-65Mn
2030900020 DRIVE DISK ASS’Y FOR THE SECOND SPEED
3030900104 SHAFT FOR THE SECOND SPEED
3030900106 DRIVEN DISK FOR THE SECOND SPEED
4011000105 BOLT GB5783-M8*20EpZn-8.8
4021000016 BALL BEARING GB276-6204
4015000023 RIONG SNAP GB894.1-65-65Mn
3030900114 DISH SPRING
3030900107 PISTION
3030900113 SEALING RING
3030900115 PIN
3030900109 CYLINDER ASS’Y FOR THE SECOND SPEED
3030900108 OUTPUT GEAR OF THE INTER-SHAFT
4021000024 BALL BEARING GB276-6312
3030900111 SEAL
4090000011 STEEL WIRE GB343-1.2*1200-SZ
3030900105 BOLT M12X1.25X100
4015000026 WASHER GB93-12-65Mn
3030900110 SEAL
C7-2905001745 OUTPUT SHAFT ASSEMBLY
4011000084 BOLT GB5783-M10*30EpZn-8.8
29050011151 THRUST SPACER
29050011161 WASHER
4030000536 O-RING GB3452.1-122*3.55G
29050017481 OIL SEAL SEAT
4021000024 BALL BEARING GB276-6312
29050017461 OUTPUT SHAFT
3030900121 GAER OF THE OUT SHAFT
29050016931 circlip
4030000768 SEALING RING GB13871.1-FB070095-F
29050017471 PACKET
29050012731 ADJUST SHIM
29050012741 ADJUST SHIM
29050012751 ADJUST SHIM
29070000221 WASHER
4013000066 NUT GB889.2-M33*1.5-8
C8-4110000184 TRANSMISSION
4011000774 BOLT GB5782-M18*40EpZn-8.8
4110000184047 CONNECTING SEAT 403032-34
4011000052 BOLT GB5782-M10*75EpZn-8.8
4015000025 WASHER GB93-10-65Mn
4011000051 BOLT GB5782-M10*70EpZn-8.8
4110000184183 TRANSMISSION CONTROL VALVE ASS’Y 403700X2
