Description

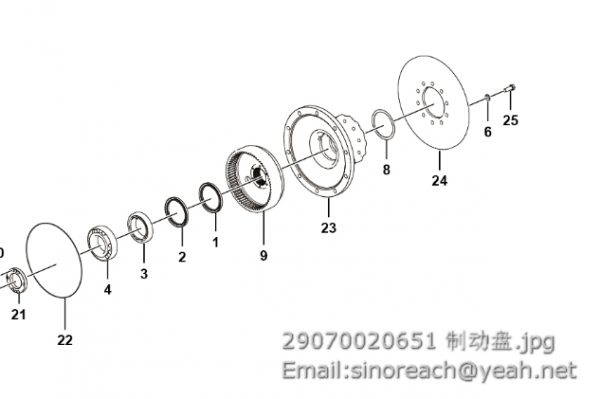

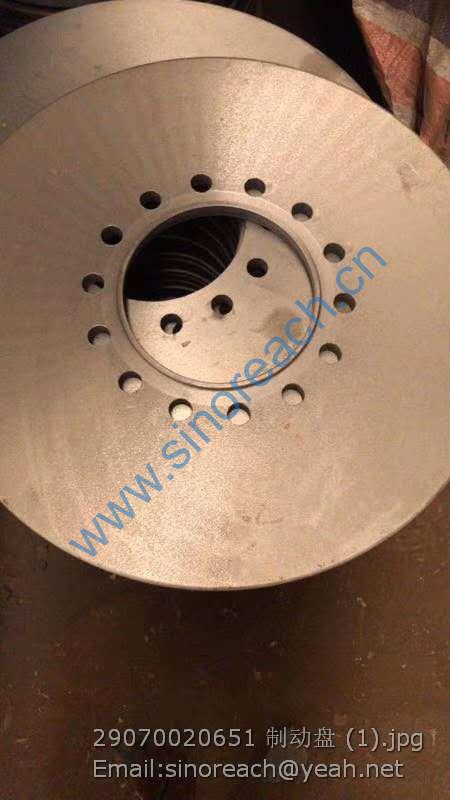

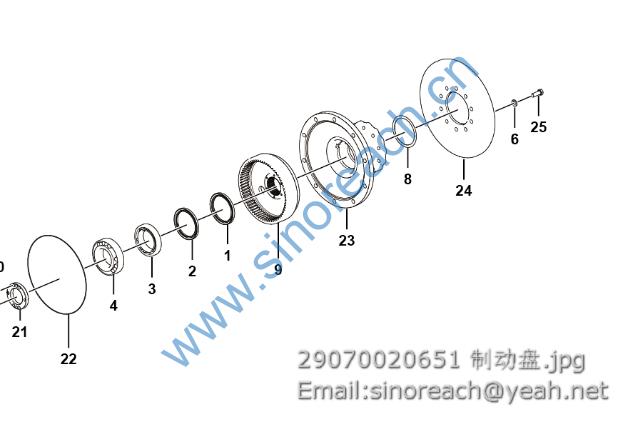

29070020651 BRAKE DISC on SDLG spare parts
| 3010900008 | 固定板 | MOUNTING PLATE |
| 4013000046 | 螺母 GB6172.1-M12EpZn-05 | NUT GB6172.1-M12EpZn-05 |
| 4015000168 | 垫圈 GB97.1-12EpZn-300HV | WASHER GB97.1-12EpZn-300HV |
| 3010900009 | 连接叉 | CONNECT FORK |
| 4016000138 | 销轴 GB882-B6*22EpZn-35 | PIN SHAFT GB882-B6*22EpZn-35 |
| 4016000114 | 销 GB91-2*16EpZn-Q235A | PIN GB91-2*16EpZn-Q235A |
| 4013000028 | 螺母 GB6170-M6EpZn-8 | NUT GB6170-M6EpZn-8 |
| 4015000035 | 垫圈 GB93-6-65Mn | WASHER GB93-6-65Mn |
| 4011000101 | 螺栓 GB5783-M6*20EpZn-8.8 | BOLT GB5783-M6*20EpZn-8.8 |
| 4120000096 | 油门踏板 ZY75-00 | ACCELERATOR PEDAL ZY75-00 |
| 2010900007 | 操纵软轴 | CABLE SHAFT |
| 4011000440 | 螺栓 GB5783-M6*40EpZn-8.8 | BOLT GB5783-M6*40EpZn-8.8 |
| 3010900054 | 螺栓轴 | BOLT SHAFT |
| 4016000120 | 开口销 GB91-2*12EpZn-Q235A | SPLINT PIN GB91-2*10EpZn-Q235A |
| 4015000207 | 垫圈 GB97.1-6EpZn-300HV | WASHER GB97.1-6EpZn-300HV |
| 4014000020 | 螺钉 GB75-M6*10EpZn-22H | SCREW GB75-M6*10EpZn-22H |
| 2010900304 | 操纵软轴 | CABLE SHAFT |
| 4015000203 | 垫圈 JB1002-24-T2 | WASHER JB1002-24-T2 |
| 3020900010 | 接头 | CONNECTOR |
| 2904000770 | 变速泵至滤清器油管 | OIL TUBE |
| 4110000357 | 滤清器 QF60M33G | OIL FILTER QF60M33G |
| 4011000107 | 螺栓 GB5783-M8*30EpZn-8.8 | BOLT GB5783-M8*30EpZn-8.8 |
| 4015000036 | 垫圈 GB93-8-65Mn | WASHER GB93-8-65Mn |
| 2904000771 | 滤清器至变速箱油管 | OIL TUBE |
| 4011000498 | 螺栓 GB5782-M12*45EpZn-8.8 | BOLT GB5782-M12*45EpZn-8.8 |
| 4015000026 | 垫圈 GB93-12-65Mn | WASHER GB93-12-65Mn |
| 2903000842 | 散热器至变矩器油管 | OIL TUBE |
| 2903000843 | 变矩器至散热器油管 | OIL TUBE |
| 2904000758 | 变速泵吸油管 | OIL TUBE |
| 2010900107 | 变速压力油管 | SHIFT PRESS VITTA |
| 3010900170 | 接头 | CONNECTOR |
| 4011000475 | 螺栓 GB16674-M10*30EpZn-8.8 | BOLT GB16674-M10*30EpZn-8.8 |
| 4030000024 | O 形圈 GB3452.1-26.5*2.65G | O-RING GB3452.1-26.5*2.65G |
| 3010900184 | 压盖 | COVER |
| 2904000753 | 钢管 | PIPE |
| 4011000527 | 螺栓 GB16674-M8*45EpZn-8.8 | BOLT GB16674-M8*45EpZn-8.8 |
| 4011000481 | 螺栓 GB16674-M8*30EpZn-8.8 | BOLT GB16674-M8*30EpZn-8.8 |
| 4030000025 | O 形圈 GB3452.1-25*3.55G | O-RING GB3452.1-25*3.55G |
| 4110000160 | 变矩器 YJSW315-2A | TORQUE CONVERTER YJSW315-2A |
| 4120000125 | 接头体 GB3733.2-G28-35 | CONNECTOR GB3733.2-G28-35 |
| 4030000229 | O 形圈 GB3452.1-22.4*2.65G | O-RING GB3452.1-22.4*2.65G |
