Description

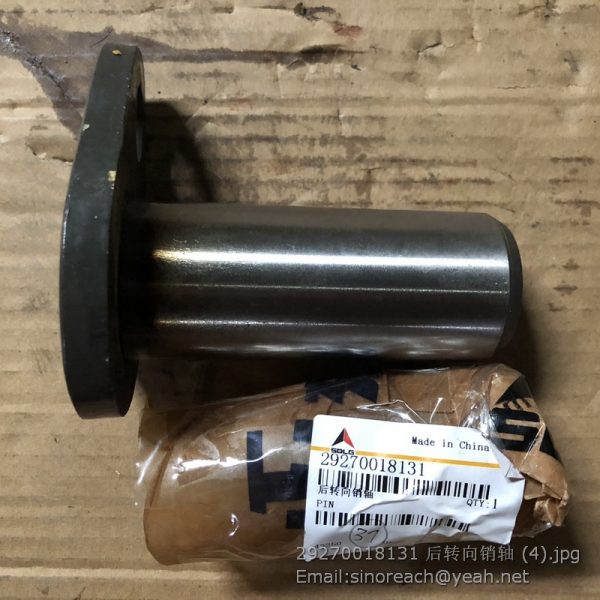

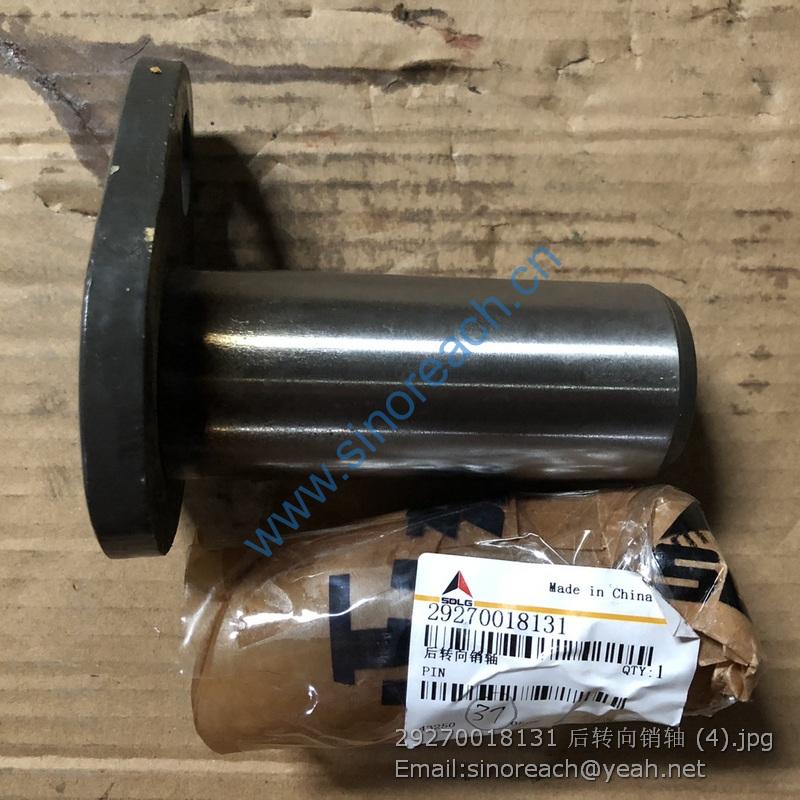

29270018131 PIN SDLG

1 29280010021 挂钩 Tensioning hook Y 1
2 29250000291 通油螺栓 Bolt Y 2
3 29250000301 垫片 Shim Y 6
4 29270009321 调整垫片 Shim Y 2
5 29270009311 调整垫片 Shim Y 2
6 29270001071 调整垫片 Shim Y 2
7 29270001061 调整垫片 Shim Y 2
8 29270001051 调整垫片 Shim Y 2
9 29270007831 套 Bushing Y 2
10 29270011581 焊接销轴 Pin Y 2
11 29270009101 走线胶套 Rubber sleeve Y 2
12 4030000065 油杯JB7940.1-M10*1 Lubricating nipple Y 4
13 29270007841 副车架 Rear axle bridge Y 1
14 29270016481 左盖板 Cover plate Y 1
15 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 8
16 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 8
17 29270000081 卡环 Lock ring Y 2
18 29270013881 锁定销轴 Pin Y 2
19 29270013891 锁定杆 Lock lever Y 1
20 29270025351 右盖板 Cover plate N 1
21 4040000001 垫圈LGB001-12 Washer Y 2
22 4011000087 螺栓GB5783-M12*20EpZn-8.8 Screw Y 2
23 4043001017 卡子胶条LGB320-U290 Sealing strip Y 1
24 4043001018 卡子胶条LGB320-U260 Sealing strip Y 1
25 4011000089 螺栓GB5783-M12*30EpZn-8.8 Bolt Y 2
26 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 2
27 29270018131 后转向销轴 Pin Y 2
28 4043000064 垫片LGB303-40*70*1 Shim Y 4
29 4043000325 垫片LGB303-40*70*2 Shim Y 4
30 29270014501 后输油管 Lubricating pipe Y 1

1 29040001021 变速箱至滤清器油管 Hose assembly Y 1
2 29050018471 接头体 Nipple Y 2
3 4030000013 O形圈GB1235-32*3.1 O-ring Y 2
4 4110000507 滤清器QF60M33G-1 Oil filter Y 1
5 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 2
6 29040007801 滤清器支架 Bracket Y 1
7 4011000107 螺栓GB5783-M8*30EpZn-8.8 Bolt Y 4
8 4015000036 垫圈GB93-8-65Mn Spring washer Y 4
9 29040001031 滤清器至变速箱油管 Hose assembly Y 1
10 4011000091 螺栓GB5783-M12*40EpZn-8.8 Bolt Y 12
11 4015000026 垫圈GB93-12-65Mn Spring washer Y 12

1 4110001544 空气滤清器SJXKL-M12 Breather assembly Y 1
2 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4
3 29050018011 接头总成 Nipple Y 1
4 4030001101 胶管JB8406-B16*1000 Hose Y 1
5 4017000011 喉箍JB8870-d32 Clamp Y 2
6 29050033161 A307B变速箱总成 Transmission Y 1
7 29050000031 变速泵吸油管总成 Hose assembly Y 1
8 4041000056 分体法兰LGB117-312550 Flange half Y 1
9 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 4
10 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 1
11 29050000091 管夹 Clamp Y 1
12 29050025781 加油管总成 Pipe Y 1
13 4190000010 检油塞LG03-JYS1/4″ Plug Y 1
14 29050022281 调整垫片 Shim Y 1
15 29050022291 调整垫片 Shim Y 1
16 29050022301 调整垫片 Shim Y 1
17 4110001544001 空气滤清器滤芯SJXKL-M12-H-02 Filter insert Y 1
18 29050018691 加油弯管 Tube Y 1
19 4017000007 喉箍JB8870-d60 Clamp Y 2
20 4120003121 胶管JB8406-B38*350 Hose assembly Y 1
21 29050025791 加油管 Hose assembly N 1
22 29050025721 加油管盖总成 Oil filler cap assembly Y 1
23 29050025942 连接链 Chain N 1

1 3030900103 直接档受压盘 Pressure disc Y 1
2 4021000015 滚动轴承GB276-6022 Ball bearing Y 1
3 3030900104 直接档轴 Shaft Y 1
4 4015000288 垫圈GB1230-12EpZn-45 Washer Y 12
5 3030900105 螺栓 Screw Y 12
6 2030900020 直接档主动片 Friction disc Y 2
7 3030900106 直接档从动片 Friction disc Y 1
8 4011000723 螺栓GB5783-M8*20-8.8 Bolt Y 12
9 3030900107 直接档活塞 Piston Y 1
10 3030900108 中间输出齿轮 Gear Y 1
11 3030900109 直接档油缸 Clutch cylinder Y 1
12 3030900115 销 Pin Y 3
13 4021000016 滚动轴承GB276-6204 Ball bearing Y 1
14 3030900110 旋转油封 Sealing ring Y 1
15 4021000024 滚动轴承GB276-6312 Ball bearing Y 1
16 3030900111 旋转油封 Sealing ring Y 1
17 3030900112 销 Pin Y 6
18 29050020931 调整垫片 Shim Y 1
19 29050020511 调整垫片 Shim Y 1
20 29050020501 调整垫片 Shim Y 1
21 29050020491 调整垫片 Shim Y 1
22 3030900113 密封环 Sealing ring N 1
23 3030900114 碟形弹簧 Spring ring Y 1
24 4015000036 垫圈GB93-8-65Mn Spring washer Y 12
25 4013000162 螺母GB6170-M8-8 Nut Y 12
26 4015000023 挡圈GB894.1-65-65Mn Retaining ring Y 1
