Description

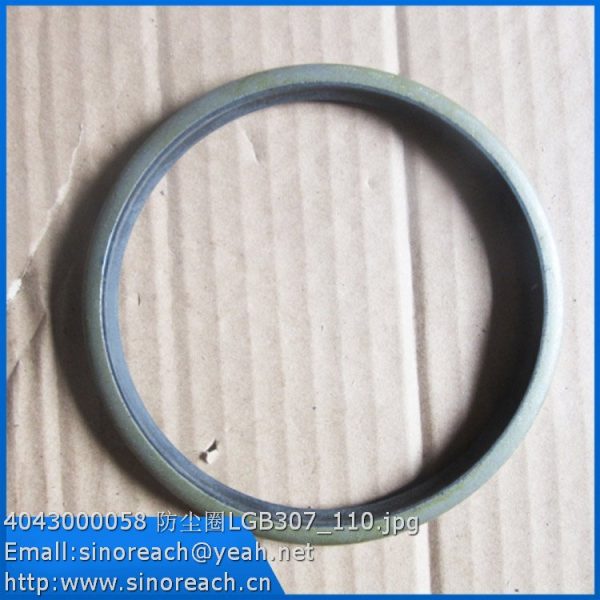

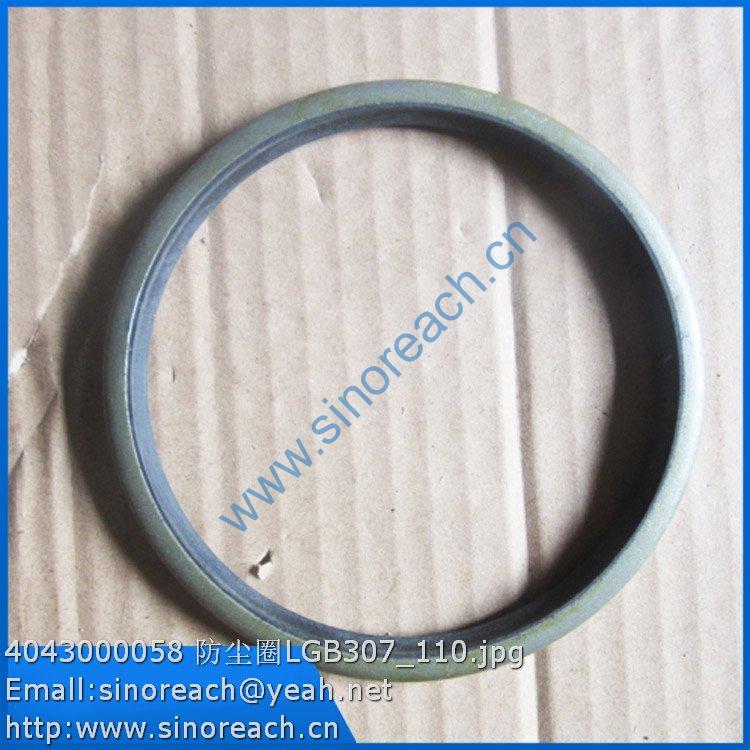

4043000058 Dust ring LGB307-110

4110000038129 O-RING 50*4
4110000038130 PACKING ZL20-030020 δ1
4110000038131 OIL SUMP HOUSING
4110000038132 INPUT PIPE
4110000038133 PERMANENT MAGNET
4110000499225 WASHER ZL20-034004X
4110000499226 PLUG SCREW ZL20-034005
4030000464 PO-RING GB1235-40*3.1
4110000038381 OIL FILLING PIPE COMPONENTS ZL20-037000X13A
4011000107 BOLT GB5783-M8*30EpZn-8.8
4110000038139 COVER
4110000038140 PAPER SPACER
4110000038326 BS428 GASKET GROUP OF TRANSMISSION
4110000038142 LARGE COVER
4110000038143 SHAFT SLEEVE
4110000038144 SPACER
4110000038145 SEALING SHAFT SEELVE
4110000038146 INPUT OIL COVER
4016000237 PIN GB119.2-10*40
4014000185 SCREW GB70-M10*30EpZn-8.8
4110000038149 ADJUST SPACER
4110000038150 SEALING OIL COVER
4030000641 OIL SEAL HG4-692-65*90*12
4011000084 BOLT GB5783-M10*30EpZn-8.8
4110000038153 COVER
4013000218 NUT GB39－M6EpZn－5
4110000038155 VENTILATE
4110000038156 COPPER SLEEVE
4110000038157 IABYRINTH DISK
4110000038158 ISOLATED SLEEVE OF COPPER
4110000038159 LONG BLOT
4110000038160 HOUSING
4110000038161 PAPER SPACER
4110000038162 COVER
4110000038163 SNAP OIL COVER
4019000051 RIVET GB867-4*18-BL2
4110000038165 PAPER SPACER 0.5
4011000085 BOLT GB5783-M10*35EpZn-8.8
4110000038167 PLUG 7
C2-4110000038 INPUT SHAFT ASSEMBLY(330101)
4013000220 NUT GB810－M20*1.5EpZn－8
4015000285 WASHER GB858－20
4110000038171 WASHER 20
4110000038172 FLANGE ASSEMBLY
4021000185 BEARING GBT297－7507
4110000038174 INPUT SHAFT
4110000038175 PLUG 9
4015000221 RING SNAP GB893.2-75*2.5-65Mn
4021000183 BEARING GB276-109
4110000038178 GEAR
4110000038179 RING SNAP
4110000038180 EXTERNAL COVER
4110000038181 EXTERNAL FRICTION BLOCK 1201-0007A
4110000038182 INTERNAL FRICTION BLOCK
4015000284 RING SNAP GB894.2-60-65Mn
4110000038184 SPRING SEAT
4110000038185 SPRING
4110000038186 PISTON
4110000038187 OIL SEAL RING
4030000638 O-RING GB1235-6.0*3.1
4110000038189 CLUTCH SUMP ASS’Y
4090000126 STEEL BALL GB308-5-GCr15
4110000038191 VALVE SEAT
4110000038192 GEAR
4110000038193 STOP SPACER
4011000082 BOLT GB5783-M10*25EpZn-8.8
4016000125 PIN GB119.2-12h8*22-B
4110000038196 SHAFT BUSHING
4110000038197 INTERNAL OIL SEAL BUSHING
4110000038198 PISTON RING Ф52
4110000038199 SHAFT PAD SNAP
4110000038200 STOP SPACER
4011000632 BOLT GB5783-M8*16-8.8
C3-4110000038 INTER-SHAFT(330101)
4011000102 BOLT GB5783-M8*16EpZn-8.8
4110000038203 STOP SPACER
4110000038199 SHAFT PAD SNAP
4110000038205 PISTON RING Ф52
4110000038197 INTERNAL OIL SEAL BUSHING
4021000185 BEARING GBT297－7507
4110000038208 GEAR
4110000038175 PLUG 9
4110000038210 INTER SHAFT
4015000014 SNAP RING GB893.1-75-65Mn
4021000010 BEARING GB276-6009
4110000038213 GEAR
4110000038179 RING SNAP
4110000038180 EXTERNAL COVER
4110000038181 EXTERNAL FRICTION BLOCK 1201-0007A
4110000038182 INTERNAL FRICTION BLOCK
4015000284 RING SNAP GB894.2-60-65Mn
4110000038184 SPRING SEAT
4110000038185 SPRING
4110000038186 PISTON
4110000038187 OIL SEAL RING
4030000608 O-RING GB1235-60*3.1
4110000038189 CLUTCH SUMP ASS’Y
4090000126 STEEL BALL GB308-5-GCr15
4110000038191 VALVE SEAT
4110000038227 GEAR
4110000038193 STOP SPACER
