Description

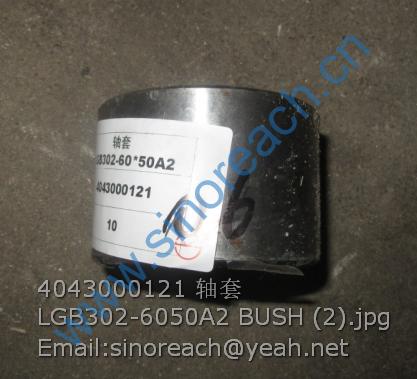

4043000121 LGB302-6050A2 BUSH
1 4120004343001 可调向转向柱LG-ZXZ02G Steering shaft N 1
2 4190000831012 导电环KCT1.2-11 Ring N 1
3 4130000896 锁紧手柄JB/T270.12-94 Switch Y 1
4 4120008528002 螺母M16 GB/T61721-2000 Nut N 1
5 4120004343002 转向器连接轴LG-ZXZ02G-1 Steering shaft N 1
6 4120008528004 尼龙套一LG-ZXZ02G-7 Nylon sleeve N 2
7 4120004343003 固定支架 LG-ZXZ02G.2 Attachment bracket N 1
8 4120008528006 方向盘连接轴LG-ZXZ02G-3 Shaft N 1
9 4120004343004 移动支架LG-ZXZ02G.4 Bracket N 1
10 4120008528008 尼龙套二LG-ZXZ02G-10 Nylon sleeve N 1
11 4190000831012 导电环KCT1.2-11 Ring N 1
12 4120008528009 垫圈LG-ZXZ02-7 Washer N 2
13 4120008528010 转动套LG-ZXZ02-8 Sleeve N 2
14 4120008528011 挡圈LG-ZXZ02-9 Retaining ring N 2
15 4120008528012 固定座LG-ZXZ02.10 Seat N 1
16 4120001703101 万向节 WXJ-03 Cross axle N 1
17 4190000831010 堵头KCT1.2-12 Plug N 1
18 4120008528013 锁紧轴LG-ZXZ02-11 Pin N 1
19 4120008528014 锁紧套LG-ZXZ02-12 Sleeve N 1
20 4120004343005 销轴GB882B 8*36 Control shaft N 2
21 4120004343006 开口销GB91-86 3.2*15 Split pin N 2
22 4120004343007 锁定螺钉GB72-88 M4*5 Set screw N 3
23 4120001703068 深沟球轴承61805-27GB/T276-1994 Bearing N 2
24 4120001703073 A型轴用弹性挡圈25GB/T894.1-1986 Spring washer N 2
25 4120004343008 轴用弹性挡圈37 Stop washer N 2
26 4120000904213 弹垫Φ18GB93-87 Washerφ18gb93-87 N 2
27 4120004343011 六角头螺栓M6*16 Hexagon screw N 2
28 4120004343009 十字盘头螺钉GB/T818-2000 M5*8 Screw N 3
29 4120004343010 I形六角螺母GB/T6170-2000 M12 Hexagon nut N 1
1 29210010731 钢管 Pipe Y 1
2 4030000275 O形圈GB3452.1-22.4*3.55G O-ring Y 2
3 4011001301 螺栓GB16674.1-M8*30flZnyc-8.8-480 Screw Y 4
4 4011001425 螺栓GB16674.1-M8*40flZnyc-8.8-480 Bolt Y 4
5 29210010331 钢管 Pipe Y 1
6 4041000563 软管LGB128-006078 Hose assembly Y 2
7 4120005977 转向油缸HSGL-80*45*327-594 Steering cylinder Y 2
8 29210009721 转向缸进油胶管 Hose Y 2
9 29210001101 压板 Plate Y 1
10 29210001111 橡胶板 Rubber plate Y 2
11 4011001262 螺栓GB5782-M10*55flZnyc-8.8-480 Bolt Y 1
12 4015000426 垫圈GB96.1-10flZnyc-300HV-480 Washer Y 1
13 4190001834 扎丝LG13-ZS8*370 Cable tie Y 2
1 4120005977002 缸筒总成24A139010 Cylinder tube Y 1
2 4120005977003 活塞杆总成24A114080 Piston rod Y 1
3 4120007360003 缸盖24C105080 Cylinder head Y 1
4 4120006603004 衬套24S245201 Bushing Y 1
5 4120006612004 钢丝挡圈-孔用24C090080 Retaining ring Y 1
6 4120006612005 密封件-缓冲24H004514 O-ring N 1
7 4120006603007 密封件-活塞杆24F204503 Sealing ring kit N 1
8 4120008301003 挡圈-U形圈24E00451C Retaining ring N 1
9 4120006603009 密封件-防尘24D204502 Sealing ring kit N 1
10 4120006612006 钢丝挡圈-孔用24C090110 Piston Y 1
11 4120006310007 O形圈24K10750A O-ring N 1
12 4120008298008 挡圈-O形圈24M10800C Sealing ring N 1
13 4120006310009 O形圈24K308001 O-ring N 1
14 4120007360005 活塞24C106080 Piston Y 1
15 4120006310016 密封件-活塞24P208002 Sealing ring N 1
16 4120006603015 O形圈24K10450A O-ring N 1
17 4120006603018 钢球24U004001 Ball Y 1
18 4120006316010 螺钉-内六角凹端紧定24T906121 M6*12L Screw Y 1
19 4120007376007 挡圈-O形圈24M10500C O-ring N 1
20 4120007360006 支承环24G208031 Support ring N 2
21 4120006629011 关节轴承24U104001 Spherical plain bearing N 2
22 4120000560515 弹性挡圈-孔用-A型24T006201 Retaining ring Y 1
23 4120000560514 挡环24C014030 Retaining ring Y 1
24 4120005977001 密封件维修包24A103070S Sealing kit Y 1
1 4011000180 螺栓GB5783-M8*12EpZn-8.8 Screw Y 4
2 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 4
3 29220013761 前桥右护板 Protecting plate Y 1
4 4030000552 O形圈 O-ring Y 8
5 29220001251 制动器管接头 Nipple Y 4
6 29220001261 制动器接头块 Block Y 4
7 29220020651 前桥右油管 Brake pipe Y 1
8 29220000131 三通接头 Three-way nipple Y 2
9 4011000455 螺栓GB16674-M8*25EpZn-8.8 Bolt Y 10
10 29220020631 前桥左油管 Brake pipe Y 1
11 29220013751 前桥左护板 Protecting plate Y 1
12 29220015001 储气罐 Air tank N 1
13 29220000811 垫圈 Washer Y 13
14 29010000041 螺栓 Screw Y 4
15 29220014311 三通管 Three-way nipple Y 1
16 4120006349 加力泵XZ-60-A Air cylinder N 2
17 4011000084 螺栓GB5783-M10*30EpZn-8.8 Bolt Y 8
18 4015000197 垫圈GB96.1-10EpZn-300HV Washer Y 8
19 29220001231 加力泵管接头 Bolt Y 2
20 4030000551 O形圈 O-ring Y 4
21 29220001241 加力泵接头块 Nipple Y 2
22 29220017191 加力泵支架 Bracket Y 1
23 4011000197 螺栓GB5783-M12*25EpZn-8.8 Bolt Y 4
24 4015000186 垫圈GB96.1-12EpZn-300HV Washer Y 4
25 29220020671 后桥油管 Brake pipe Y 2
26 4011000807 螺栓GB16674-M8*12EpZn-8.8 Bolt Y 2
27 29120007671 管夹 Clamp Y 2
28 29220008451 直接头 Nipple Y 2
29 4041002225 软管LGB145-202125 Hose assembly Y 1
30 4041001028 软管LGB153-202190 Hose assembly Y 1
