Description

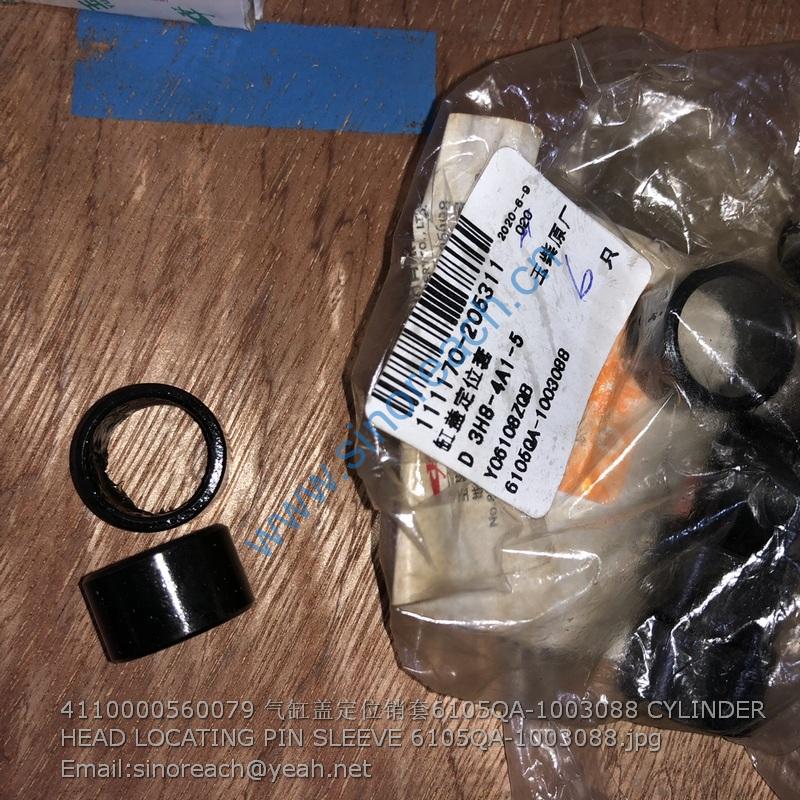

4110000560079 CYLINDER HEAD LOCATING PIN SLEEVE 6105QA-1003088

1 2926000001 后车架 REAR FRAME 1 部件

2 2927000003 走线胶套 RUBBER SLEEVE 2 橡胶 Ⅰ-2

3 4011000064 螺栓 GB5782-M12*50EpZn-8.8 BOLT GB5782-M12*50EpZn-8.8 6

4 4015000026 垫圈 GB93-12-65Mn LOCK WASHER 6

5 4015000168 垫圈 GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV 6

6 4011000069 螺栓 GB5782-M16*90EpZn-8.8 BOLT GB5782-M16*90EpZn-8.8 4

7 4015000098 垫圈 GB93-16-65Mn LOCK WASHER 4

8 4015000181 垫圈 GB97.1-16EpZn-300HV WASHER GB97.1-16EpZn-300HV 4

9 2925000014 盘 DISC 1 Q345A

10 2925000010 垫片 SPACER 4 65Mn

11 2925000013 套 BUSH 1 40Cr

12 2927000007 板 PLATE 1 Q235A

13 4011000197 螺栓 GB5783-M12*25EpZn-8.8 BOLT GB5783-M12*25EpZn-8.8 3

14 4040000001 垫圈 LGB001-12*45*6 WASHER LGB001-12*45*6 2

15 4043000011 销轴 LGB301-50d9*N*140-40Cr PIN LGB301-50d9*N*140-40Cr 2

16 4043000032 垫片 LGB303-50*90*1 SPACER 4

17 2925000003 上铰接销 UP ARTICULATION PIN 1 40Cr

18 2925000002 盘 DISC 1

19 4011000093 螺栓 GB5783-M16*25EpZn-8.8 BOLT GB5783-M16*25EpZn-8.8 1

20 4040000002 垫圈 LGB001-16*50*6 WASHER LGB001-16*50*6 1

21 2925000016 下铰接销 DOWN ARTICULATION PIN 1 部件

22 2925000017 套 BUSH 2 40Cr

23 2927000006 板 PLATE 1 Q235A

24 4011000461 螺栓 GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*20EpZn-8.8 8

25 2927000009 锁定杆后销轴 REAR PIN OF MOUNT BAR 1 部件

26 2927000011 锁定杆 MOUNT BAR 1 Q345A

27 2927000008 卡环 HOLDING RING 1 部件

28 2927000012 锁定杆前销轴 FRONT PIN OF MOUNT BAR 1 部件

29 4016000043 开口销 GB91-8*80EpZn-Q235A SPLIT PIN GB91-8*80EpZn 1 Q235A

30 2925000030 垫片 SPACER 6 T2

31 2927000005 油管 OIL TUBE 1 部件

32 2927000004 油管 OIL TUBE 1 部件

33 2927000002 油管 OIL TUBE 1 部件

34 2925000029 通油螺栓 BOLT 3 Q235A

36 2925000031 管夹 PIPE CLIP 4 Q235A

37 4015000035 垫圈 GB93-6-65Mn LOCK WASHER 6

38 4014000024 螺钉 GB818-M6*10EpZn-4.8 SCREW GB818-M6*10EpZn-4.8 6

39 4030000065 油杯 M10*1 GREASE NIPPLE M10*1 3

40 2925000011 垫片 SPACER 4 65Mn

41 2925000012 垫片 SPACER 4 65M
