Description

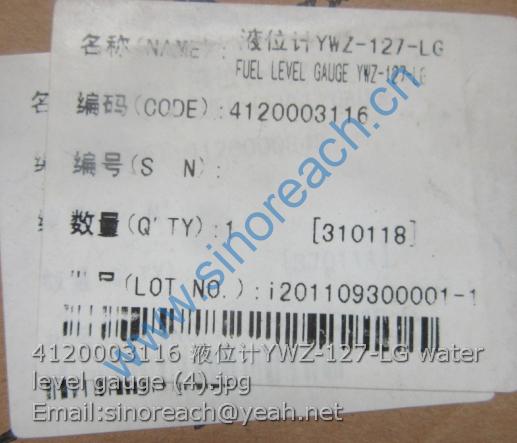

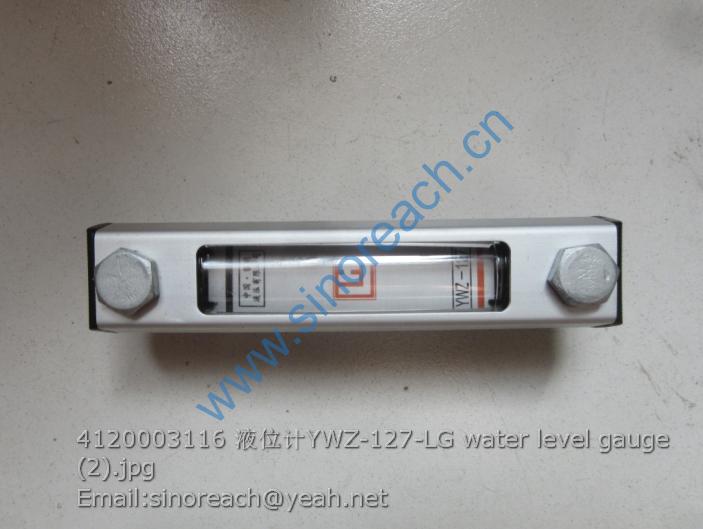

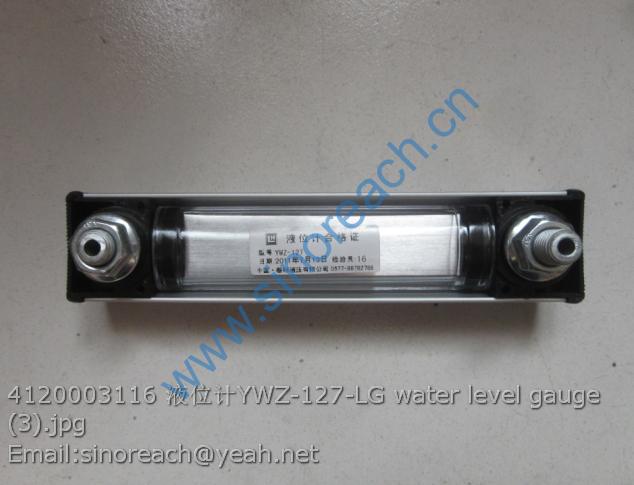

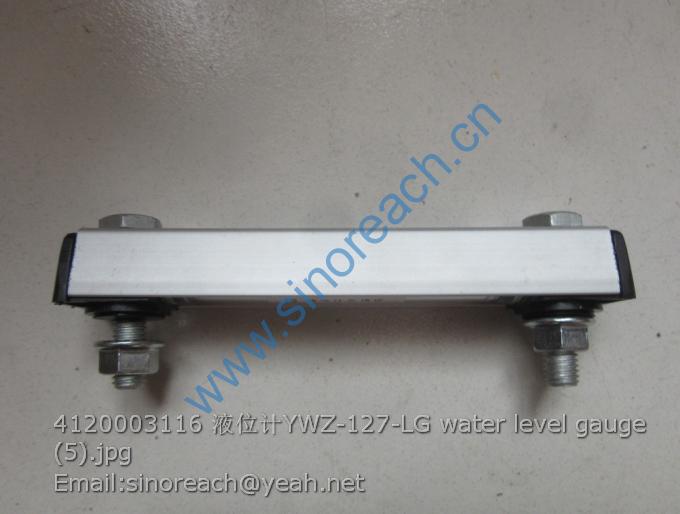

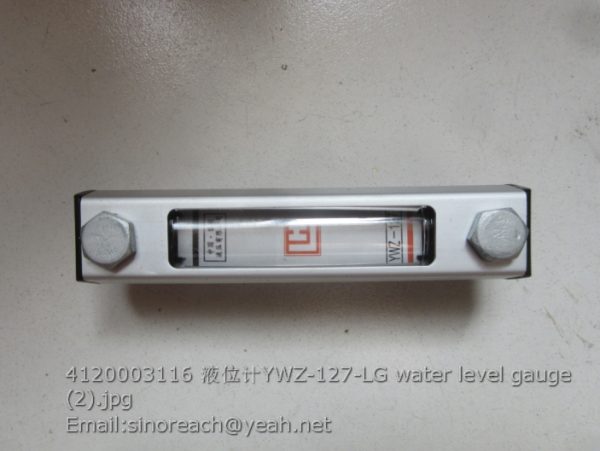

4120003116 YWZ-127-LG WATER LEVEL GAUGE for LG956L

29100026871 液压油箱体 Hydraulic fluid tank N 1
2 4120003116 液位计YWZ-127-LG Water level gauge Y 1
3 4011000458 螺栓GB16674-M8*20EpZn-8.8 Bolt Y 16
4 4030000232 O形圈GB3452.1-170*3.55G O-ring Y 2
5 29100023001 回油法兰盖 Flange Y 1
6 29100000051 弹簧 Spring Y 1
7 29100000061 液压油箱回油滤芯 Filter insert Y 1
8 4120000452 加油滤芯SFM-323M Filter insert Y 1
9 4011000461 螺栓GB16674-M8*16EpZn-8.8 Bolt Y 4
10 4120001088 换气过滤器L1.0807-31 Breather cap Y 1
11 29100023161 呼吸器法兰盘 Flange Y 1
12 4030000598 O形圈GB3452.1-230*5.30G O-ring Y 1
13 4011000474 螺栓GB16674-M10*25EpZn-8.8 Bolt Y 8
14 4030000177 O形圈GB3452.1-206*5.30G O-ring Y 2
15 29100023041 吸油上部法兰 Flange Y 1
16 4041000774 螺塞LGB135-01422 Plug Y 6
17 4041000767 O形圈LGB168-11124 O-ring Y 6
18 4011000164 螺栓GB16674-M10*35EpZn-8.8 Bolt Y 8
19 29100010111 维修侧板 Plate Y 2
20 29100026621 吸油法兰 Flange Y 1
21 4015000256 垫圈GB96.1-8EpZn-300HV Washer Y 8
22 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 8
23 29100008761 法兰盖 Flange Y 1
24 4041000508 螺塞LGB135-01824 Plug Y 2
25 4041000768 O形圈LGB168-11524 O-ring Y 2
26 4190000008 环形磁铁LG03-CT76*32*15 Magnet Y 1
27 4011000481 螺栓GB16674-M8*30EpZn-8.8 Bolt Y 8
28 4041000777 螺塞LGB135-02227 Plug Y 1
29 4041000771 O形圈LGB168-11924 O-ring Y 1
30 29100023121 回油法兰 Flange Y 1

31 29100023151 磁铁 Magnet Y 1
32 4030000633 O形圈GB3452.1-128*3.55G O-ring Y 1
33 4041001056 螺塞LGB135-01219 Plug Y 1
34 4041000784 O形圈LGB168-10924 O-ring Y 1

1 4017000006 喉箍JB8870-d100 Clamp Y 4
2 29110008681 工作泵吸油胶管 Hose Y 1
3 29110001061 工作泵吸油钢管 Pipe Y 1
4 4011000477 螺栓GB16674-M12*35EpZn-8.8 Bolt Y 4
5 4030000133 O形圈GB3452.1-56.0*3.55G O-ring Y 1
6 4041000009 分体法兰LGB117-320760 Flange half Y 1
7 4013000011 螺母GB6170-M12EpZn-8 Nut Y 4
8 4015000168 垫圈GB97.1-12EpZn-300HV Washer Y 4
9 4012000003 螺柱GB898-M12*35EpZn-8.8 Stud Y 4
10 4120001715 齿轮泵JHP3160 Gear pump Y 1
11 29110000042 泵用密封垫 Gasket N 1
12 29110009071 工作泵出油软管 Hose assembly Y 1
13 4011000475 螺栓GB16674-M10*30EpZn-8.8 Bolt Y 8
14 4030000029 O形圈GB3452.1-37.5*3.55G O-ring Y 2
15 4041000056 分体法兰LGB117-312550 Flange half Y 2
16 29110008631 阀块 Valve block Y 1
17 4011000560 螺栓GB16674-M12*25EpZn-8.8 Bolt Y 4
18 4041000774 螺塞LGB135-01422 Plug Y 2
19 4041000767 O形圈LGB168-11124 O-ring Y 2
20 4041000192 螺塞LGB135-03341 Plug Y 1
21 4041000765 O形圈LGB168-12931 O-ring Y 1

1 4120001715001 挡圈41060100400 Retaining ring Y 1
2 4120001715002 旋转轴唇形密封圈 43020200200 Sealing ring Y 2
3 4120001715003 挡圈41060100300 Retaining ring Y 1
4 4120001715004 前盖21050200110 Cover Y 1
5 4120005081002 环形密封圈44020100700 Sealing ring Y 2
6 4120001715006 滚针轴承 42010100200 Needle bearing Y 4
7 4120001715007 定位套21050900110 Spacer sleeve Y 4
8 4120001715008 耳形挡片21050800110 Retaining ring Y 2
9 4120001715009 耳形密封垫21050700110 Sealing washer Y 2
10 4120001715010 侧板21050600110 Side board Y 2
11 4120001715011 主动齿轮轴21050117010 Drive shaft Y 1
12 4120001715012 从动齿轮轴21050417010 Shaft Y 1
13 4120001715013 泵体21050317010 Pump body Y 1
14 4120001715014 后盖21050500110 Cover Y 1
15 4120001715015 螺钉44010103080 Screw Y 4
16 4120001715016 弹簧垫圈41050200700 Spring washer Y 4
17 4120001715017 螺钉41010101780 Screw Y 4
18 4120001715018 弹簧垫圈41050200500 Spring washer Y 4
19 4120001715019 密封件包 Sealing ring kit Y 1

1 4015000015 挡圈GB893.1-80-65Mn Retaining ring Y 1
2 4120001715401 轴承3910381078 Bearing N 1
3 4120001715402 O形圈3912881457 O-ring N 2
4 4120001715403 密封套3912584051 Sleeve N 1
5 4120001715404 油封3912883052 Sealing ring N 2
6 4120001715405 前盖3165037202c Cover N 1
7 4120001715406 密封环3912585011 Sealing ring N 2
8 4120001715407 螺堵3912286004 Plug N 1
9 4120001715408 轴承3910381060A Bearing N 4
10 4120001715409 密封件3912882052 Sealing ring N 12
11 4120001715410 侧板3912185026A Side board N 2
12 4120001715412 主动齿轮CN102000086 Drive shaft N 1
13 4120001715413 从动齿轮3162725000 Shaft N 2
14 4120001715411 密封圈3912884024 Sealing ring N 1
15 4120001715414 中间体P76-25-104-02 Centering block N 1
16 4120001715415 销3912082033 Pin N 4
17 4120001715416 后盖3163120100 Cover N 1
18 4120001715417 垫圈3913784028 Washer N 8
19 4120001715418 螺栓3911401363 Screw N 8
20 4120001715419 标牌3912181999A Decal N 1
21 4120003294019 铆钉3911432004 Rivet N 2
22 4120001715420 密封件包CN102000099 Sealing ring kit N 1
