Description

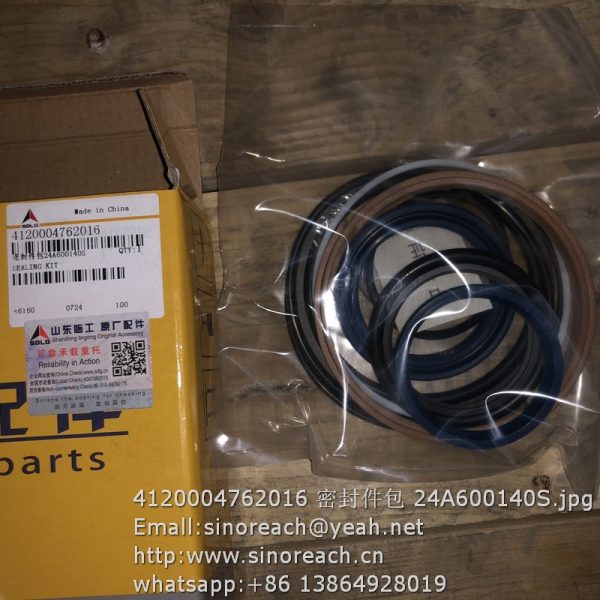

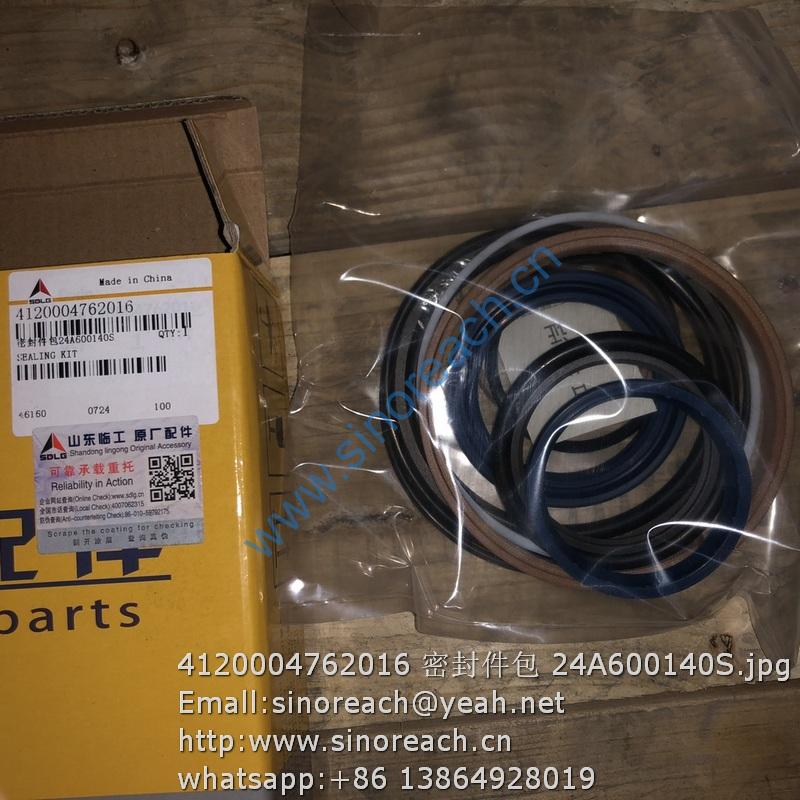

4120004762016 Seal kit 24A600140S for SDLG spare parts

4015000026 垫圈GB93-12-65Mn WASHER GB93-12-65Mn
29070000251 密封盖 SEALING COVER
4030000049 油封HG4-692-SG80*100*12 OIL SEAL HG4-692-SG80*100*12
4021000030 滚动轴承GB297-31313 BEARING GB297-31313
29070000271 轴承座 BEARING SEAT
29070000281 轴套 SHAFT SLEEVE
29070000151 调整垫片 ADJUSTING SHIM
29070000181 垫片 SPACER
4021000032 滚动轴承GB297-31314 BEARING GB297-31314
4011000494 螺栓GB5786-M16*1.5*45EpZn-8.8 BOLT M16*1.5*45EpZn-8.8
4015000098 垫圈GB93-16-65Mn WASHER GB93-16-65Mn
4021000036 滚动轴承GB297-32216 BEARING GB297-32216
29070000351 调整螺母 ADJUSTING NUT
4016000124 销GB119.2-10u8*30 PIN GB119.2-10u8*30
29070000321 托架 CARRIER
29070000311 锁紧片 LOCKING LEAF
4013000052 螺母GB6173-M27*2-05 NUT GB6173-M27*2-05
29070000301 止推螺栓 BOLT
29070000391 轴承座 CAGE
29070000401 锁紧片 LOCKING LEAF
4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn
4011000597 螺栓GB5786-M10*1*20EpZn-8.8 BOLT GB5786-M10*1*20EpZn-8.8
29070001301 垫圈 WASHER
29070000461 固定销 PIN
29070009521 螺栓 BOLT
29070000291 主动螺旋伞齿轮（左） SPIRAL BEVEL GEAR PINION(LEFT)
4021000027 滚动轴承GB283-NUP2307 BEARING GB283-NUP2307
4015000020 挡圈GB894.1-35-65Mn RETAINER RING GB894.1-35-65Mn
29070000331 锥齿轮垫片 WASHER THRUST
29070000341 锥齿轮 GEAR PINION
29070009511 垫圈 WASHER
4013000198 螺母GB6176-M16*1.5-10 NUT GB6176-M16*1.5-10
29070000431 差速器左壳 LEFT CASE DIFFERENTIAL MECHANISM
29070000381 半轴齿轮垫片 HALF AXLE GEAR SPACER
29070000371 半轴齿轮 HALF AXLE GEAR
29070000411 十字轴 CROSS AXLE
4041000019 O形圈LGB308-430*3.5 O-RING LGB308-430*3.5
29070000451 从动螺旋伞齿轮（右） LARGE SPRIAL BEVELGEAR (RIGHT)
29070000361 差速器右壳 RIGHT CASE DIFFERENTIAL MECHANISM
29070009491 螺栓 BOLT
29070009501 螺栓 BOLT
29070000161 调整垫片 ADJUSTING SHIM
29070000171 调整垫片 ADJUSTING SHIM
29070000191 垫片 SPACER
29070000201 垫片 SPACER
29070000211 垫片 SPACER
2050900104 托架总成-371102 CARRIER ASSEMBLY-371102
2050900107 前主从动螺旋伞齿轮 FRONT SPIRAL BEVEL GEAR PINION
2050900079 差速器左右壳 LEFT 、RIGHT CASE DIFFERENTIAL MECHANISM
E3-2907001091 轮边减速器(前桥) FINAL DRIVE ASSEMBLY
29070012351 垫片 SHIM
29070000551 挡环 RETAINER RING
29070000561 行星齿轮 PLANET GEAR
4090000004 滚针GB309-5*45-GCr15 ROLLER GB309-5*45-GCR15
29070000081 轮辋螺母 RIM NUT
29070000621 轮辋螺栓 RIM BOLT
29070000601 半轴 DIFFERENTIAL AXLE
4013000203 螺母GB6171-M20*1.5EpZn-10 NUT GB6171-M20*1.5EpZn-10
4015000030 垫圈GB93-20-65Mn WASHER GB93-20-65Mn
29070010931 轮毂 HUB WHEAL
29070010921 行星轮架 PLANET PINION CARRIER
4090000008 钢球GB308-9.525-GCr15 STEEL BALL GB308-9.525-GCR15
29070000611 行星齿轮轴 PLANET PINION SHAFT
4120000080 螺塞Q/ZB286-ZG3/4″-Q235A PLUG Q/ZB286-ZG3/4″-Q235A
4090000006 钢球GB308-17.462-GCr15 STEEL BALL GB308-17.462-GCr15
29070009161 定位块 LOCK BLOCK
29070000511 太阳齿轮 GEAR-SUN
4015000022 挡圈GB894.1-52-65Mn RETAINER RING GB894.1-52-65Mn
29070007621 盖 COVER
4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn
4011000084 螺栓GB5783-M10*30EpZn-8.8 BOLT GB5783-M10*30EpZn-8.8
4014000016 螺钉GB70-M10*1*20EpZn-8.8 SCREW GB70-M10*1*20EpZn-8.8
29070012331 圆螺母 PLATE
29070000481 驱动桥内齿轮 AXLE RING GEAR
4041000020 O形圈LGB308-440*3.5 O-RING LGB308-440*3.5
4021000038 滚动轴承GB297-32224 BEARING GB297-32224
4021000034 滚动轴承GB297-32028 BEARING GB297-32028
29070000581 隔套 ISOLATED BUSHING
4030000146 油封HG4-692-SG170*200*15 OIL SEAL HG4-692-SG170*200*15
29070000591 密封垫 SPACER
29070000471 油封端盖 COVER OF OIL SAL
4015000036 垫圈GB93-8-65Mn WASHER GB93-8-65Mn
4011000298 螺栓GB5782-M8*45EpZn-8.8 BOLT GB5782-M8*45EpZn-8.8
29070012361 垫片 SHIM
E4-2908000764 传动轴总成 DRIVE SHAFT GROUP
4011000431 螺栓GB5785-M12*1.25*50EpZn-8.8 BOLT GB5785-M12*1.25*50EpZn-8.8
4015000026 垫圈GB93-12-65Mn WASHER GB93-12-65Mn
4110000197 前传动轴 FRONT TRANSMISSION SHAFT
29080000031 中间支承 MIDDLE BRAKET
4011000241 螺栓GB5785-M14*1.5*55EpZn-8.8 BOLT GB5785-M14*1.5*55EpZn-8.8
4013000073 螺母GB889.2-M14*1.5EpZn-8 NUT GB889.2-M14*1.5EpZn-8
4015000177 垫圈GB97.1-14EpZn-300HV WASHER GB97.1-14EpZn-300HV
4110000198 中间传动轴 INTERMEDIATE PROPELLOR SHAFT
4110000046 螺栓LG05-LS1/2＂-20UNF BOLT LG05-LS1/2＂-20UNF
4015000202 垫圈LG05-DQ1/2＂ WASHER LG05-DQ1/2＂
4110000199 后传动轴 REAR CARDAN SHAFT
E5-2909000817 后桥总成 REAR AXLE ASSEMBLY
29090000041 后桥壳总成 AXLE HOUSING
4120000080 螺塞Q/ZB286-ZG3/4″-Q235A PLUG Q/ZB286-ZG3/4″-Q235A
4044000114 标牌 LGB402-E/A501A BRAND LGB402-E/A501A
4019000012 铆钉GB827-3*5-BL2 RIVET GB827-3*5-BL2
29070000051 透气管 BREATHER PIPE
4013000078 螺母GB6173-M10*1EpZn-05 NUT GB6173-M10*1EpZn-05
4041000021 O形圈LGB308-260*3.5 O-RING LGB308-260*3.5
29090000151 支承轴 CARRYING SHAFT
4015000098 垫圈GB93-16-65Mn WASHER GB93-16-65Mn
4011000244 螺栓GB5786-M16*1.5*50EpZn-8.8 BOLT GB5786-M16*1.5*50EpZn-8.8
4030000021 O形圈GB3452.1-160*5.30G O-RING GB3452.1-160*5.30G
29090000101 密封盖 SEALING COVER
29090000111 轴套 BUSHING
29090000121 衬垫 BUSHING
4015000026 垫圈GB93-12-65Mn WASHER GB93-12-65Mn
4011000090 螺栓GB5783-M12*35EpZn-8.8 BOLT GB5783-M12*35EpZn-8.8
29070010911 轮边减速器 FINAL DRIVE ASSEMBLY（FRONT AXLE）
4011000113 螺栓GB5785-M20*1.5*90EpZn-8.8 BOLT GB5785-M20*1.5*90EpZn-8.8
4011000064 螺栓GB5782-M12*50EpZn-8.8 BOLT GB5782-M12*50EpZn-8.8
29090000141 端盖 COVER
29090000131 垫块 SPACER
29090000161 垫片 SPACER
4013000064 螺母GB889.2-M30*2EpZn-8 LOCKING NUT GB889.2-M30*2-8
4011000130 螺栓GB5786-M20*1.5*50EpZn-8.8 BOLT GB5786-M20*1.5*50EpZn-8.8
29090000091 后桥支架 REAR AXLE BRACKET
29090007981 螺栓 BOLT
4190000237 轮辋LG19.50/2.5-25 RIM
4110000006 轮胎GB2980-23.5-25 TIRE ASSEMBLY
29090000031 后主传动 REAR AXLE MAIN DRIVE
4015000030 垫圈GB93-20-65Mn WASHER GB93-20-65Mn
29070000101 螺栓 BOLT
4120001739 制动钳 DISK BRAKE
4120001740 放气嘴 VENT NOZZLE
29070000071 制动盘 BRAKE PLATE
29090008181 A501A后驱动桥总成 A501A REAR AXLE ASSEMBLY
E6-2909000003 后主传动总成 REAR AXLE MAIN DRIVE ASSEMBLY
4013000066 螺母GB889.2-M33*1.5-8 NUT GB889.2-M33*1.5-8
29070000221 垫圈 WASHER
4030000035 O形圈GB3452.1-53.0*5.30G O-RING GB3452.1-53.0*5.30G
29070000241 挡圈 RETAINER RING
29070000231 输入法兰 INPUT FLANGE
4011000067 螺栓GB5782-M14*55EpZn-8.8 BOLT GB5782-M14*55EpZn-8.8
4015000027 垫圈GB93-14-65Mn WASHER GB93-14-65Mn
29070000261 密封垫 GASKET
4011000186 螺栓GB5782-M12*55EpZn-8.8 BOLT GB5782-M12*55EpZn-8.8
4015000026 垫圈GB93-12-65Mn WASHER GB93-12-65Mn
29070000251 密封盖 SEALING COVER
4030000049 油封HG4-692-SG80*100*12 OIL SEAL HG4-692-SG80*100*12
4021000030 滚动轴承GB297-31313 BEARING GB297-31313
29070000271 轴承座 BEARING SEAT
29070000181 垫片 SPACER
29070000281 轴套 SHAFT SLEEVE
29090000051 套 SLEEVE
29070000151 调整垫片 ADJUSTING SHIM
29090000061 衬套 BUSHING
4021000032 滚动轴承GB297-31314 BEARING GB297-31314
4011000494 螺栓GB5786-M16*1.5*45EpZn-8.8 BOLT M16*1.5*45EpZn-8.8
4015000098 垫圈GB93-16-65Mn WASHER GB93-16-65Mn
4021000036 滚动轴承GB297-32216 BEARING GB297-32216
29070000351 调整螺母 ADJUSTING NUT
4016000124 销GB119.2-10u8*30 PIN GB119.2-10u8*30
29070000321 托架 CARRIER
29070000311 锁紧片 LOCKING LEAF
4013000052 螺母GB6173-M27*2-05 NUT GB6173-M27*2-05
29070000301 止推螺栓 BOLT
29070000391 轴承座 CAGE
29070000401 锁紧片 LOCKING LEAF
4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn
4011000597 螺栓GB5786-M10*1*20EpZn-8.8 BOLT GB5786-M10*1*20EpZn-8.8
29070001301 垫圈 WASHER
29070009511 垫圈 WASHER
29070009521 螺栓 BOLT
29090000071 主动螺旋伞齿轮（右） SPIRAL BEVEL GEAR PINION(RIGHT)
4021000027 滚动轴承GB283-NUP2307 BEARING GB283-NUP2307
4015000020 挡圈GB894.1-35-65Mn RETAINER RING GB894.1-35-65Mn
29070000331 锥齿轮垫片 WASHER THRUST
29070000341 锥齿轮 GEAR PINION
29070000461 固定销 PIN
4013000198 螺母GB6176-M16*1.5-10 NUT GB6176-M16*1.5-10
29070000431 差速器左壳 LEFT CASE DIFFERENTIAL MECHANISM
29070000381 半轴齿轮垫片 HALF AXLE GEAR SPACER
29070000371 半轴齿轮 HALF AXLE GEAR
29070000411 十字轴 CROSS AXLE
4041000019 O形圈LGB308-430*3.5 O-RING LGB308-430*3.5
29090000081 从动螺旋伞齿轮（左） LARGE SPRIAL BEVELGEAR (LEFT)
29070000361 差速器右壳 RIGHT CASE DIFFERENTIAL MECHANISM
29070009491 螺栓 BOLT
29070009501 螺栓 BOLT
4015000098 垫圈GB93-16-65Mn WASHER GB93-16-65Mn
4011000244 螺栓GB5786-M16*1.5*50EpZn-8.8 BOLT GB5786-M16*1.5*50EpZn-8.8
29070000191 垫片 SPACER
29070000201 垫片 SPACER
29070000211 垫片 SPACER
29070000161 调整垫片 ADJUSTING SHIM
29070000171 调整垫片 ADJUSTING SHIM
2050900104 托架总成-371102 CARRIER ASSEMBLY-371102
2050900110 后主从动螺旋伞齿轮 REAR SPIRAL BEVEL GEAR PINION
2050900079 差速器左右壳 LEFT 、RIGHT CASE DIFFERENTIAL MECHANISM
E8-4120001739 制动钳(371328) DISK BRAKE(371328)
4120001739001 橡皮帽JS-ZL50-001 RUBBER COVER JS-ZL50-001
4120001740 放气嘴 VENT NOZZLE
4120001739003 O形圈16*2.4 JS-ZL50-014 O-RING 16*2.4 JS-ZL50-014
4120001739004 O形圈20*2.4 JS-ZL50-015 O-RING 20*2.4 JS-ZL50-015
4120001739005 外钳JS-ZL50-003 EXTERNAL PLIERS JS-ZL50-003
4120001739006 防尘罩JS-ZL50-004 DUST CAP JS-ZL50-004
4120001739007 卡圈JS-ZL50-005 RETAINER RING JS-ZL50-005
4120001739008 矩形密封圈JS-ZL50-006 SQUQRE SEAL JS-ZL50-006
4120001739009 活塞JS-ZL50-007 PISTON JS-ZL50-007
4120001739010 螺栓销JS-ZL50-008 BOLT PIN JS-ZL50-008
4120001739011 内钳JS-ZL50-009 INTERNAL PLIERS JS-ZL50-009
4016000101 开口销GB91-2.5*20EpZn-Q235A SPLIT PIN
4120001739013 螺栓M22（10.9）JS-ZL50-010 BOLT M22（10.9）JS-ZL50-010
4015000087 垫圈GB93-22-65Mn WASHER GB93-22-65Mn
4120001739015 接头JS-ZL50-011 CONNECTOR JS-ZL50-011
4120001739016 制动片JS-ZL50-012 BRAKE SHOE JS-ZL50-012
4120001739017 防尘塞JS-ZL50-013 DUST CORK JS-ZL50-013
F11-4030000182 多路阀D32A-18(331001) CONTROL VALVE
4120001054004 端盖D32-1 END CAP
4120001054005 动臂阀杆D32-2 VALVE STEM
4120001054006 阀体D32-4 VALVE BODY
4030000608 PO形圈GB1235-60*3.1 O-RING GB1235-60*3.1
4120001054007 弹簧D32-8 SPRING
4015000168 垫圈GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV
4011000087 螺栓GB5783-M12*20EpZn-8.8 BOLT GB5783-M12*20EpZn-8.8
4120001054009 端盖D32-5 END CAP
4120001054010 弹簧D32-7 SPRING
4015000025 垫圈GB93-10-65Mn WASHER GB93-10-65Mn
4014000217 螺钉GB70.1-M10*100EpZn-8.8 SCREW GB70.1-M10*100EpZn-8.8
4120001054012 弹簧座D32-6 SPRING SEAT
7200000446 O型圈 O-RING
4120001054014 补油阀盖D32-13 FLOAT TRAP VALVE BODY
4120001054015 弹簧D32-14 SPRING
4120001054016 补油阀D32-15 VALVE CORE
4120001054017 螺塞D32A-10 PLUG
4120001054018 O形圈8.9*2.3 O-RING 8.9*2.3
7200001075 O形圈50*3.1 O-RING 50*3.1
4120001054020 辅助阀杆D32A-11 VALVE STEM
