Description

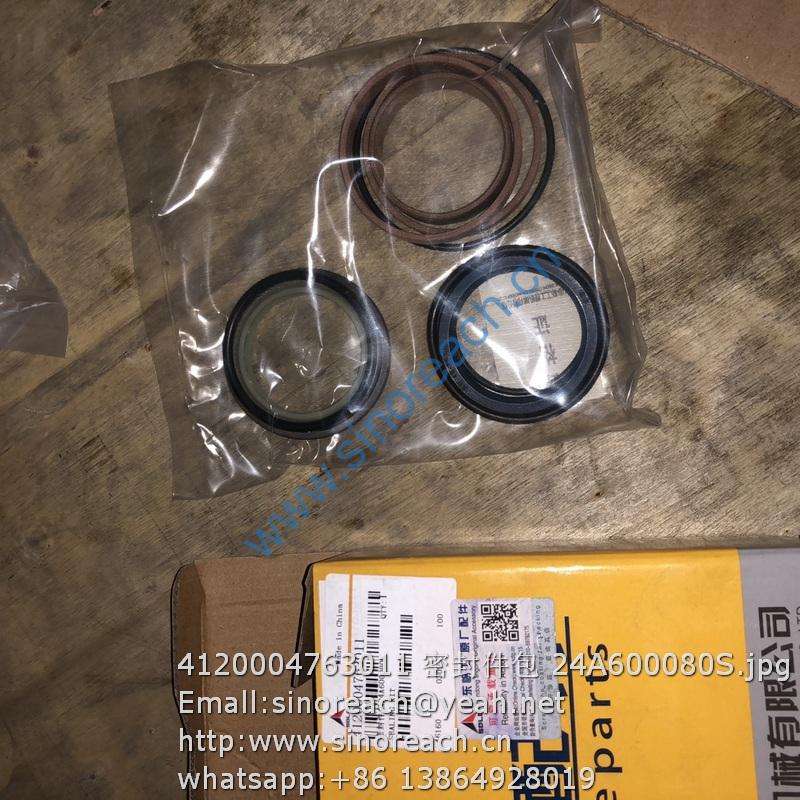

4120004763011 Seal kit 24A600080S for SDLG spare parts

4030000706 O形圈GB1235-44*3.5 O-RING GB1235-44*3.5
4120001054022 阀盖D32-19 CHECK VALVE BODY
4120001054023 弹簧D32-16 SPRING
4120001054024 单向阀D32-17 CHECK VALVE
4030000707 O形圈GB1235-55*3.1 O-RING GB1235-55*3.1
4120001054026 转斗阀杆D32-12 VALVE STEM
4014000115 螺钉GB70.1-M10*1.5*45EpZn-8.8 SCREW GB70.1-M10*1.5*45EpZn-8.8
4120001054003 小腔过载补油阀 OVERLOAD VALVE
4120001054002 大腔过载补油阀 OVERLOAD VALVE
4120001054029 堵头D32A-20 CHOKE PLUG
4030000149 O形圈GB1235-35*3.5 O-RING GB1235-35*3.5
4120001054030 螺栓D32A-21 BOLT
4120001054001 安全阀D32.2a-00 RELIEF VALVE
4120001054031 阀体D32A-22 VALVE BODY
4120001054032 堵头D32A-23 CHOKE PLUG
4120001054033 阀杆接头D32-21 VALVE STEM JOINT
4120001054034 调整垫片D32-9 ADJUSTING SHIM
4120002303004 螺塞D32-3 PLUG D32-3
4030000011 O形圈GB1235-20*2.4 O-RING GB1235-20*2.4
F1-2912001693 液压操纵总成 HYDRAULIC CONTROL ASSEMBLY
4041000604 直接头LGB120-01614 JOINT LGB120-01614
29120016841 动臂大腔至选择阀胶管 HOSE
4041000767 O形圈LGB168-11124 O-RING LGB168-11124
4015000168 垫圈GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV
4013000011 螺母GB6170-M12EpZn-8 NUT GB6170-M12 EpZn-8
4011000057 螺栓GB5782-M12*165EpZn-8.8 BOLT GB5782-M12*165EpZn-8.8
4011000056 螺栓GB5782-M12*145EpZn-8.8 BOLT GB5782-M12*145EpZn-8.8
4030000182 多路阀D32A-18 MULTIPLE UNIT VALVE D32A-18
29120007651 接头 JOINT
29120014931 垫圈 WASHER
4041001023 组合接头LGB143-01608 JOINT LGB143-01608
4030000240 O形圈GB3452.1-8.00*1.80G O-RING GB3452.1-8.00*1.80G
29120016851 先导胶管(2c) PIPE (2c)
29120016251 多路阀固定板 CLAMPING PLATE OF CONTROL VALVE
4011000149 螺栓GB16674-M16*50EpZn-8.8 BOLT GB16674-M16*50EpZn-8.8
29120000031 多路阀回油钢管 OIL OUTLET TUBE OF OIL INLET TUBE
4011000477 螺栓GB16674-M12*35EpZn-8.8 BOLT GB16674-M12*35EpZn-8.8
4041000010 分体法兰LGB117-314651 FLANGE LGB117-314651
4030000130 O形圈GB3452.1-47.5*3.55G O-RING GB3452.1-47.5*3.55G
29120000051 固定支架 FTEADY REST 1
4041000954 U形螺栓LGB159-14254 U-BOLT LGB159-14254
4041000955 底板LGB160-4254 BOTTOM SHEET LGB160-4254
4041000894 软管LGB161-014135 HOSE LGB161-014135
4041000011 分体法兰LGB117-314650 FLANGE LGB117-314650
4120002289 软管LGB162-012160 TUBE LGB162-012160
4041000056 分体法兰LGB117-312550 FLANGE LGB117-312550
4030000029 O形圈GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G
4011000475 螺栓GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8
4041000592 软管LGB125-004055 PIPE LGB125-004055
29120012111 过渡块 TRANSITION BLOCK
4011000279 螺栓GB16674-M10*60EpZn-8.8 BOLT GB16674-M10*60EpZn-8.8
29120012241 过渡块至液压油箱软管 HOSE
4041000095 直接头LGB120-02218 STAIGHT JOINT LGB120-02218
4041000768 O形圈LGB168-11524 O-RING LGB-11524
4041000143 直接头LGB120-02222 CONNECTOR LGB120-02222
4041000771 O形圈LGB168-11924 O-RING LGB168-11924
4120002027 先导阀总成DXS-00 PILOT VALVE DXS-00
4014000058 螺钉GB70.1-M6*20EpZn-8.8 SCREW GB70.1-M6*20EpZn-8.8
29120015911 操纵箱盖PS COVER PS
4011000488 螺栓GB16674-M10*16EpZn-8.8 BOLT GB16674-M10*16EpZn-8.8
29120016101 先导阀回油管 OIL RETURN PIPE OF PUMP
29120015221 垫圈 WASHER
4011000366 螺栓JB999-M18*1.5*40EpZn-35 BOLT JB999-M18*1.5*40-35
4011000344 螺栓JB999-M14*1.5*32EpZn-35 BOLT JB999-M14*1.5*32-35
29120010831 前部先导油管（a1） FRONT PILOT PTPE（a1）
29120015401 接头 FITTING
4011000461 螺栓GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*16EpZn-8.8
29120007671 管夹 CLAMP
29120016011 固定板 MOUNTED PLATE
4011000447 螺栓GB16674-M10*20EpZn-8.8 BOLT GB16674-M10*20EpZn-8.8
4041000774 螺塞LGB135-01422 PLUG LGB13501421
4041000632 软管LGB125-004080 PIPE LGB125-004080
29120015081 接头 JOINT
4030000276 O形圈GB3452.1-32.5*2.65G O-RING GB3452.1-32.5*2.65G
4120001954 滤油器PLF-C30*10 STRAINER
29120016021 固定板 PLATE
4041000150 直接头LGB120-01814 STAIGHT JOINT LGB120-01814
29120007561 选择阀回油管 OIL RETURN PIPE OF SELECTION VALVE
29120007551 选择阀进油管 INLET OIL PIPE OF SELECTOR VALVE
4120000448 压力选择阀SF8-C PRESSURE SELECTION VALVE SF8-C
4011000560 螺栓GB16674-M12*25EpZn-8.8 BOLT GB16674-M12*25EpZn-8.8
29120016741 管夹 CLAMP
29120016951 固定板 MOUNTED PLATE
29120016351 固定板 MOUNTED PLATE
4011000493 螺栓GB16674-M8*90EpZn-8.8 BOLT GB16674-M8*90EpZn-8.8
4190000020 扎丝LG13-ZS4*250 CLIP LG13-ZS4*250
29120017441 先导胶管(b2-2A) PIPE (b2-2A)
29120017431 先导胶管(b1-1A) PIPE (b1-1A)
4041001047 组合接头LGB143-01406 CONNECTOR LGB143-01406
4030000530 O形圈GB3452.1-6.00*1.80G O-RING GB3452.1-6.00*1.80G
4041001223 软管LGB125-003060 HOSE LGB125-003060
4041000027 分体法兰LGB117-312551 FLANGE LGB117312551
4041000716 防尘盖LGB134-01255 DUST-PREVENTION CAP
29120014792 前盖板 FRONT COVER PLATE
4011000081 螺栓GB5783-M10*20EpZn-8.8 BOLT GB5783-M10*20EpZn-8.8
4015000197 垫圈GB96.1-10EpZn-300HV WASHER GB96.1-10EpZn-300HV
29120017411 先导胶管(a1-1B) PIPE (a1-1B)
29120017421 先导胶管(a2-2B) PIPE（a2-2B)
29120018541 多路阀进油块 OIL INLET BLOCK
F2-2911000883 工作泵总成 WORKING PUMP ASSEMBLY
4017000013 喉箍JB8870-d90 CLAMP JB8870-d90
29110000021 工作泵吸油胶管 HOSE
29110007561 工作泵吸油钢管 OIL INLET TUBE OF WORKING PUMP
4011000479 螺栓GB16674-M12*30EpZn-8.8 BOLT GB16674-M12*30EpZn-8.8
4030000235 O形圈GB3452.1-43.7*3.55G O-RING GB3452.1-43.7*3.55G
4041000011 分体法兰LGB117-314650 FLANGE LGB117-314650
4013000011 螺母GB6170-M12EpZn-8 NUT GB6170-M12 EpZn-8
4015000168 垫圈GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV
4120000903 工作泵CBGj3100C WORKING PUMP CBGj3100C
29110007541 泵用密封垫 SEAL SPACER OF PUMP
4011000279 螺栓GB16674-M10*60EpZn-8.8 BOLT GB16674-M10*60EpZn-8.8
29110001021 出油钢管 OUT-OIL TUBE
4030000029 O形圈GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G
4041000056 分体法兰LGB117-312550 FLANGE LGB117-312550
4011000475 螺栓GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8
4041000055 软管LGB106-012085 PIPE LGB106-012085
4011000474 螺栓GB16674-M10*25EpZn-8.8 BOLT GB16674-M10*25EpZn-8.8
29110008841 三通块 TEE BLOCK
4041000774 螺塞LGB135-01422 PLUG LGB13501421
4041000767 O形圈LGB168-11124 O-RING LGB168-11124
29110009081 多路阀进油胶管 PIPE
F3-2913001219 举升缸总成 LIFT ARM CYLINDER ASSEMBLY
4120000600 动臂油缸HSGF-180*100*798-1348 LIFTING CYLINDER HSGF-180*100*798-1348
29130012441 左动臂缸小腔钢管 SMALL CHAMBER TUBE OF LEFT LIFT ARM CYLINDER
4011000473 螺栓GB16674-M10*55EpZn-8.8 BOLT GB16674-M10*55EpZn-8.8
4011000309 螺栓GB16674-M10*50EpZn-8.8 BOLT GB16674-M10*50EpZn-8.8
4030000026 O形圈GB3452.1-32.5*3.55G O-RING GB3452.1-32.5*3.55G
29130010861 动臂联大腔三通钢管 THREE-WAY OIL TUBE
4011000475 螺栓GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8
4030000029 O形圈GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G
29130010891 阀至左动臂缸大腔钢管 OIL TUBE OF LIFTING CYLINDER (L)
29130012111 左支架 LEFT BEARER
4011000479 螺栓GB16674-M12*30EpZn-8.8 BOLT GB16674-M12*30EpZn-8.8
29130010961 阀至左动臂缸小腔钢管 OIL TUBE OF LIFTING CYLINDER (L)
29130011001 钢管支架 BRACKET
4011000474 螺栓GB16674-M10*25EpZn-8.8 BOLT GB16674-M10*25EpZn-8.8
29130010981 动臂联小腔三通钢管 THREE-WAY OIL TUBE
4041001141 U形螺栓LGB159-03646 U-BOLT LGB159-03646
4041001142 底板LGB160-3646 PADDING LGB160-3646
4015000162 垫圈GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV
4013000007 螺母GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8
4041000958 U形螺栓LGB159-03040 U-BOLT LGB159-03040
4041001018 底板LGB160-3040 PLATE LGB160-3040
29130010571 动臂缸胶管 OIL PIPE OF LIFTING CYLINDER
4041000043 分体法兰LGB117-310490 FLANGE LGB117310490
29130000111 管夹 CLAMP
4011000458 螺栓GB16674-M8*20EpZn-8.8 BOLT GB16674-M8*20Ep.Zn-8.8
29130000051 右动臂缸大腔钢管 OIL TUBE TO BIG CHAMBER OF RIGHT LIFTING CYLINDER
4011000488 螺栓GB16674-M10*16EpZn-8.8 BOLT GB16674-M10*16EpZn-8.8
29130010371 管夹 CLAMP
4041000869 缓冲套LGB123-0740 CUSHION LGB123-0740
4013000033 螺母GB6170-M8EpZn-8 NUT GB6170-M8EpZn-8
4015000072 垫圈GB97.1-8EpZn-300HV WASHER GB97.1-8EpZn-300HV
29130000031 左动臂缸大腔钢管 OIL TUBE TO BIG CHAMBER OF LEFT LIFTING CYLINDER
29130010941 阀至右动臂缸小腔钢管 OIL TUBE OF LIFTING CYLINDER (R)
29130010921 阀至右动臂缸大腔钢管 OIL TUBE OF LIFTING CYLINDER (R)
29130012461 右动臂缸小腔钢管 RIGHT LIFTING CYLINDER SMALL CHAMBER TUBE
29130012131 右支架 RIGHT BEARER
F4-2914001008 转斗缸总成 TILT CYLINDER ASSEMBLY
29140008501 转斗指示板 INDICATIONG PLATE
4011000145 螺栓GB16674-M14*35EpZn-8.8 BOLT GB16674-M14*35EpZn-8.8
4013000013 螺母GB6170-M14EpZn-8 NUT GB6170-M14EpZn-8
29140009811 放平护板 SET LEVEL GUARD SHEET
4011000081 螺栓GB5783-M10*20EpZn-8.8 BOLT GB5783-M10*20EpZn-8.8
4015000197 垫圈GB96.1-10EpZn-300HV WASHER GB96.1-10EpZn-300HV
4015000162 垫圈GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV
4120000601 转斗油缸HSGF-210*110*550-1098 TILT CYLINDER HSGF-210*110*550-1098
4041000774 螺塞LGB135-01422 PLUG LGB13501421
4041000767 O形圈LGB168-11124 O-RING LGB168-11124
29140008521 转斗缸大腔钢管 BIG CHAMBER TUBE OF TILT CYLINDER
4011000309 螺栓GB16674-M10*50EpZn-8.8 BOLT GB16674-M10*50EpZn-8.8
