Description

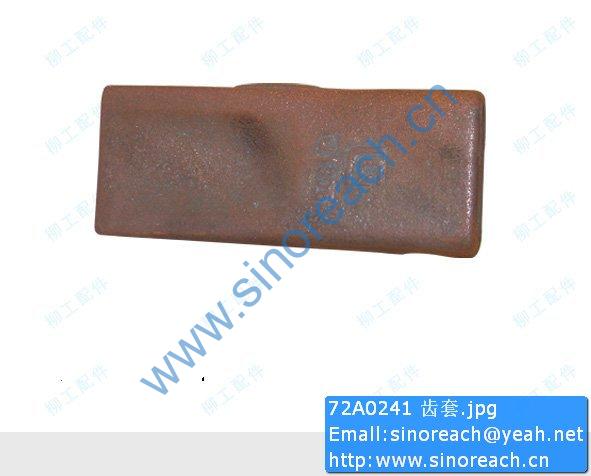

72A0241 Bucket tooth sleeve for LIUGONG spare part
34B0188 button Horn button
34B0447 Travel joystick; assembly controls the direction of travel of the paver
37B0164 bulb H3.24.70W work light circuit
34B0187 ignition switch
38B0041 electric horn centralized control control circuit
34B0088 Power switch 6EK001559-001 control box assembly
08C1881 Cable from main power switch to starter motor
08C1940 engine wiring harness
34B0448 direction knob; assembly parts “left steering operation or
Turn right to operate”
32B0102 work light work light circuit
08C1929 Rear work light wiring harness Work light wiring
35B0087 Timer
31B0064 Relay 4RD 003 520-157 19 pcs/car
31B0062 Relay 4RA 003 437-051 1pcs/car
34B0183 Start button After the engine is started, only press the button once, the paver’s spiral material distribution, scraper conveying, and vibrating mechanism can start working
31B0066 Controller; assembly parts
34B0178 Vibration knob assembly Vibration frequency adjustment, vibration frequency adjustment
34B0177 Toggle switch 8pcs/car
34B0185 Toggle switch 5pcs/car
34B0206 Toggle switch 6pcs/car
34B0184 Toggle switch (with sheath); assembly parts 1 pcs/car
37B0104 Chip fuse link BX2011A20A BX2011A(20A) 2pcs/car
37B0172 Chip fuse 10A 8JS711 686-002 23 pcs/car
37B0171 Disc fuse 30A 8JS711 690-002 2pcs/car
37B0174 chip fuse 5A 8JS 711 684-002 3 pcs/car
31B0006 Starting relay MZJ-50A/006 MZJ-50A/006 Control box assembly
30B0131 pressure switch; assembly parts oil pressure switch
30B0011 Fuel sensor 224082005028R change to 30B0166
30B0010 Hydraulic oil temperature alarm switch X10232001003
35B0088 oil level gauge
35B0090 water temperature meter
30B0183 Water temperature sensor 323801001010K/N 323 801 001 010K/N
08C0911 Speed sensor cable control box assembly
34B0449 Speed knob; fitting
35B0101 small display
08C1928 Front work light wiring harness Work light wiring
08C1939 Frame wiring harness Centralized control control line
37B0108 battery; 120Ah/850CCA; assembly parts 2 pcs/car
08C1909 Grounding cable
08C1879 Battery grounding cable
08C1878 Battery connection cable
08C1880 Battery positive to main power switch cable
35B0091 Combination warning light
08C1950 spiral cable 2pcs/set 46C2117 contact leveling system
24C0369 Sensing arm 2/set 46C2117 contact leveling system
24C0370 sliding pipe 2/set 46C2117 contact leveling system
24C0371 sliding shoes 2 pcs/set 46C2117 contact leveling system
34C0922 ABS plastic box 1pc/set 46C2117 contact leveling system
46C2141 vertical slope leveling instrument 2/set 46C2117 contact leveling system
24C0596 Right scraper controller; ASSY 1/set
24C0597 left scraper controller; ASSY 1/set
46C2143 Ultrasonic Level Meter 2pcs/set
08C1951 Spiral cable 2pcs/set
46C0961 Auxiliary control box has the same function and can be interchanged. Auxiliary control circuit
47C0910 Remote control box assembly; ASSY auxiliary control circuit
33B0077 Connecting cable L7M 2pcs/set Auxiliary control circuit
