Description

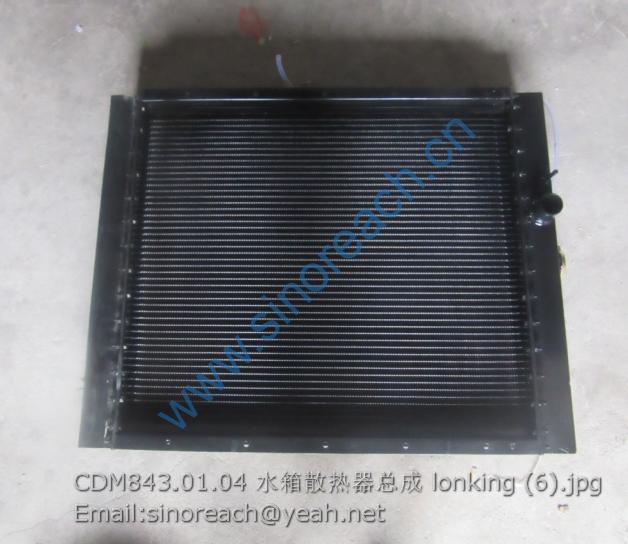

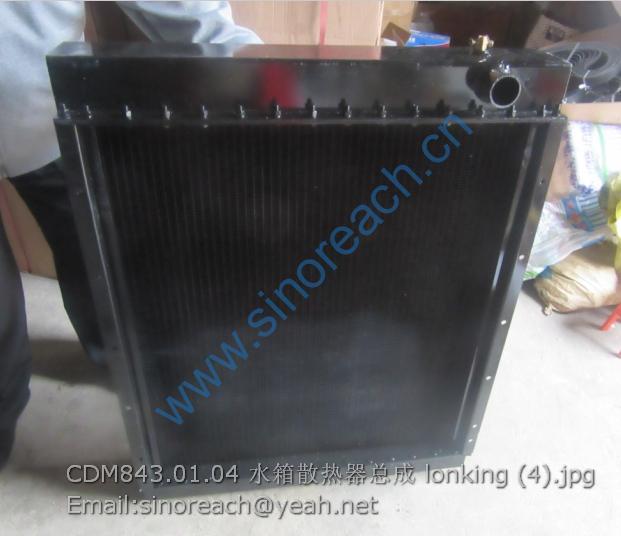

CDM843.01.04 Water tank radiator assembly for LONKING spare parts

LG853.02.01 变矩器总成 Torque converter assembly 1 402000
2 GB/T93 垫圈 10 Washer 10 12
3 GB/T6171 螺母 M10×1 Nut M10×1 12
4 LG853.02-001 双头螺栓 Stud 12 402237
5
LG853.02.02 双变油路总成
Transmission and torque converter oil
circuit assembly
1
6 GB/T93 垫圈 12 Washer 12 12
7 GB/T5782 螺栓 M12×45 Bolt M12×45 12
8 LG853.02-002 吸油管 Oil suction hose 1 A90°307°38Ⅰ×1800

1 LG853.02.01-001 机芯总成 Torque converter element assembly 1 402000-1
2 LG853.02.01-012 衬垫 Pad 1 402215
3 LG853.02.01-013 观察盖 Observing cover 1 402214A
4 LG853.02.01-002 变矩器壳体 Torque converter case 1 402216
5 JB/T8547-97 金属密封环 YHX125 Seal ring YHX125 1
6 GB/T5782 螺栓 M10×25 Bolt M10×25 9
7 GB/T93 垫圈 10 Washer 10 9
8 LG853.02.01-003 导轮座 Idler wheel seat 1 402222
9 LG853.02.01-004 铜垫圈 Copper seat 2 402106
10 LG853.02.01-005 管接头 Pipe connector 2 402111A
11 LG853.02.01-007 弹簧Ⅰ Spring Ⅰ 1 402229

12 LG853.02.01-008 进口阀芯 Inlet valve core 1 402233
13 LG853.02.01-006 阀盖 Valve cap 1 402228A
14 LG853.02.01-011 螺塞 Z3/4” Plug screw Z3/4” 1 402223
15 GB/T5781 螺栓 M8×20 Bolt M8×20 2
16 GB/T93 垫圈 8 Washer 8 8
17 GB/T5781 螺栓 M8×16 Bolt M8×16 6
18 LG853.02.01-015 出口阀芯 Outlet valve core 1 402234
19 LG853.02.01-010 弹簧Ⅱ Spring Ⅱ 1 402231A
20 LG853.02.01-009 盖板 Cover board 1 402230A
21 LG853.02.01-014 回油接头 Oil return connector 1 402204

1 JB1002-77 垫圈 27 Washer 27 4
2 LG853.02.02-001 铰接螺栓 Articulating bolt 2 402002A
3 90B-45Q/25/28-Ⅰ-L2100 冷却器至变矩器胶管 Hose from cooler to torque converter 1
4 90B-90Q/25/28-Ⅰ-L1930 变矩器至冷却器胶管 Hose from torque converter to cooler 1
5
180B-90 ° -90B-25/28- Ⅰ
-L1080(M36×2)
变矩器至滤清器胶管 Hose from torque converter to filter 1
6 LG853.02.02-002 接头体 Adapter 1 402014B
7 JB1002-77 垫圈 30 Washer 30 1
8 LG853.02.02.01 滤油器 Oil filter 1 YL-98-00
9 GB/T5783 螺栓 M8×35 Bolt M8×35 4
10 GB/T6170 螺母 M8 Nut M8 4

11 GB/T93 垫圈 8 Washer 8 4
12 GB/T97.1 垫圈 8 Washer 8 8
13 LG853.02.02-003 接头体 Adapter 1 402113B
14 JB1002-77 垫圈 22 Washer 22 1
15
90B-B/25/28-IIBZ-25/18B
G-L750
滤油器出油胶管 Oil filter outlet hose 1

1 GB/T93 垫圈 18 Washer 18 4
2 GB/T6170 螺母 M18 Nut M18 2
3 LG853.03-001 弧形垫圈 Arc washer 2 403035
4 LG853.03-002 橡胶垫 Rubber pad 2 403031
5 GB/T5782 螺栓 M18×140 Bolt M18×140 2
6 LG843.03.01 变速箱总成 Transmission assembly 1 403000
7 GB/T5783 螺栓 M10×25 Bolt M10×25 1
8 GB/T97.1 平垫 10 Washer 10 1
9 GB/T93 垫圈 10 Washer 10 1
