Description

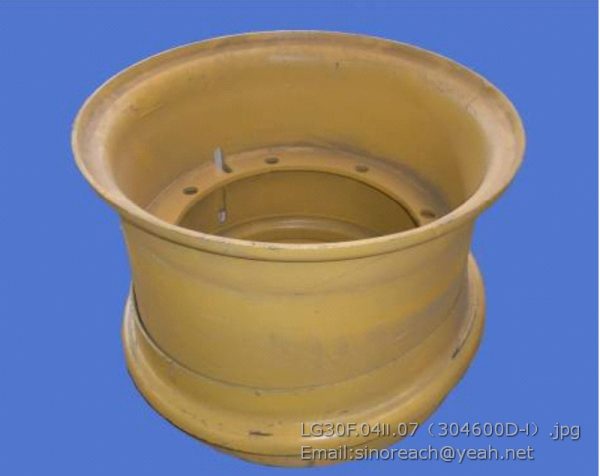

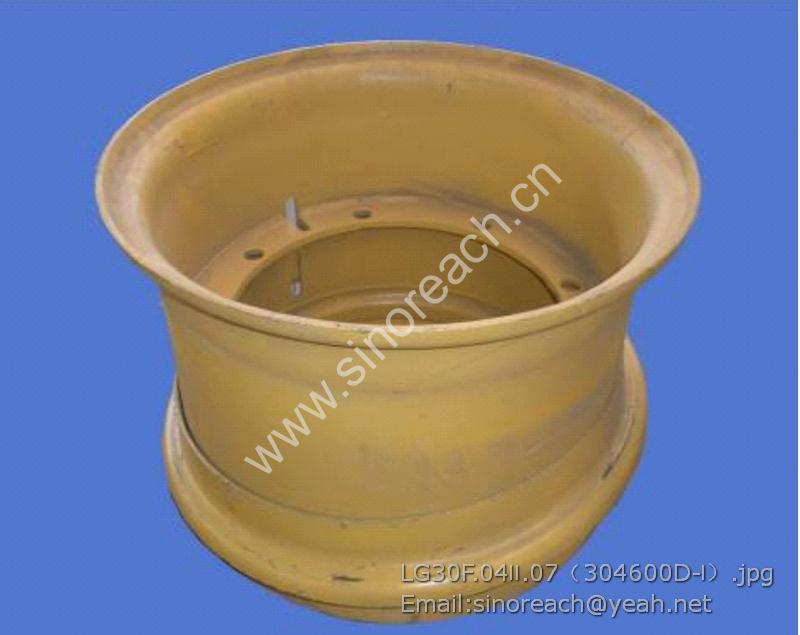

LG30F.04Ⅱ.07 304600D -Ⅰ LG30F.04Ⅰ.07 Rim assembly FOR LONKING spare part

LG50F.07035A 前(后)车架进油过渡接头压板 Front/rear frame oil inlet transit adaptor press plate 2 LG853.07-002
32B-4S-L1260 铰接进油胶管 Articulation oil inlet hose 1
38/42-Ⅰ-L575 回油胶管 Oil return hose 1
LG50F.07036-036B 前车架进油过渡接头 Front frame oil inlet transit connector 1 LG50EX.07.05
90B-B/25-2S-L1500 动臂缸胶管 Lift cylinder hose 4
LG50F.07023A 管夹 Pipe clip 8 LG855.07-001
GB/T5783-86 螺栓 M8×25 Bolt M8×25 8
GB/T93-87 垫圈 8 Washer 8 10
GB/T6170-86 螺母 M8 Nut M8 8
GB/T5782-86 螺栓 12×180 Bolt 12×180 3
LG50F.07010-011A 分配阀动臂联后腔钢管（一） Rear chamber tube (I) of distribution valve lift chamber 1 LG50EX.07.06
LG50F.07006-008A 分配阀动臂联前腔钢管（一） Front chamber tube (I) of distribution valve lift chamber 1 LG50EX.07.07
LG50F.07016A 压板 Press plate 1 LG50EX.07-001
GB5783-86 螺栓 M12×45 Bolt M12×45 8
LG50E.07014-014A 分配阀进油胶管 Distribution valve inlet hose 1
GB1235-76 O形圈 Ф50×3.1 O-ring Ф50×3.1 2
LG50F.07012-012A 分配阀动臂联后腔钢管（二） Rear chamber tube (Ⅱ) of distribution valve lift chamber 1 LG50EX.07.08
LG50F.07009-009A 分配阀动臂联前腔钢管（二） Front chamber tube (Ⅱ) of distribution valve lift chamber 1 LG50EX.07.09
LG50F.07004-004A 动臂油缸前腔钢管 Front chamber tube of lift cylinder 2 LG855.07.05（06）
LG50F.07022A 管夹 Pipe clip 1
GB/T5782 螺栓M8×55 Bolt M8×55 2
LG50F.07200A 动臂油缸 Lift cylinder 2 LG855.07I.02
LG50F.07024A 管夹 Pipe clip 2 LG50EX.07-002
GB/T6170 螺母 M10 Nut M10 2
LG50F.07013-013A 分配阀转斗联钢管 Distribution valve tilt channel tube 2 LG855.07.19
LG50F.07015-015A 分配阀回油钢管 Distribution valve oil return tube 1 LG50EX.07.10

D32 液控多路换向阀（二联） Duplex implement valve 1 LG50EX.07.04
LG50F.07500A 液压油箱 Hydraulic oil tank 1
LG50F.07019-020A 液压系统回油钢管 Hydraulic oil return tube 1 LG50EX.07.12
GB3452.1-82 O形圈 58×3.55 O-ring Ф58×3.55 1
LG50F.07037A 压板 Press plate 1 LG853.07-001
LG50F.07038-039A 工作泵进油钢管 Implement pump inlet tube 1 LG855.07.22
GB3452.1-82 O形圈 51.5×3.55 O-ring Ф51.5×3.55 1
GB5782-86 螺栓 M12×90 Bolt M12×90 4
