Description

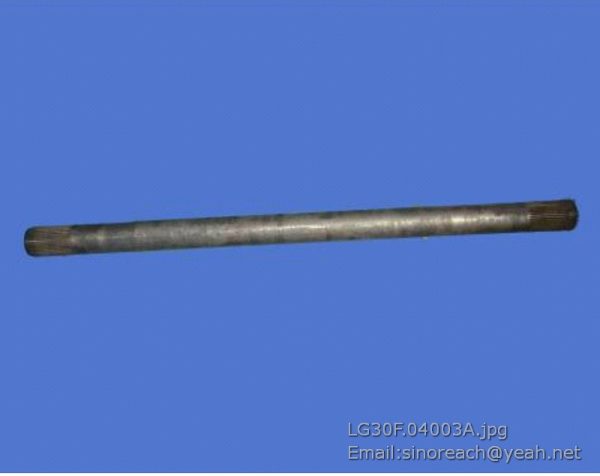

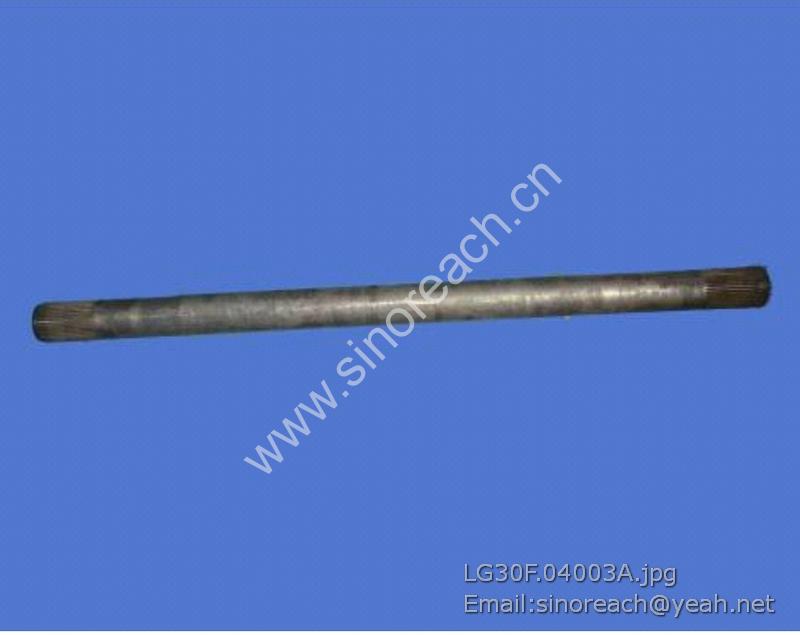

LG30F.04003A LG30F.04I.01-003 Axle shaft for LONKING spare part

LG50F.09002A 手控制动阀出气接头 Control valve air outlet connector 3 LG50EX.09-001
GB/T1002 紫铜密封垫圈 Ф10 Copper seal washer Ф10 1
GB/T93 垫圈 16 Washer 16 2
GB/T97.1 垫圈 16 Washer 16 2
GB/T5783 螺栓 M16×45 Bolt M16×45 2
LG50F.09007-008A 驻车制动气室固定座 Parking brake air chamber holder 1 LG50EX.09.04
LG50F.09003A 切断气缸进气接头 Cutoff cylinder air inlet connector 2 LG50EX.09-003
GB/T1002 紫铜密封垫圈12 Copper seal washer 12 2
QZ50 驻车制动气室 Parking brake air chamber 1 LG50EX.09.02
LG50F.09004A 制动盘 Brake disc 1
TC5Z(A) 驻车制动器 Parking brake 1
GB/T5786 螺栓 M16×1.5×45 Bolt M16×1.5×45 8
GB/T93 垫圈 16 Washer 16 1
LG50F.09005A 制动钳总成固定板 Brake caliper assembly securing plate 1
GB/T5783 螺栓 M16×50 Bolt M16×50 3
GB/T5783 螺栓 M14×50 Bolt M14×50 4
GB/T93 垫圈 14 Washer 14 4
90C/-C/8-I-L1800 手控制动阀至驻车制动气室软管 Hose from control brake valve to air chamber 1
XZ 切断气缸 Cutoff cylinder 1 LG50EX.09.03
90C/-C/8-I-L1400 手控制动阀至切断气缸软管 Hose from control valve to cutoff cylinder 1
QZ50 手控制动阀 Manual control valve 1 LG50EX.09.01
LG50F.09001A 手制动阀进气接头 Control valve air inlet connector 1 LG50EX.09-002

前车架总成 Front frame assembly 1
后车架总成 Rear frame assembly 1
GB/T5782 螺栓M12×110 Bolt M12×110 8 GB/T297-1994
GB/T93 垫圈12 Washer 12 22 LG853.10-008
GB/T6170 螺母M12 Nut M12 8 LG853.10-007
GB297-84 7515E 轴承32215 Bearing 32215 4
510014C 端盖 End cover 1
510012C 铰接销 Hitch pin 2
GB/T5783 螺栓M20×35 Bolt M20×35 2
GB/T93 垫圈20 Washer 20 2
510011C 压板 Press plate 2 LG853.10-006
GB/T13871-1992 FB形油封75×100×12 FB-type oil seal75×100×12 2
510013C 上轴承盖 Upper bearing cover 2 LG853.10-005
510015C 下轴承盖 Lower bearing cover 2 LG853.10-004
510018C 调整垫 Shims 2 LG853.10-003
LG50F.10020A 上轴套 Upper shaft sleeve 1 LG853.10-001
510017C 下轴套 Lower shaft sleeve 1 LG853.10-002
GB/T13871-1992 FB形油封85×110×12 FB-type oil seal 85×110×12 2
GB/T5783 螺栓M12×35 Bolt M12×35 14
LG855.10-006 调整垫圈 Spacer 2
LG853.10-022 下端盖 Lower end cover 1
