Description

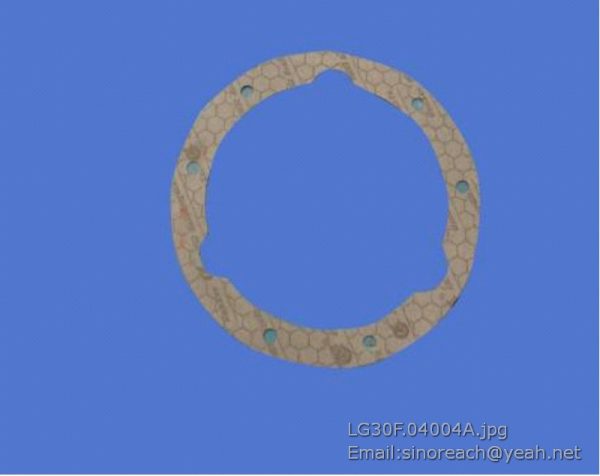

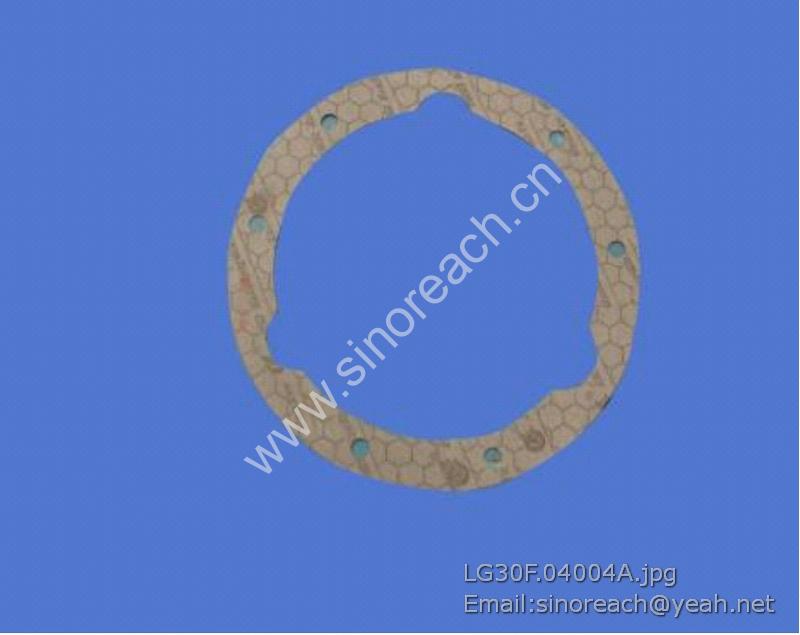

LG30F.04004A LG30F.04Ⅰ.01-004 Gasket for LONKING

LG50EX.10.01 前车架 Front frame 1
GB/T5783 螺栓M10×20 Bolt M10×20 4
GB/T93 垫圈10 Washer 10 4
LG855.10001A 盖板 Cover plate 1 LG855.10-001
LG50F.10002-003A 翻斗缸后销轴焊合 Rear pin weldment of tilt cylinder 1 LG855.10.04
GB/T1152 油杯M10×1 Oil cup M10×1 13 JB/T7940.1-1995
GB/T5783 螺栓M20×35 Bolt M20×35 5
GB/T93 垫圈20 Washer 20 5
GB/T97.1 垫圈20 Washer 20 5
LG50F.10005-005A 动臂上销轴焊合 Upper pin weldment of lift arm 2 LG855.10.05
LG50F.10007-008A 动臂缸后销轴焊合 Rear pin weldment of lift cylinder 2 LG855.10.06
LG50F.10015-016A 前转向销轴焊合 Front turn pin weldment 2 LG855.10.11
LG50F.10017A 转向缸前垫套 Front bush of steering cylinder 2 LG855.10-005
LG50F.10018-018A 右前转向销注油管 Right front turn pin oil filling pipe 1 LG855.10.12
LG855.10.13 左前转向销注油管 Left front turn pin oil filling pipe 1

LG50F.10011-012A 后转向销轴焊合 Rear turn pin 2 LG855.10.07
LG50F.10013A 转向缸后垫套 Rear bush of steering cylinder 2 LG855.10-002
GB/T5783 螺栓M16×35 Bolt M16×35 4
LG50E.10001-002A 油箱固定座 Oil tank securing seat 2 LG855.10.08
LG50EX.10.02 后车架 Rear frame 1
510009C 双变滤清器支架 Transmission and torque converter filter bracket 1 LG855.10-003
LG50F.10300B 副车架 Oscillating suspension 1 LG855.10.03
LG50F.10035A 铜垫 Copper washer 2 LG855.10-004
LG50F.10033-034A 副车架销 Oscillating suspension pin 2 LG855.10.09
LG50F.10042-042A 副车架注油管1 Oscillating suspension oil filling pipe 1 1 LG855.10.10
GB/T5783 螺栓M16×50 Bolt M16×50 4
LG50F.10041-041A 副车架注油管2 Oscillating suspension oil filling pipe 2 1 LG855.10.14
LG50F.10032A 副车架销轴套 Oscillating suspension pin bush 2 LG855.10-007
LG50D.15008B 线夹 Wire clip 2 LG853.01-005
GB/T5783 螺栓M8×20 Bolt M8×20 3
GB/T93 垫圈8 Washer 8 3
GB/T97.1 垫圈8 Washer 8 3
