Description

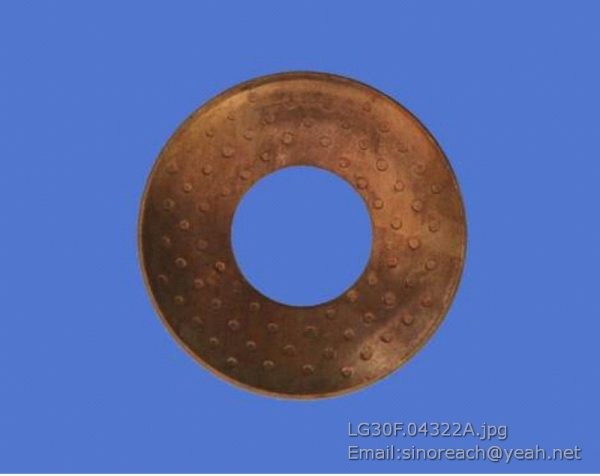

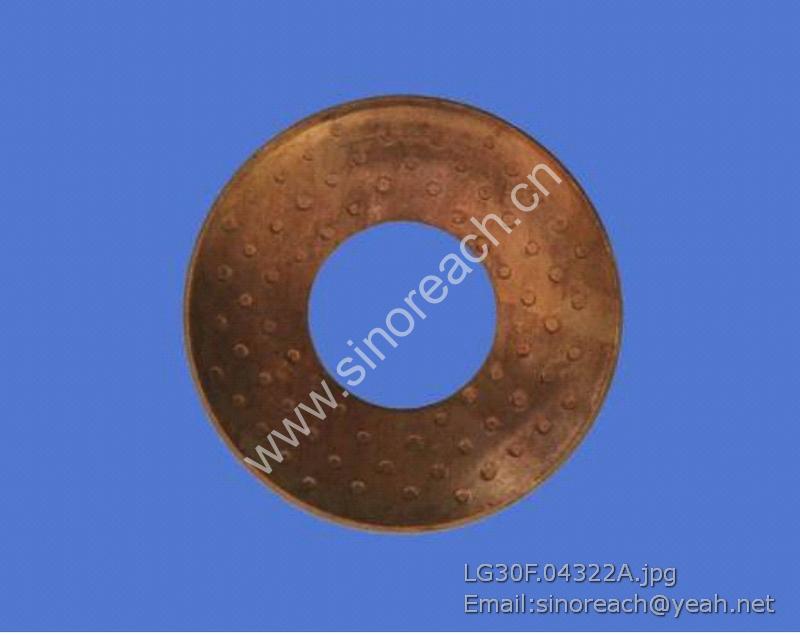

LG30F.04322A Bevel gear washer for LONKING part

1 60911013236 HB/T2491 胶管8×12×800 HOSE 8×12×800 1
2 60102000002 20Y-06-15240 副水箱总成 AUXILIARY RADIATOR ASS’Y 1
3 30601000192 LG6235.01.02 副水箱支架 AUXILIARY RADIATOR 1
SUPPORT
4 60911013227 HG/T2491 胶管8×12×1500 HOSE 8×12×1500 1
5 60100002292 4973.049.0000 散热器 RADIATOR ASS’Y 1
6 30601100888 LG6235E.01.06-01 右隔热海绵 SPONGE 1
7 30601100893 LG6235E.01.06-06 上隔热海绵Ⅰ SPONGE Ⅰ 1
8 30601100889 LG6235E.01.06-02 隔热板 HEAT SHIELD 1
9 30601100894 LG6235E.01.06-07 上隔热海绵Ⅱ UPPER SPONGE Ⅱ 1
10 51204091022 GB/T5783 螺栓 M8×20 BOLT M8×20 8
11 51420090122 GB/T96.1 垫圈8 WASHER 8 8
12 30601005184 LG6235E.01.06.01A 护网 PROTECTING WIRE NET 1
13 30601100892 LG6235E.01.06-05 下隔热海绵 BOTTOM SPONGE 1
14 30601100890 LG6235E.01.06-03 左隔热海绵 REAR SIDE SPONGE 1
15 30601000274 LG6235E.01.06.02 撑杆 BRACE ROD 1
16 51204111322 GB/T5783 螺栓 M12×35 BOLT M12×35 2
17 51427110122 GB/T1230 垫圈12 WASHER 12 6
18 60919010054 WD018 胶条 L1300 STRIP 1
19 60922010009 8065-208-0000 减震垫总成 STRIP PAD ASS’Y 4
20 30601100541 LG6270.01.01-10 调整垫 ADJUSTING SHIM 4
21 56993001801 DIN3016-1 卡箍 D2-15~30/20 CLAMP D2-15~30/20 1
22 60911013230 HG/T2491 胶管 8×12×300 HOSE 8×12×300 1
23 56932000101 QC/T621 卡箍 B-10/8 CLAMP B-10/8 4
24 51204101122 GB/T5783 螺栓 M10×25 BOLT M10×25 4
25 51421100121 GB/T97.1 垫圈 10 WASHER 10 4
26 30601100895 LG6235E.01.06-08 垫片一 WASHER Ⅰ 1
27 30601100896 LG6235E.01.06-09 垫片二 WASHER Ⅱ 1
28 51204133722 GB/T5783 螺栓 M16×40 BOLT M16×40 1
29 51420130122 GB/T96.1 垫圈 16 WASHER 16 1
30 51203112221 GB/T5782 螺栓 M12×80 BOLT M12×80 4
31 51307001122 GB/T6170 螺母 M12 NUT M12 4

1 60206000162 LGWZ085-06 螺塞 R1/8×7 BOLT R1/8×7 1
2 37503100019 LGWY230-03 引导轮支座1 SUPPORT 1, FRONT IDLER 1
3 51513222003 GB/T119.1 销18h8×108 PIN 18h8×108 2
4 51207131418 GB/T5786-2000 螺栓 M16×1.5×40 BOLT M16×1.5×40 4
5 60206000152 LGWY085-07 弹簧垫圈 16 SPRING WASHER 16 4
6 60980000334 O 形圈 112×9.5 O-RING112×9.5 4
7 60206000158 LGWY230-05 浮封环 SEAL RING 4
8 60206000159 LGWY230-06 轴套 BUSH 2
9 60980000312 C00209-AO O 形圈 69.4×3.1 O-RING69.4×3.1 2
10 37503100018 LGWY230-02 引导轮轴 SHAFT, FRONT IDLER 1
11 37503100020 LGWY230-04 支座连臂 YOKE 1
12 37503100017 LGWY230-01 引导轮轮体 FRONT IDLER BODY 1
13 37503100019 LGWY230-07 引导轮支座 1 SUPPORT 2, FRONT IDLER 1

1 60206000162 LGWZ085-07 螺塞 R1/8×7 BOLT R1/8×7 1
2 37502100023 LGWZ230-01 浮动油封座1 SEAT, FLOATING GREASE 1
SEAL 1
3 51513152803 GB/T119.1-2000 圆柱销16×80 PIN16×80 2
4 60980000335 O 形圈93×9 O-RING93×9 4
5 60206000167 LGWZ230-03 浮封环 SEAL RING 4
6 60206000168 LGWZ230-04 轴套 BUSHING 2
7 60980000309 C00207-AO O 形圈59.4×3.1 O-RING59.4×3.1 2
8 37502100024 LGWZ230-02 直轴 SHAFT 1
9 37502000005 LGWZ230.01 轮体焊合 TRACK ROLLER BODY 1
10 37502100027 LGWZ210-05 浮动油封座 2 SEAT, FLOATING GREASE 1
SEAL 2
