Description

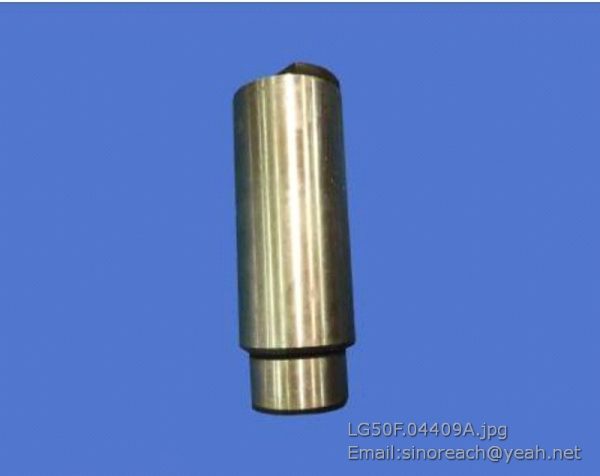

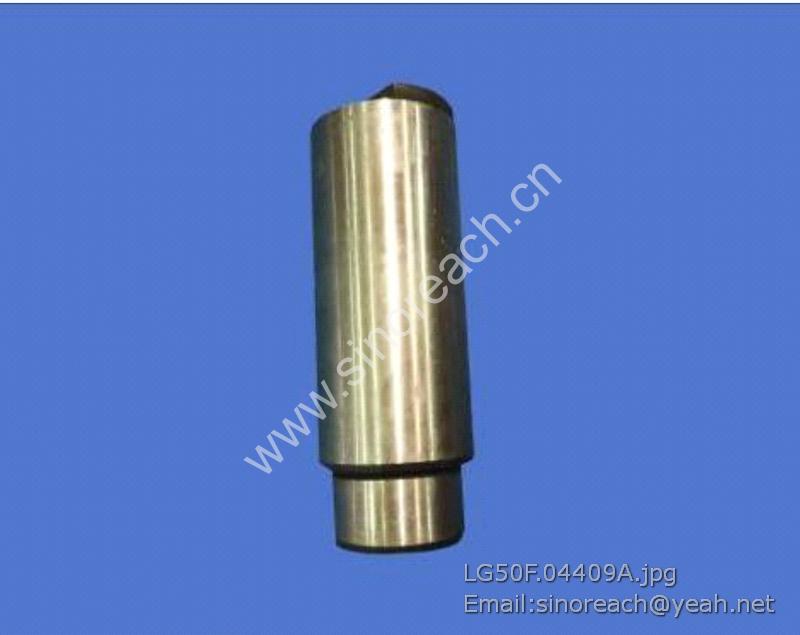

LG50F.04409A Planet gear shaft for LONKING part

1 GB/T6170 螺母 M10 Nut M10 1
2 GB/T93 垫圈 10 Washer 10 5
3 GB/T97.1 垫圈 10 Washer 10 1
4 LG855.06.02.01 方向盘总成 Steering wheel assembly 1
5 LG853.06.02.02 导电套 Conducting bush 1 306114-115D
6 GB/T5783 螺栓 M6×12 Bolt M6×12 2
7 GB/T93 垫圈 6 Washer 6 3
8 LG853.06.02-001 电锁固定板 Electric lock fixing board 1 306113D
9 LG853.06.02.03 组合开关固定板 Combination switch fixing board 1 306110-111D
10 GB276-89 单列向心球轴承 104 Single-row radial ball bearing 104 1
11 GB/T5783 螺栓 M6×20 Bolt M6×20 1
12 LG853.06.02.04 转向轴 Steering shaft 1
13 LG853.06.02.05 外套管 External sleeve 1
14 GB/T5782 螺栓 M10×85 Bolt M10×85 4
15 GB/T301-1995 滚动轴承 51106 Roller bearing 51106 1
16 LG853.06.02.08 固定座 Fixing bracket 1
17 LG853.06.02.07 转向器（阀块） Redirector (valve) 1 TLF-E1000C
18 LG853.06.02-003 调整垫 Spacer 1 （FKBR3020）
19 GB/T6170 螺母 M6 Nut M6 1

1 GB/T5783 螺栓 M10×20 Bolt M10×20 6
2 GB/T93 垫圈 10 Washer 10 80
3 GB/T97.1 垫圈 10 Washer 10 4
4 LG855.07-009 转斗油缸保护板 Tilt cylinder fender apron 1
5 LG853.07-005 转斗油缸连接密封座 Tilt cylinder connecting bracket 2
6 GB/T3452.1-1992 O 形圈 95×5.3 O-ring 95×5.3 6
7 GB/T3452.1-1992 O 形圈 80×5.3 O-ring 80×5.3 2
8 LG855.07.01 转斗油缸 Tilt cylinder 1 LG50F.07100A
9 GB/T5782 螺栓 M10×70 Bolt M10×70 24
10 GB1235-76 O 形圈 38×3.5 O-ring 38×3.5 6
11 LG855.07.03 转斗油缸前腔钢管 Tilt cylinder front chamber pipe 1
12 30F(32)-H/25/28-2S-L
1500 分配阀至转斗缸胶管 Hose from distribution valve to tilt
cylinder 2
13 LG855.07.04 转斗油缸后腔钢管 Tilt cylinder rear chamber pipe 1 LG50F.07003-003A
14 LG855.07II.05 动臂油缸前腔钢管 Lift cylinder front chamber pipe 1
15 LG855.07II.06 动臂油缸前腔钢管 Lift cylinder front chamber pipe 1
16 LG855.07I.07 动臂油缸后腔钢管 Lift cylinder rear chamber pipe 1
17 LG855.07I.08 动臂油缸后腔钢管 Lift cylinder rear chamber pipe 1 LG855.07I.07
18 LG853.07-006 动臂油缸连接密封座 Lift cylinder connecting bracket 2
19 GB/T3452.1-1992 O 形圈 71×5.3 O-ring 71×5.3 4
20 80H-H/25/28-2S-L1500 动臂缸胶管 Lift cylinder hose 4
21 H-H/38/42-I-L435 分配阀回油胶管 Distribution valve oil return hose 1
22 LG855.07-001 管夹 Pipe clip 2

23 GB/T5783 螺栓 M8×80 Bolt M8×80 2
24 GB/T97.1 垫圈 8 Washer 8 12
25 GB/T93 垫圈 8 Washer 8 4
26 GB/T6170 螺母 M8 Nut M8 12
27 LG853.07-004 后车架回油过渡接头压板 Rear frame oil return transition
connector press plate 2 LG50F.07031A
28 GB/T5782 螺栓 M10×50 Bolt M10×50 4
29 LG855.07.09 前车架回油过渡接头 Front frame oil return transition
connector
1 LG50F.07032-033A
30 H-H/38/42-II-L1152 铰接回油胶管 Articulated oil return hose 1
31 H-H/32/34-4S-L1260 铰接进油胶管 Articulated oil inlet hose 1
32 LG853.07-002 前(后)车架进油过渡接头
压板
Front (rear) frame oil inlet transition
connector press plate 2 LG50F.07035A
33 GB/T5782 螺栓 M10×42 Bolt M10×42 4
34 P5100-F100NM457 97/
P124-G10Y03G 工作/先导双联泵 Implement and pilot duplex pump 1
35 LG853.06-001 密封垫片 Seal gasket 1
36 GB/T97.1 垫圈 12 Washer 12 2
37 GB/T6170 螺母 M12 Nut M12 7
38 GB/T93 垫圈 12 Washer 12 15
39 φ51×4-L520 吸油胶管 Oil suction hose 1
40 JB/T8870-1999 喉箍φ51-70 Hoopφ51-70 2
41 LG853.07-007 压板 Press plate 8 LG50F.06012A
42 GB1235-76 O 型圈 45×3.5 O-ring 45×3.5 8
