Description

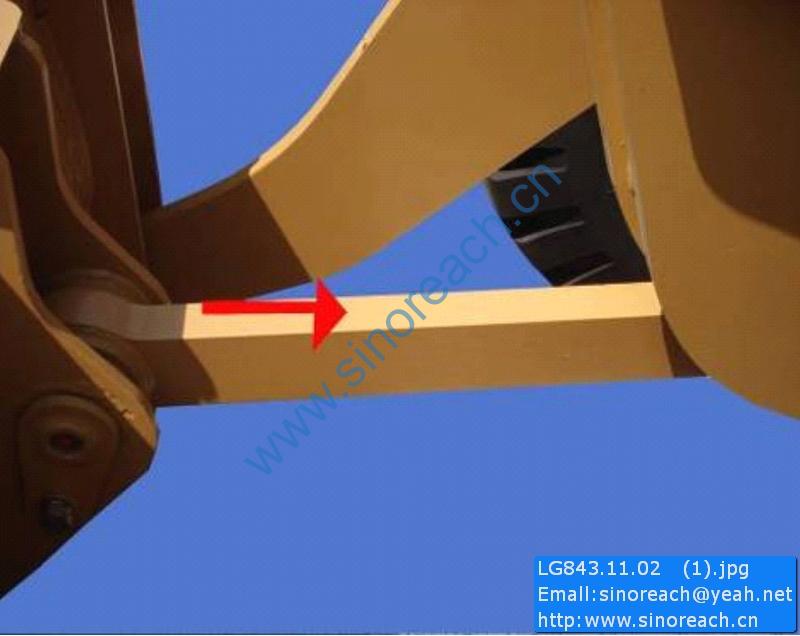

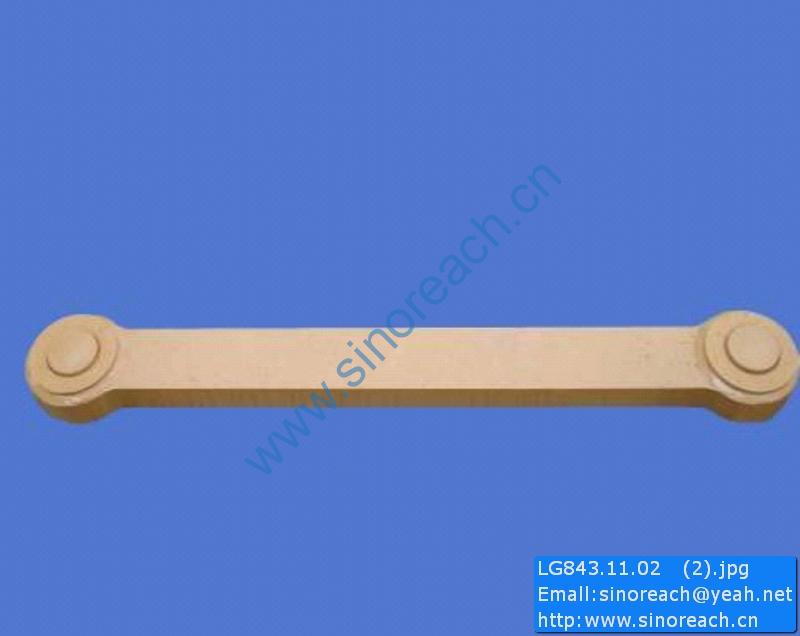

LG843.11.02 Pull rod CDM843 parts

1 W-02-00053 排气尾管 Pipe,Exhast 1
2 W-02-00133 消声器 Muffler 1
3 B-G057830-00146 螺栓M8×30ZnD Bolt 4
4 WZ30C.1B.5 消声器支架 Bracket 1
5 B-Q020490-00003 垫圈12 Washer 4
6 B-G061700-00007 螺母M12ZnD Nut 4
7 B-Q020490-00023 垫圈8 Washer 4
8 B-G061700-00036 螺母M8ZnD nut 4
9 WZ30C.1B-2 排气接管 Pipe 1
10 B-G057830-00146 螺栓M8×30ZnD Bolt 4
11 B-G00097B-00023 垫圈8ZnD Washer 4
12 B-G000930-00017 垫圈8 Washer 4

1  W-02-00115 预滤器 Cap 1
2 W-02-00042 空滤器总成 Air Filter 1
3 WZ30.1-5 卡箍 Clamp 1
4 B-G057830-00006 螺栓M10×25ZnD Bolt 2
5 B-G00097B-00002 垫圈10ZnD Washer 2
6 B-G061700-00003 螺母M10ZnD Nut 2
7 WZ30.1B.6 接管 Pipe 1
8 B-G00097B-00002 垫圈10ZnD Washer 1
9 B-G000930-00001 垫圈10 Washer 3
10 B-G057830-00010 螺拴M10×30ZnD Bolt 1
11 B-G061700-00003 螺母M10ZnD nut 1
12 WZ30C.1B-4 进气胶管 Hose 1
13 WZ30C.1B.7 接管 Joint pipe 1
14 WZ30C.1B-5 进气胶管 Hose 1
15 B-J088700-00019 喉箍d80 Clamp 2
16 B-J088700-00004 喉箍d120 Clamp 2
