Description

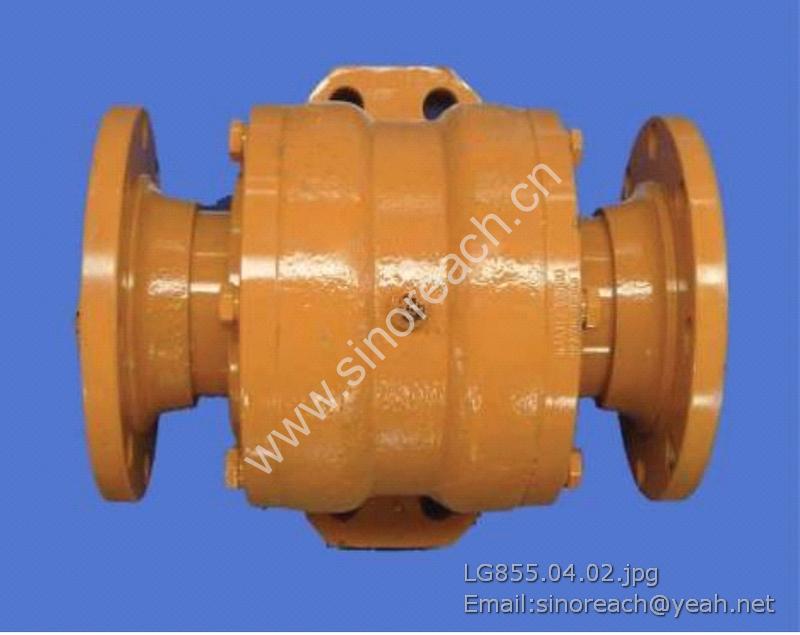

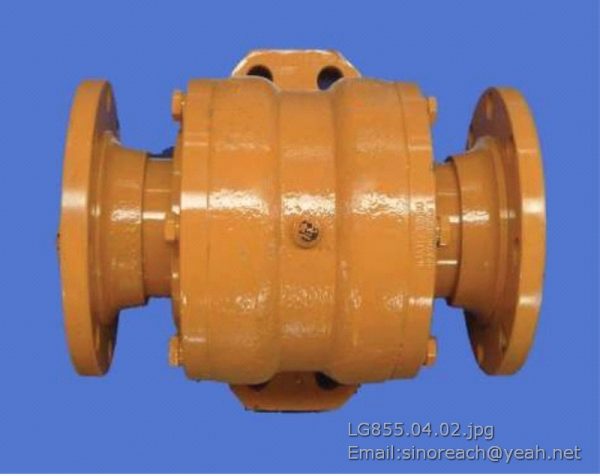

LG855.04.02 CDM856E.04.02 LG50F.04202A Intermediate support for LONKING part

1 51204134222 GB/T5783 螺栓 M16×30 BOLT M16×30 3
2 51401130122 GB/T93 垫圈16 WASHER 16 3
3 30615100140 LG6230.15-02 压板 PRESS PLATE 1
4 30615000878 LG6235.51.04 销轴总成 PIN ASS’Y 1
5 30615100171 LG6230.15-03 调整垫圈 ADJUST SHIM 2
6 30615100617 LG6230.15-09 调整垫片 ADJUST SHIM 2
7 30615000223 LG6235.51.03 销轴总成 PIN ASS’Y 1
8 30612101184 LG6225L.12-03 垫板 SHIM PLATE 1
9 60980000065 VAW 防尘圈90×105×6 DUST SEAL 90×105×6 2
10 30615100260 LG6230.15-11 钢套 STEEL SLEEVE 2
11 30615100256 LG6230.15-04 动臂中部销轴 MIDDLE PIN, BOOM 1
12 30615100618 LG6230.15-05 调整垫圈 ADJUST SHIM 2
13 30615100176 LG6230.15-06 调整垫圈 ADJUST SHIM 2
14 30615100257 LG6230.15-07 隔套 SLEEVE 2
15 51307001322 GB/T6170 螺母 M16 NUT M16 4
16 51203133121 GB/T5782 螺栓 M16×150 BOLT M16×150 2
17 51204111122 GB/T5783 螺栓 M12×25 BOLT M12×25 4
18 51401110122 GB/T93 垫圈12 WASHER 12 2
19 30615100259 LG6230.15-10 灯架 BRACKET, LAMP 2
20 30615000193 LG6235.51.01 动臂焊合 BOOM ASS’Y 1
21 30615000219 LG6360.52.05 销轴总成 PIN ASS’Y. 1
22 51307000922 GB/T6170 螺母 M8 NUT M8 4
23 51203091921 GB/T5782 螺栓 M8×65 BOLT M8×65 2
24 30615000956 LG6235.51.05 拉杆 RUBBER SLEEVE D34 1
25 30615000220 LG6360.52.04 销轴总成 PIN ASS’Y. 1

1 30616000020 LG6230.16.01 斗杆 ARM 1
2 30615100618 LG6230.15-05 调整垫圈 ADJUST SHIM 6组
3 30615000012 LG6230.15.09 销轴总成 PIN ASS’Y 1
4 30612101184 LG6225L.12-03 垫板 SHIM PLATE 2
5 51204134222 GB/T5783 螺栓 M16×30 BOLT M16×30 2
6 51401130122 GB/T93 弹簧垫圈16 SPRING WASHER 16 2
7 30616000046 LG6230.16.05 销轴总成 PIN ASS’Y 1
8 51203133121 GB/T5782 螺栓 M16×150 BOLT M16×150 1
9 60980000683 671004 油杯 PT1/8 GREASE FITTING PT1/8 6
10 60980000065 VAW 09001 防尘圈Ф90×105×6 DUST SEAL Ф90×105×6 2
11 30616100164 LG6230.16-08 钢套 STEEL SLEEVE 2
12 30616000044 LG6230.16.03 销轴总成 PIN ASS’Y, LINK 1
13 30616000045 LG6230.16.04 销轴总成 PIN ASS’Y, LINK 1
14 30616100104 LG6230.16-07 右摇杆 LINK, R.H. 1
15 51203133021 GB/T5782 螺栓 M16×140 BOLT M16×140 1
16 30616000026 LG6230.16.02 左摇杆 LINK, L.H. 1
17 51307001322 GB/T6170 螺母 M16 NUT M16 4
18 60980000064 VAW 08002 防尘圈Ф80×95×6 DUST SEAL Ф80×95×6 8
19 30616100168 LG6230.16-04 钢套 STEEL SLEEVE 2
20 30616100169 LG6230.16-05 钢套 STEEL SLEEVE 2
21 30616100163 LG6230.16-06 连杆 LINK 1
22 30616100120 LG6230.16-01 调整垫圈 ADJUST SHIM 2组
23 60980000063 VAW 07002 防尘圈Ф70×85×6 DUST SEAL Ф70×85×6 2
24 30616100159 LG6230.16-02 钢套 STEEL SLEEVE 2
25 30616100160 LG6230.16-03 钢套 STEEL SLEEVE 2
26 30616100318 LG6360.16-05 堵头 PLUG 4

1 30616000099 LG6235.61.01 斗杆焊合 ARM WELDMENT 1
2 30615100618 LG6230.15-05 调整垫圈 ADJUST SHIM 2
3 30615000223 LG6235.51.03 销轴总成 PIN ASS’Y 1
4 30612101184 LG6225L.12-03 垫板 PRESS PLATE 1
5 51401130122 GB/T93 垫圈16 WASHER 16 1
6 51204134222 GB/T5783 螺栓 M16×30 BOLT M16×30 1
7 60980005319 PT1/8 180° 油杯 GREASE FITTING 5
8 30616100316 LG6235.61-03 钢套 STEEL SLEEVE 2
9 60980000065 VAW 防尘圈90×105×6 DUST SEAL 90×105×6 2
10 30615100306 LG6150.15-01 卡板 LOCK PLATE 2
11 51401110122 GB/T93 垫圈12 WASHER 12 2
12 51204111222 GB/T5783 螺栓 M12×30 BOLT M12×30 2
13 30616000170 LG6235.61.06 销轴3 PIN 3 1
14 30616100267 LG6150.16-07 调整垫片 ADJUST SHIM 6
15 60980000299 VAW 防尘圈65×80×6 DUST SEAL 65×80×6 4
16 30616100332 LG6235.61-01 钢套 STEEL SLEEVE 2
17 30616000132 LG6235.61.05 连杆 LINK 1
18 30616000098 LG6235.61.04 销轴2 1
19 30616100199 LG6150.16-01 左摇杆 LEFT LINK 1
20 60980000300 VAW 防尘圈60×75×6 DUST SEAL 60×75×6 6
21 30616100268 LG6150.16-08 钢套2 STEEL SLEEVE 2 2
22 30616000097 LG6235.61.03 销轴1 PIN 2 1
23 30616100477 LG6235.61-02 钢套 STEEL SLEEVE 4
24 30615100068 CDM606.15-09 垫圈 WASHER 2
25 30616000055 LG6150.16.08 右摇杆 RIGHT LINK 1
