Description

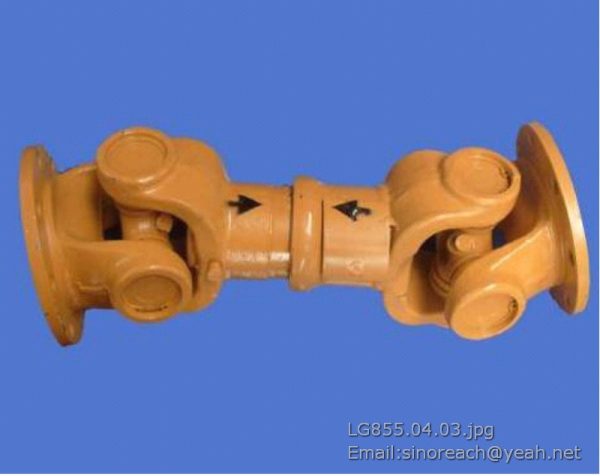

LG855.04.03 LG50F.04203A Intermediate/rear drive shaft assembly for lonking part
1 30617005016 LG6240D.17 铲斗本体 BODY, BUCKET 1
2 51307001722 GB/T6170 螺母 M24 NUT M24 10
3 60906000009 S/C-6230L 左边齿 LEFT SIDE CUTTER 1
4 51427170122 GB/T1230 垫圈 24 WASHER 24 10
5 51204172022 GB/T5782 螺栓 M24×70 BOLT M24×70 10
6 60906000011 S/C-6230R 右边齿 RIGHT SIDE CUTTER 1
7 60906000008 P-6230 齿套 TOOTH 5
8 60980000061 SPRING-6230 扣环 SNAP RING 5
9 60980000059 PIN-6230 销扣 FASTENER 5
10 30617000032 LG6230.17.02 销轴总成 PIN ASS’Y 2
11 51203133121 GB/T5782 螺栓 M16×150 BOLT M16×150 2
12 51307001322 GB/T6170 螺母 M16 NUT M16 4
13 56145029505 GB/T3452.1 O 形圈Ф125×13 O-RING Ф125×13 2
14 30615100618 LG6230.15-05 调整垫圈 ADJUST SHIM 2 组
15 56145029605 GB/T3452.1 O 形圈Ф140×13 O-RING Ф140×13 2
16 30615100617 LG6230.15-09 调整垫圈 ADJUST SHIM 2 组
1 51204111422 GB/T5783 螺栓 M12×40 BOLT M12×40 8
2 51401110122 GB/T93 垫圈12 WASHER 12 8
3 30617100645 LG6360L.17A-01 销轴 PIN 1
4 56145031305 GB/T3452.1 O 形圈115×7 O-RING 115×7 4
5 30617100647 LG6360L.17A-03 调整圈 REGULATING RING 2
6 30617100646 LG6360L.17A-02 调整垫片 ADJUST SHIM 4
7 30617100648 LG6360L.17A-04 定位座 LOCATING BUSH 2
8 51203132721 GB/T5782 螺栓 M16×110 BOLT M16×110 2
9 51307001322 GB/T6170 螺母 M16 NUT M16 6
10 51203133121 GB/T5782 螺栓 M16×150 BOLT M16×150 1
11 30617100155 LG6150.17-06 销轴 PIN 1
12 30617000230 LG6235L.17A.01 铲斗焊合 BODY, BUCKET 1
13 30617100000 LG6150.17-07 调整垫 ADJUST SHIM 2
14 51204171822 GB/T5783 螺栓 M24×60 BOLT M24×60 8
15 51421170121 GB/T97.1 垫圈24 WASHER 24 8
16 51307001722 GB/T6170 螺母 M24 NUT M24 8
17 60906000017 LG6150.17-01 左边齿 LEFT SIDE CUTTER 1
18 60906000019 LG6150.17-05 右边齿 RIGHT SIDE CUTTER 1
19 60905000422 6085-173 销 PIN 3
20 60980002351 6085-174 扣环 RETAINING RING 3
21 60906000334 6085-172 斗齿
1 60300001613 6ZWII20C1F-0002 回转体 STATOR 1
2 60300001614 6ZWII20C1F-0003 回转轴 RUNNER 1
3 60300001615 6ZWII20C1F-0004 盖 CAP 1
4 60300001616 6ZWII20C1F-0005 隔套 SLEEVE 1
5 60300001617 6ZWII20C1F-0006 垫片 GASKET 1
6 60300001618 6ZWII20C1F-0007 垫片 GASKET 1
7 60300001619 6ZWII20C1F-0008 旋转密封 SEAL RING 6
8 60300001620 6ZWII20C1F-0009 防尘圈 DUST SEAL 1
9 60300001621 6ZWII20C1F-0010 O 形圈 O-RING 2
10 60300001622 6ZWII20C1F-0011 O 形圈 O-RING 1
11 60300001623 6ZWII20C1F-0012 轴用弹性挡圈 SNAP RING 1
12 60300001624 6ZWII20C1F-0013 锥堵 PLUG 1
13 60300001625 6ZWII20C1F-0014 锥堵 PLUG 4
14 60300001626 6ZWII20C1F-0015 六角头螺栓 BOLT 4
15 60300001627 6ZWII20C1F-0016 标准型弹簧垫圈
