Description

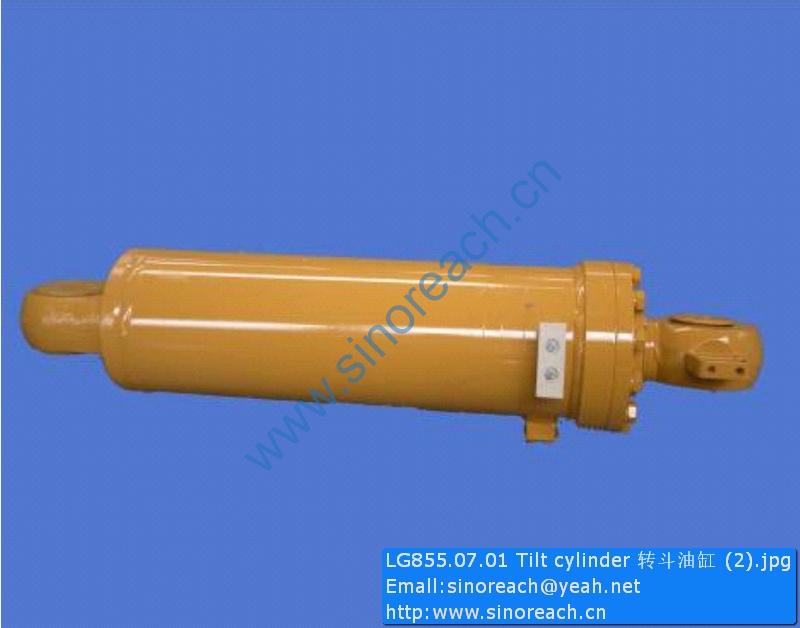

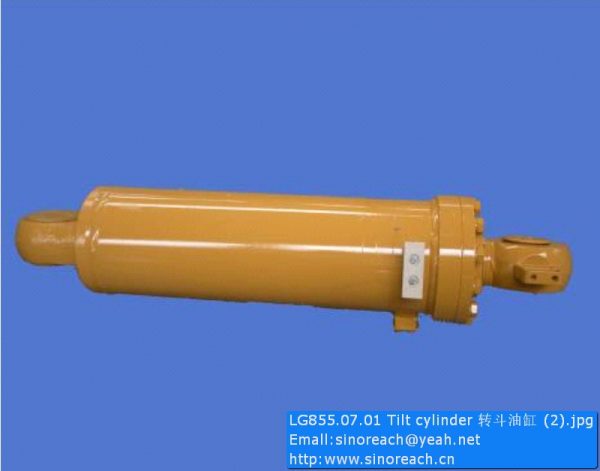

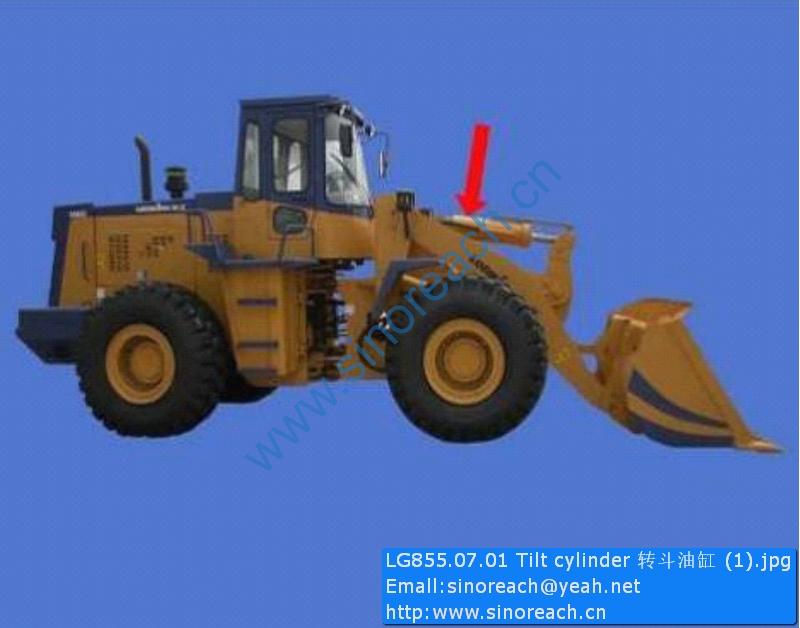

LG855.07.01 Tilt cylinder CDM855 CDM855E parts

1 Z60F.5-5 垫圈 Washer
2 Y2-20VNF-2A 螺栓 Bolt
3 B-J07940A-00001 油杯M10×1 Crease fitting
4 B-Q020710-00105 O形圈90×5.7 O-ring
5 Z60F.5-1 螺栓 Bolt
6 万向节总成 Cross shaft ass’y
7 2V7153 万向节总成 Cross shaft ass’y
8 ZL50A.4-2.1 花键轴 Sppine shaft
85Z.01.3.2-2 防尘盖 Dust cover
9 花键轴叉 Spline shaft

1 W-03-00080 前桥1452-4600 Front Axle
2 B-G057850-00046 螺栓M27×2×300-10.9ZnD Bolt
3 B-Q020490-00017 垫圈27 Washer
4 B-G061710-00020 螺母M27×2-10ZnD Nut

1 Z60H.6.1-1 轮辋体—轮辐组件 Rim-spoke ass’y
2 W-14-00013 轮胎23.5-25-16PR L-3 Tire
3 Z60H.6.1-3 挡座圈 Snap ring
4 Z60H.6.1-2 锁圈 Lock ring
