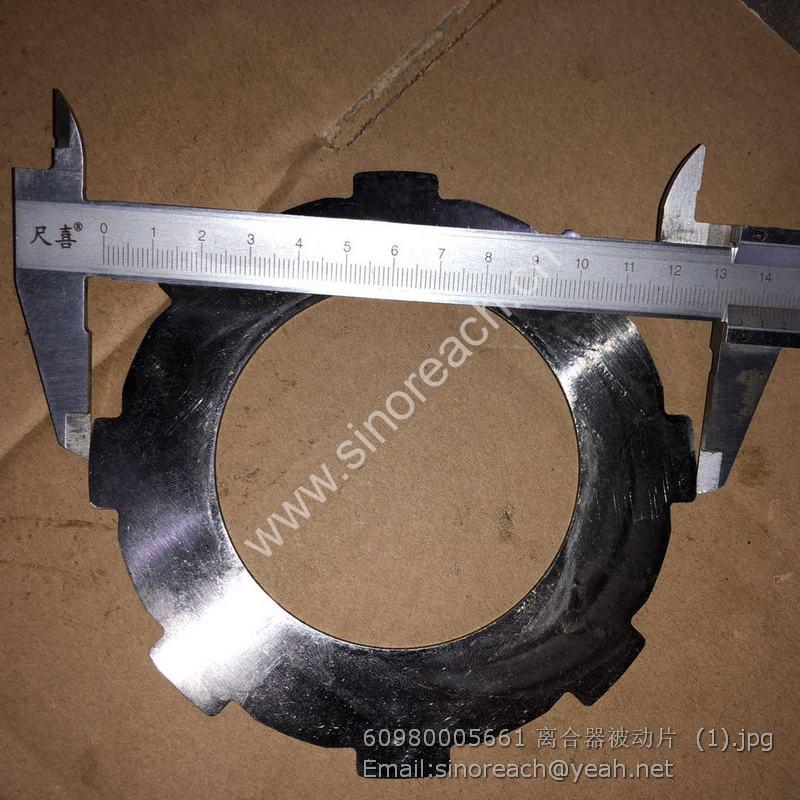

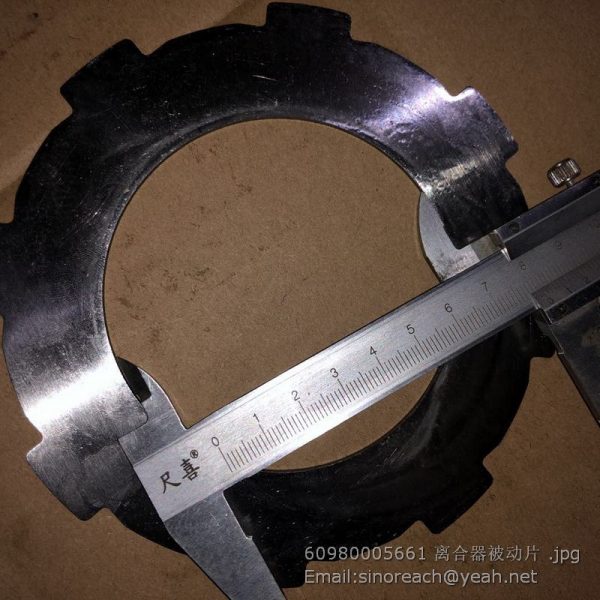

LONKING  Y30H-02008  YDS30.014  YQX30-1012A  Clutch driven sheet  60980005661

Category: Tag:

Description

LONKING  Y30H-02008  YDS30.014  YQX30-1012A  Clutch driven sheet  60980005661

1 LG30F.11.04 摇臂 Tilt arm 1 311400D
2 LG30F.11.03 动臂 Lift arm 1 311300D
3 LG30F.11.02 拉杆 Poll rod 1 311200D
4 LG30F.11.01 铲斗 Bucket 1 LG30F.11100A
5 GB/T5783 螺栓M12×35 Bolt M12×35 32
6 GB/T93 垫圈12 Washer 12 32
7 GB/T1152-79 油杯M10×1 Oil cup M10×1 8
8 LG30F.11.05 铲斗下销轴 Bucket lower pin 2 511004-005
9 LG843.11-007 动臂下轴套 Lift arm lower shaft sleeve 4 511003
10 LG843.11-005 摇臂支承轴套 Tilt arm support shaft sleeve 2 311011D
11 LG30F.11.06 摇臂支承轴 Tilt arm support shaft 1 311010D
12 LG843.11-004 摇臂隔离套 Tilt arm separating sleeve 1 311013D
13 LG30F.11-001 动臂缸上销轴 Lift cylinder upper pin 2 511006-07
14 LG853.10-012 套 Sleeve 2
15 LG30F.11.07 摇臂端销轴 Tilt arm end pin 3 311003D
16 LG843.11-002 拉杆轴套 Pull rod shaft sleeve 2 311009D
1 LG853.12-020 玻璃胶条（黑） Glass rubber sealing 13m
2 LG30F.12.01 驾驶室焊合 Cab weldment 1 LG30D.12100A
3 LG30F.12-017 线束护线套 Harness sleeve 2 LG30D.12128A
4 LG30F.12-002 装修顶板 Top board 1
5 LG30F.12-003 隔热填料1 Heat insulation stuffing 1 1
6 LG30F.12-004 隔热填料2 Heat insulation stuffing 2 2
7 LG30F.12-005 隔热填料3 Heat insulation stuffing 3 4
8 LG30F.12.02 左门总成 Left door assembly 1 LG30D.12200A
9 LG30F.12.03 右门总成 Right door assembly 1 LG30D.12200A
10 LG853.12.02 5寸旗铰 5-inch hinge 4
11 GB/T819.1 螺钉M5×12 Screw M5×12 40
12 LG853.12.08 倒车镜 Rearview mirror 2 ZQP-142
13 LG30F.12-006 透明胶条 Rubber sealing 2.2m LG30D.12004A
14 LG30F.12-007 前窗玻璃 Front windscreen 1 LG30D.12002A
15 LG853.12-002 玻璃压板 Glass press plate 8
16 GB/T818 螺钉M5×10 Screw M5×10 16
17 GB/T93 垫圈5 Washer 5 16
18 GB/T97.1 垫圈5 Washer 5 16
19 LG853.12.05 橡胶垫 Rubber pad 4
20 LG853.12-010 垫圈 Washer 4
21 LG853.12-011 销 Pin 4
22 LG853.12-012 垫板 Pad 16
23 GB/T889.2 尼龙自锁螺母M18×1.5 Nylon self-lock nut M18×1.5 4
