Description

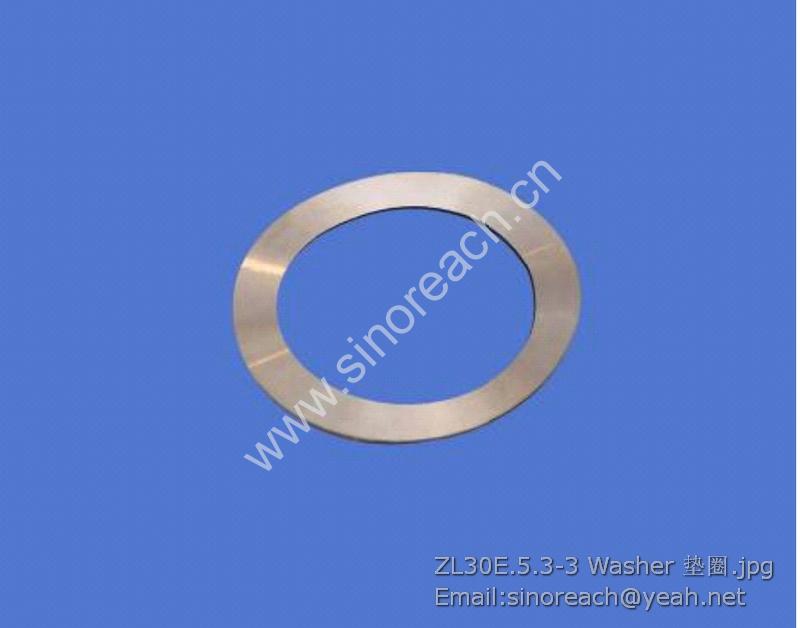

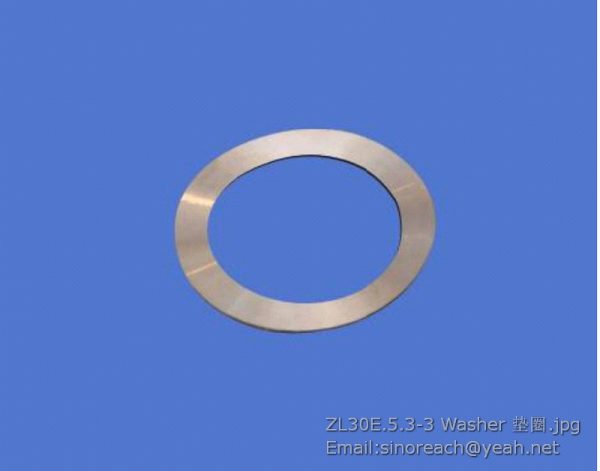

LONKING ZL30E.5.3-3 Washer
GB/T882 销轴B型12×35 Pin B type 12×35 2
GB/T97.1 垫圈12 Washer 12 2
GB/T91 开口销 4×28 Cotter pin 4×28 2
LG853.05.02-001 叉形接头 Knuckle connector 2 407610B
LG853.05.02-002 固定支板 Securing plate 1 407609C
LG853.05.02.01 操纵软轴 Control flexible shaft 2 407618-624B
GB/T5783 螺栓M10×30 Bolt M10×30 7
GB/T6170 螺母M10 Nut M10 3
GB/T882 销轴B型8×28 Pin B type 8×28 2
GB/T97.1 垫圈8 Washer 8 2
GB/T91 开口销3.2×30 Cotter pin 3.2×30 2
LG853.05.02-003 叉形接头 Knuckle connector 2 407607B
GB/T97.1 垫圈10 Washer 10 13
LG853.05.02.02 固定架 Securing bracket 1 407614-617B
LG853.05.02-004 铰轴座 Cardinal axis seat 2 407608B
LG853.05.02-005 铰轴套 Cardinal axis sleeve 2 407605B
GB/T5783 螺栓M10×35 Bolt M10×35 2
GB/T96 垫圈10 Washer 10 3
GB/T93 垫圈8 Washer 8 4
LG853.05.02-006 紧定螺钉 Setting screw 4 407606B
LG853.05.02-007 轴座 Shaft holder 1 407604B
LG853.05.02-008 挡圈 Spacer 2 407603B
GB/T93 垫圈10 Washer 10 13
GB/T5783 螺栓M10×20 Bolt M10×20 4
LG853.05.02-009 衬套 Bush 2 407601B
LG853.05.02-010 轴 Shaft 1 407602B
LG853.05.02.03 操纵杆总成 Control lever assembly 2 307611-611D
LG853.05.02-011 方胶木球M12×32 Knob M12×32 2
LG30F.06Ⅲ.02 液压转向机 Steering gear 1 306100D
GB/T5783 螺栓M10×30 Bolt M10×30 8
GB/T93 垫圈10 Washer 10 12
GB/T97.1 垫圈10 Washer 10 9
LG30F.06Ι.01 转向机进出油钢管 Steering gear oil-inlet/outlet pipe 2 306035-035D（短）
LG30F.06Ι.06 转向机AB口钢管 Steering gear AB port pipe 2 306035-035D（长）
JB1002-77 垫圈20 Washer 20 4
90H-H/16/16-Ⅱ-L650 单稳阀出油胶管 Single flow stabilizer valve outlet hose 2
LG30F.06Ι-002 单稳阀出油接头体 Single flow stabilizer valve outlet adapter 2 306017D
JB1002-77 垫圈24 Washer 24 2
LG30F.06.04 单稳阀 Single flow stabilizer valve 1 FLD-F30-W
90F-H/19/18-Ⅱ-L405 转向泵出油胶管 Steering pump oil-outlet hose 1
GB/T93 垫圈8 Washer 8 8
GB/T5783 螺栓M8×40 Bolt M8×40 8
GB/T3452.1-1992 O形圈25×3.55 O-ring 25×3.55 2
LG816.07-001 压板 Press plate 2 306001D
LG30F.06Ι-004 单稳阀支座 Single flow stabilizer valve holder 1 306015-015D
JB1002-77 垫圈27 Washer 27 1
LG30F.06Ι-005 单稳阀进油接头体 Single flow stabilizer valve inlet adapter 1 306016D
H-H/16/16-Ⅱ-L880 转向器至转向油缸胶管 Hose from steering gear to steering cylinder 4
LG30F.06Ι.07 后车架转向过渡钢管 Rear frame turning transit pipe 2 LG30F.06001-001A
GB/T5782 螺栓M10×70 Bolt M10×70 3
GB/T6170 螺母M10 Nut M10 3
