Description

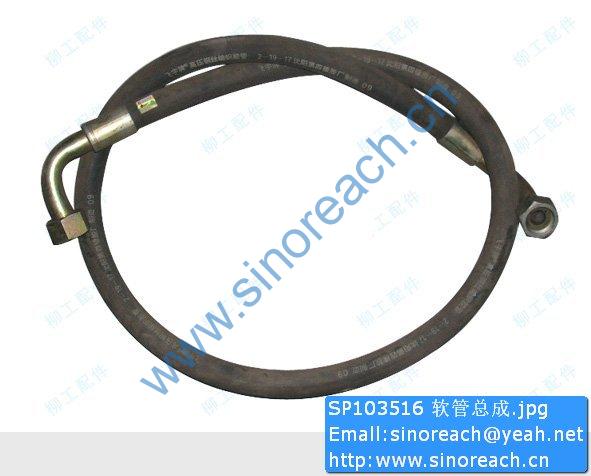

SP103516 hose assembly for LIUGONG part

B00001308 SP121564 Flat washer 8 D33-000-151
D33-103-01+A SP101547 Left front support 1 D33-000-151
D33-104-03+A SP101548 Rear support 2 D33-000-151
B00002050 SP121639 Hexagon flange bolt 8 D33-000-151
B00002078 SP121646 Hexagon flange bolt 4 D33-000-151
XSG-08V-000+A Muffler assembly 1 D6114ZG1B+DB0839-ZJ
D00-000-30+A variant matching components 1 D6114ZG1B+DB0839-ZJ
D00-154-04A+B SP121775 Heat insulation board 1 D00-000-30
B00001999 SP121625 Hexagon flange bolt 6 D00-000-30
B00001993 Hexagon flange bolt 4 D00-000-30
D00-173-01+A SP121781 Exhaust elbow gasket 2 D00-000-30
B00001586 SP121595 hose clamp 2 D00-000-30
D00-005-32A+D SP121751 Air filter bracket welding parts 1 D00-000-30
D00-126-18A+C Support rib 1 D00-005-32A
D00-127-32A+B Support rib 1 D00-005-32A
D00-125-13+B Air filter support plate 1 D00-005-32A
D00-129-14+A Support rib 1 D00-005-32A
D00-129-34+A Support rib 2 D00-005-32A
B00000846 SP121530 Hexagon flange nut 8 D00-000-30
D00-006-01+A SP101255 dipstick assembly 1 D00-000-30
D00-007-01+A Dipstick handle part 1 D00-006-01
D00-133-01+A Dipstick cover 1 D00-007-01
D00-132-01+A dipstick handle 1 D00-007-01
D00-134-01A+A SP111326 Oil dipstick seal 1 D00-006-01
D00-131-01+A scale 1 D00-006-01
B00000772 SP121522 I type hexagon nut 2 D00-000-30
B00001856 SP121619 Copper washer 1 D00-000-30
B00000900 Hexagon socket head screw 4 D00-000-30
D12-306-03+A bracket 1 D00-000-30
D00-108-24+A SP112147 Crankshaft front pulley 1 D00-000-30
B00002179 SP121677 Hinge bolt 4 D00-000-30
B00002137 SP121660 Hexagon flange bolt 8 D00-000-30
D00-145-01+A SP101263 Air filter indicator connector 1 D00-000-30
B00002132 SP121656 Hexagon flange bolt 3 D00-000-30
D00-206-07+A SP121788 Rubber connecting pipe 1 D00-000-30
D00-146-01+A SP101264 Air intake elbow gasket 1 D00-000-30
D00-135-01+A SP111327 dipstick takeover 1 D00-000-30
B00002134 SP121658 Hexagon flange bolt 4 D00-000-30
D00-117-10B+A intake elbow 1 D00-000-30
D16A-128-06+A SP121984 Fan pad 1 D00-000-30
D00-241-01+A SP111299 Fuel return pipe 1 D00-000-30
D00-240-07+A SP121794 oil feed pump oil inlet pipe 1 D00-000-30
D00-228-01+A SP121790 Joystick bracket 1 D00-000-30
D00-118-40+A Exhaust elbow 1 D00-000-30
D00-012-08+A brace welding parts 1 D00-000-30
D00-034-01+A SP101257 Oil-water separator assembly parts 1 D00-000-30
761G-26-062+A SP106298 Low pressure oil pipe 1 D00-000-30
D24A-000-30A+E Water pipe and water filter assembly 1 D6114ZG1B+DB0839-ZJ
D24A-115-02+C SP101501 Straight pipe joint 2 D24A-000-30A
D24A-005-30+A SP101495 “DCA4” water filter component 1 D24A-000-30A
D22-105-01+A SP101492 Socket pin 2 D24A-000-30A
B00001575 SP121592 hose clamp 2 D24A-000-30A
D24A-112-30A+B Water filter fixing plate 1 D24A-000-30A
D24A-110-30A+A SP101497 Outlet pipe 1 D24A-000-30A
B00001563 SP121586 Hose clamp 4 D24A-000-30A
D02A-164-01+B Hexagon socket screw plug (Z1/2) 1 D24A-000-30A
D24A-116-32+A SP101503 Water filter connecting hose 1 D24A-000-30A
D24A-006-01+A Water filter cover part 1 D24A-000-30A
D24A-113-01+C Water filter cover 1 D24A-006-01
D24A-114-01+A SP101500 water filter connector 1 D24A-006-01
D24A-118-01+A SP101504 Shut-off valve 2 D24A-006-01
B00002167 SP121674 Hexagon flange bolt 2 D24A-000-30A
D24A-135-02+A SP122023 sheath spring 1 D24A-000-30A
D24A-116-37+A SP122020 Water filter inlet hose 1 D24A-000-30A
B00002139 SP121662 Hexagon flange bolt 4 D24A-000-30A
D24A-107-02A+A SP111400 Rubber water inlet elbow 1 D24A-000-30A
D03-000-12+A Oil pan assembly 1 D6114ZG1B+DB0839-ZJ
B00001549 Composite sealing hard washer 1 D03-000-12
B00002132 SP121656 Hexagon flange bolt 32 D03-000-12
B00001551 SP111424 Composite sealing hard washer 1 D03-000-12
B00001548 SP121580 Composite sealing hard washer 1 D03-000-12
B00001730 SP121605 Hexagon head plug 1 D03-000-12
B00001728 SP121603 Hexagon head plug 1 D03-000-12
D03-001-12+A Welded parts of oil pan 1 D03-000-12
D03-303-01+B support frame 1 D03-001-12
D03-105-03+A Oil temperature gauge installation joint 1 D03-001-12
D03-300-02A+B Oil return pipe 1 D03-001-12
D03-101-12+A Oil pan 1 D03-001-12
D03-102-01+A Heater installation connector 1 D03-001-12
D03-103-01+A Oil drain connector 1 D03-001-12
D03-109-33+A Oil return joint 1 D03-001-12
D13-000-95+B Exhaust pipe assembly 1 D6114ZG1B+DB0839-ZJ
B00000318 Hex nut 4 D13-000-95
D13-304-01+B Turbocharger interface nut 4 D13-000-95
D13-102-30B+B SP101445 Turbine inlet gasket 1 D13-000-95
D13-303-01+A SP111451 Stud bolt 4 D13-000-95
D13-114-05+A Turbine outlet cover 1 D13-000-95
D02A-166-01+B SP111348 Screw plug (Z1/8) 2 D13-000-95
D13-001-01+B clamp part 1 D13-000-95
D13-103-01+A SP111389 Stud bolt 4 D13-000-95
D13-101-30B+B SP121969 Exhaust pipe 1 D13-000-95
D13-113-02+A SP111200 Turbine outlet cover gasket 1 D13-000-95
D20-000-30+C Fresh water pump assembly 1 D6114ZG1B+DB0839-ZJ
D20-102-30+A Pulley 1 D20-000-30
D20-003-01+A Water seal 1 D20-000-30
D20-002-30+A Impeller welding parts 1 D20-000-30
D20-104-01+A Impeller cover 1 D20-002-30
D20-103-30+A Impeller 1 D20-002-30
D02A-178-01+A Drain switch 1 D20-000-30
D20-004-30A+A Water pump bearing 1 D20-000-30
D20-101-30+D Water pump body 1 D20-000-30
D02C-000-33+C transfer case assembly 1 D6114ZG1B+DB0839-ZJ
D02C-143-01+A SP121891 pointer 1 D02C-000-33
D02A-118-02B+B SP101287 crankshaft rear end oil seal 1 D02C-000-33
D02A-161-30+A SP121827 Bulkhead (φ20) 1 D02C-000-33
D02A-163-01+B SP111347 Hexagon socket screw plug (Z3/4) 1 D02C-000-33
D02C-001-31+B Idler gear assembly part 1 D02C-000-33
D02C-128-01+A SP106378 Idler gear plate 1 D02C-001-31
B00001057 SP121544 Circlip for hole-B type 1 D02C-001-31
D02C-117-31A+A SP121875 Idler gear 1 D02C-001-31
D02C-118-31A+A SP121876 Idler shaft 1 D02C-001-31
D02C-130-01+A SP121885 Locking washer 1 D02C-001-31
D02C-154-01+A SP105835 Double row tapered roller bearing 1 D02C-001-31
B00000509 SP121506 Hexagon head bolt 2 D02C-001-31
D02C-155-01+A SP121895 retaining ring 1 D02C-001-31
D02A-115-30+B Rear cover 1 D02C-000-33
D02C-003-31+A Driving gear assembly parts 1 D02C-000-33
D04-133-01+B Bulkhead (φ58) 1 D02C-003-31
B00000103 SP121488 cylindrical pin 1 D02C-003-31
D02C-116-31+A SP106374 Driving gear 1 D02C-003-31
D02C-004-01+A SP121861 Welding parts for return pipe 1 D02C-000-33
B00002202 spherical pipe connection 1 D02C-004-01
D02C-136-01+A Oil return pipe 1 D02C-004-01
B00002188 Pipe joint body 1 D02C-004-01
B00002207 Jacket nut 1 D02C-004-01
D02C-102-01+A SP111358 Starter motor coupling flange 1 D02C-000-33
D02C-105-01+A SP101321 Cover plate gasket 1 D02C-000-33
D02C-108-01+B SP111361 Starter motor gasket 1 D02C-000-33
D02C-110-01+A SP111363 Twelve-point head bolt 3 D02C-000-33
D02C-114-30+A SP121873 transition plate 1 D02C-000-33
D02C-115-31+A SP121874 transfer case housing 1 D02C-000-33
D02C-119-31+A SP121878 Working pump drive gear 1 D02C-000-33
D02C-121-30+B large cover 1 D02C-000-33
D02C-124-30+A SP121880 Front end cover 1 D02C-000-33
D02C-125-32+A SP121882 Rear cover cover 1 D02C-000-33
D02C-139-01+A SP121886 Idler shaft bolt 3 D02C-000-33
D02C-145-01+A SP121892 oil return joint 1 D02C-000-33
B00000261 SP121497 Rolling bearing 2 D02C-000-33
B00000793 Type I Hexagon Nut 1 D02C-000-33
B00001825 SP121617 Copper washer 2 D02C-000-33
B00001052 SP121543 Circlip for hole-B type 1 D02C-000-33
B00001728 SP121603 Hexagon head plug 1 D02C-000-33
B00002179 SP121677 Hinge bolt 1 D02C-000-33
B00001376 SP121570 O-shaped rubber sealing ring 1 D02C-000-33
