Description

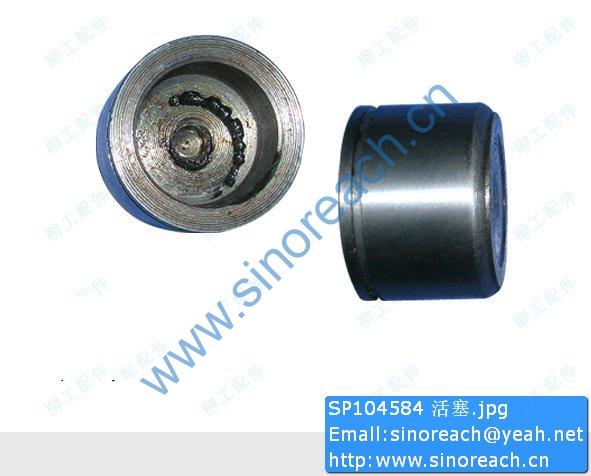

SP104584 Piston for LIUGONG spare parts

D26-121-01+A SP111416 Hinge screw 1 D26-000-119
D26-005-30B+A SP111315 high pressure oil pipe parts (fifth cylinder) 1 D26-000-119
D26-101-30B+A High pressure oil pipe 1 D26-005-30B
D26-103-01+A Sheath 2 D26-005-30B
D26-112-01+A union nut 2 D26-005-30B
D26-125-01+A High pressure oil pipe antifouling cap 2 D26-005-30B
D26-105-01+B SP111410 Upper clip 4 D26-000-119
D26-035-01+A SP111459 Oil pipe fixing bracket welding parts 2 D26-000-119
B00000840 Hexagon flange nut 2 D26-035-01
D26-113-30+A SP111461 Oil pipe fixing bracket 1 D26-035-01
D26-002-30B+A SP111312 high pressure oil pipe components (second cylinder) 1 D26-000-119
D26-101-30B+A High pressure oil pipe 1 D26-002-30B
D26-103-01+A Sheath 2 D26-002-30B
D26-112-01+A union nut 2 D26-002-30B
D26-125-01+A High pressure oil pipe anti-fouling cap 2 D26-002-30B
D26-115-31+A SP101538 Oil delivery pump oil outlet pipe 1 D26-000-119
D26-006-30B+A SP111316 high pressure oil pipe parts (sixth cylinder) 1 D26-000-119
D26-101-30B+A High pressure oil pipe 1 D26-006-30B
D26-103-01+A Sheath 2 D26-006-30B
D26-112-01+A Union nut 2 D26-006-30B
D26-125-01+A High pressure oil pipe anti-fouling cap 2 D26-006-30B
B00001546 SP121578 Composite hard gasket 4 D26-000-119
D26-104-01+A SP111409 Clip gasket 8 D26-000-119
B00002045 Hexagon flange bolt 1 D26-000-119
B00002111 SP121649 Hexagon flange bolt 1 D26-000-119
B00001555 SP111425 Composite sealing hard washer 2 D26-000-119
B00001724 SP121600 Hexagon head plug 1 D26-000-119
D26-030-01+F Welding parts of fuel injection pump return pipe 1 D26-000-119
D26-118-01A+A pipe joint 1 D26-030-01
D26-120-30+B Fuel injection pump return pipe 1 D26-030-01
D26-124-01B+D pipe joint 1 D26-030-01
D26-007-01+A SP101529 pipe joint welding parts 1 D26-000-119
B00002188 Pipe joint body 1 D26-007-01
B00001464 Bush 1 D26-007-01
D26-121-30+B SP111417 Hinge screw 1 D26-000-119
D26-004-46+B SP122043 high pressure oil pipe components (fourth cylinder) 1 D26-000-119
B00002134 SP121658 Hexagon flange bolt 6 D26-000-119
B00002185 SP121678 Hinge bolt 1 D26-000-119
B00001293 Flat washer 2 D26-000-119
D26-104-02+A SP122047 Clip liner 2 D26-000-119
B00000840 Hexagon flange nut 1 D26-000-119
B00001296 Flat washer 10 D26-000-119
B00001251 SP121555 Spring washer 10 D26-000-119
D26-117-38+D clamp band 1 D26-000-119
D26-008-30C+A 40C2077 Return pipe assembly 1 D26-000-119
D18-000-130+B SP121998 oil cooler assembly 1 D6114ZG9B+DB0790-ZJ
D18-101-30A+C SP122001 Oil inlet gasket 1 D18-000-130
D18-002-30+A SP101474 Oil cooler spiral part 1 D18-000-130
D18-300-01+A Stud bolt 3 D18-002-30
D18-300-02+A Stud bolt 1 D18-002-30
D18-001-30+A Oil cooler parts 1 D18-002-30
D18-102-30A+C SP122003 Outlet gasket 1 D18-000-130
D17-105-02+A SP101469 Filter element connector 1 D18-000-130
B00000846 SP121530 Hexagon flange nut 4 D18-000-130
D17-030-01A+B Oil filter seat assembly parts 1 D18-000-130
D33-000-181+A Diesel engine support assembly 1 D6114ZG9B+DB0790-ZJ
D33-102-01+A SP101546 Right front support 1 D33-000-181
D33-001-02+A Front support assembly part 1 D33-000-181
D33-002-01B+A SP122063 Rubber shock absorber component 1 D33-001-02
D33-101-03+A SP122064 Front support 1 D33-001-02
D33-103-01+A SP101547 Left front support 1 D33-000-181
B00000445 Hexagon head bolt 4 D33-000-181
B00000541 Hexagon head bolt 16 D33-000-181
D33-104-01+B Rear support 2 D33-000-181
B00001278 SP121559 Flat washer 20 D33-000-181
D16A-000-58+A Front-end drive mechanism assembly 1 D6114ZG9B+DB0790-ZJ
D16A-010-01A+C SP100601 fan bearing seat press-fitting parts 1 D16A-000-58
D16A-138-01+B Fan drive flange 1 D16A-010-01A
D16A-108-04+B Fan bearing seat 1 D16A-010-01A
D16A-137-01A+C Fan shaft bearing 1 D16A-010-01A
D16A-107-17+A SP111452 fan belt wheel 1 D16A-000-58
B00002147 SP121666 Hexagon flange bolt 4 D16A-000-58
B00002031 SP121634 Hexagon flange bolt 1 D16A-000-58
D16A-136-04+A SP111456 Output pulley 1 D16A-000-58
B00002050 SP121639 Hexagon flange bolt 4 D16A-000-58
D16A-106-39+A SP121979 fan tape 1 D16A-000-58
D16A-003-03+C 40C2099 Tensioner part 1 D16A-000-58
D16A-121-39+C Tensioner fixing plate 1 D16A-000-58
B00000631 SP121516 Hexagon head bolt 2 D16A-000-58
D16A-128-05+A SP121983 Fan pad 1 D16A-000-58
B00000903 SP121531 Hexagon socket head screw 4 D16A-000-58
D24C-000-112+B supporting water pipeline assembly 1 D6114ZG9B+DB0790-ZJ
D24B-113-01+B SP111406 clamp band 1 D24C-000-112
B00001575 SP121592 hose clamp 2 D24C-000-112
B00001563 SP121586 Hose clamp 2 D24C-000-112
D24C-003-112+B Water pump inlet pipe welding parts 1 D24C-000-112
B00001996 SP121623 Hexagon flange bolt 1 D24C-000-112
B00002263 Rubber water pipe 1 D24C-000-112
D38-000-681+A SP105608 TD07S supercharger assembly 1 D6114ZG9B+DB0790-ZJ
D17-002-02+B SP101464 oil filter part 1 D6114ZG9B+DB0790-ZJ
