Description

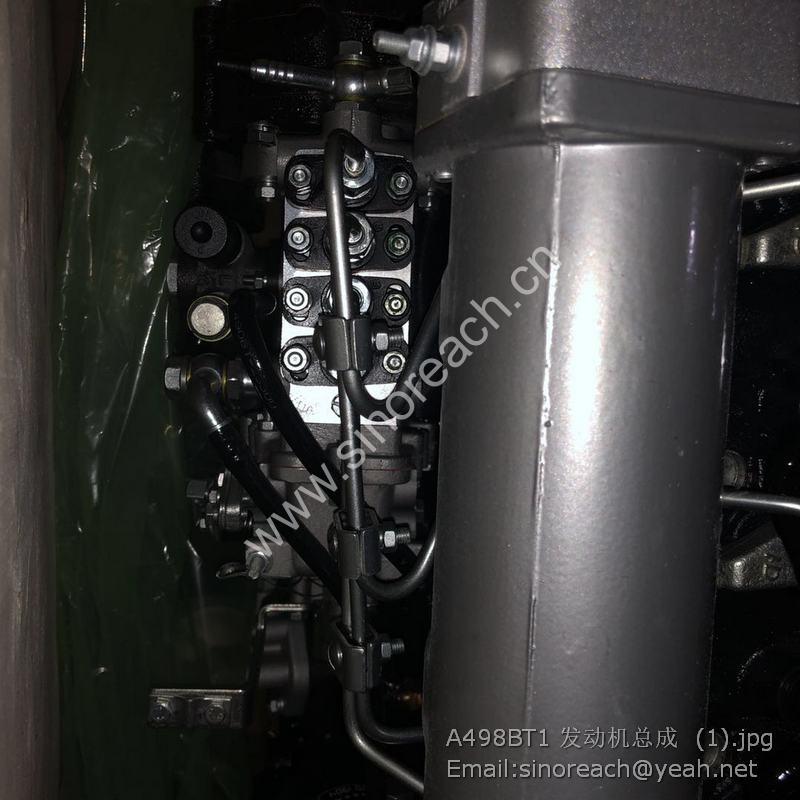

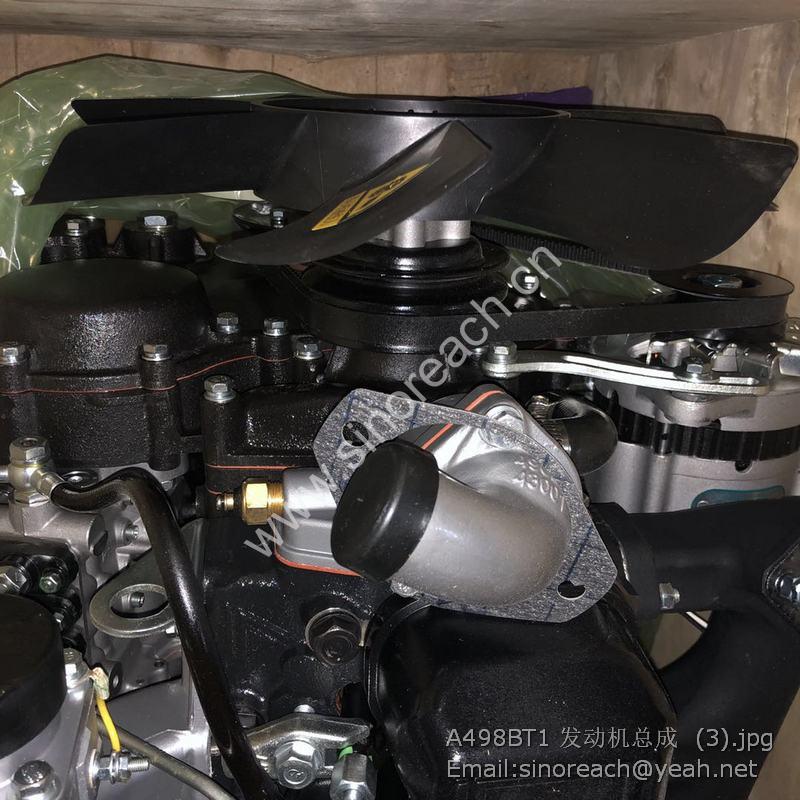

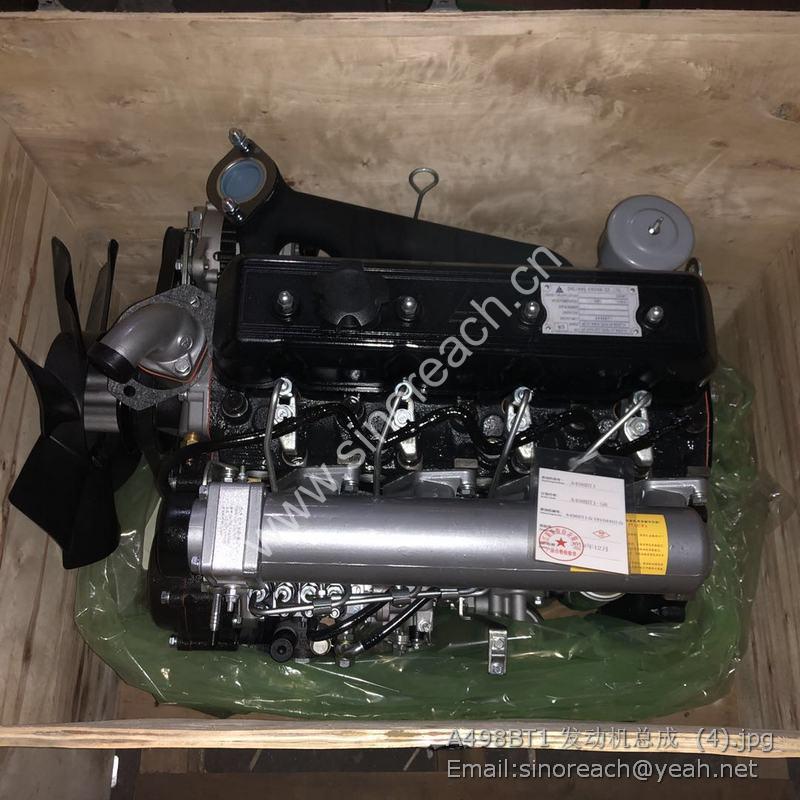

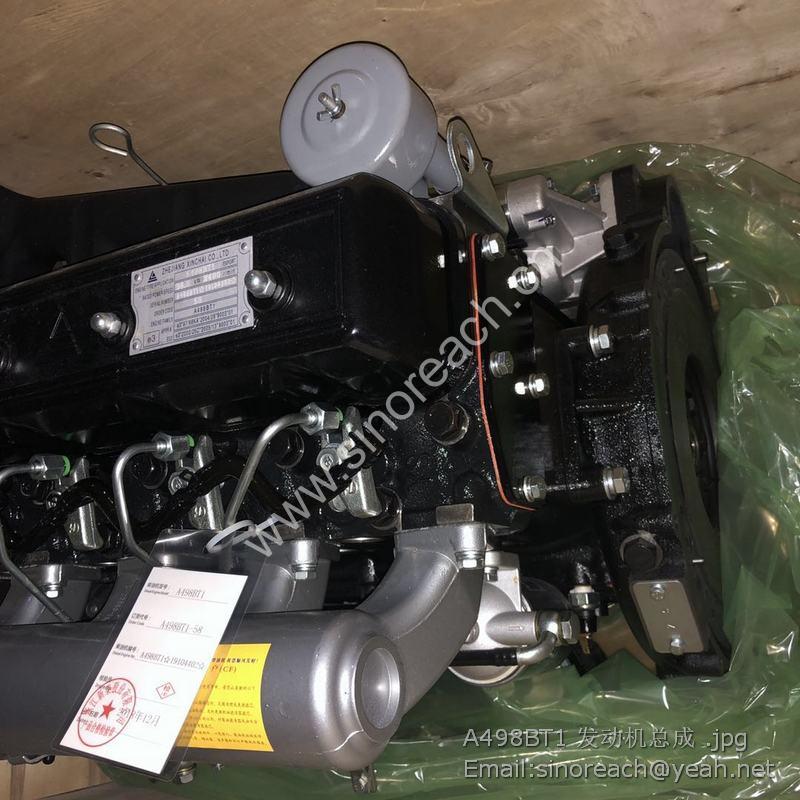

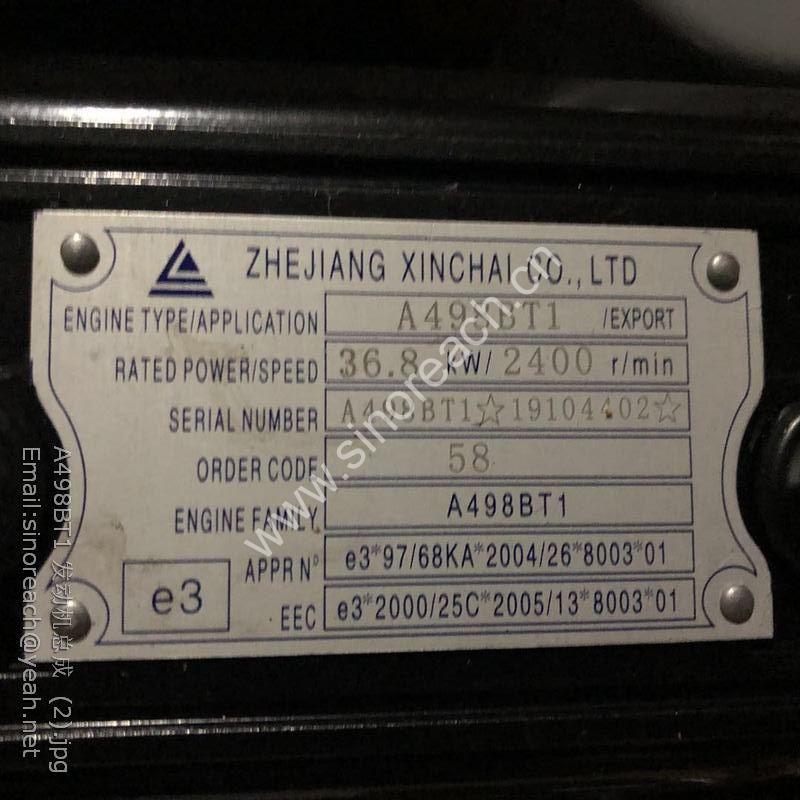

XINCHAI A498BT1 Engine comple assy
| 51421120115 | 垫圈14 | Washer 14 | 12 | GB/T97.1 | 51307000919 | 螺母M8 | Nut M8 | 8 | 4 | GB/T6170 | |
| 51401120107 | 垫圈14 | Washer 14 | 12 | GB/T93 | 51401090107 | 垫圈8 | Washer 8 | 4 | GB/T93 | ||
| 51204121414 | 螺栓M14×40 | Bolt M14×40 | 8.8 | 12 | GB/T5783 | 51421090115 | 垫圈8 | Washer 8 | 8 | GB/T97.1 | |
| 51421170115 | 垫圈24 | Washer 24 | 2 | GB/T97.1 | 51204091314 | 螺栓M8×35 | Bolt M8×35 | 8.8 | 4 | GB/T5783 | |
| 51204171814 | 螺栓M24×60 | Bolt M24×60 | 8.8 | 2 | GB/T5783 | 60202010012 | 双变滤油器 | Oil filter of transmission and torque converter | 1 | ||
| 30801000313 | 油门操纵总成 | Throttle control assembly | 1 | 5 | 17601001238 | 过渡接头 | Transition connector | 2 | |||
| 60101000046 | 柴油机总成 | Diesel engine assembly | 1 | 60202000002 | 变矩器总成 | Torque converter assembly | 1 | ||||
| 17101000449 | 散热器总成 | Radiator assembly | 1 | 51401100107 | 垫圈10 | Washer 10 | 10 | GB/T93 | |||
| 51204111514 | 螺栓M12×45 | Bolt M12×45 | 8.8 | 4 | GB/T5783 | 51139220405 | 螺钉M10×30 | Screw M10×30 | 8.8 | 2 | GB/T70.1 |
| 51401110107 | 垫圈12 | Washer 12 | 4 | GB/T93 | 60301000025 | 变速泵 | Speed-variable pump | 1 | |||
| 51421110115 | 垫圈12 | Washer 12 | 4 | GB/T97.1 | 17601001627 | 过渡接头 | Transition connector | 1 | |||
| 30801100090 | 水管接头Ⅰ | Water pipe joint Ⅰ | 1 | 17601001626 | 过渡接头 | Transition connector | 1 | ||||
| 51204161714 | 螺栓M22×55 | Bolt M22×55 | 8.8 | 2 | GB/T5783 | 17405000029 | 上传动轴总成 | Upper drive shaft assembly | 1 | 11 | |
| 51421160115 | 垫圈22 | Washer 22 | 2 | GB/T97.1 | 51342000419 | 螺母M12×1.5 | Nut M12×1.5 | 8 | 8 | GB/T889.2 | |
| 60101100717 | 发动机前减震器 | Front shock absorber of engine | 2 | 51207111314 | 螺栓M12×1.5×35 | Bolt M12×1.5×35 | 8.8 | 4 | GB/T5786 | ||
| 60101100716 | 发动机后减震器 | Rear shock absorber of engine | 2 | 17601001322 | 过渡接头 | Transition connector | 3 | ||||
| 17101000436 | 散热器总成 | Radiator assembly | 1 | 选配 Optional | 56148112703 | 垫圈27 | Washer 27 | 4 | JB/T1002 | ||
| 17272011474 | 胶管总成 | Hose assembly | 1 | 选配 Optional | 56171000301 | 喉箍d32(20~32) | Hose clamps d32(20~32) | 4 | JB/T8870 |
